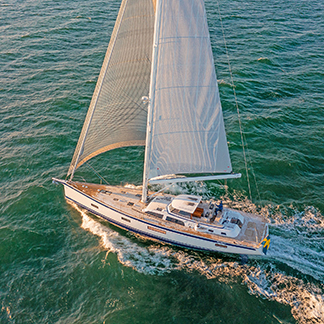

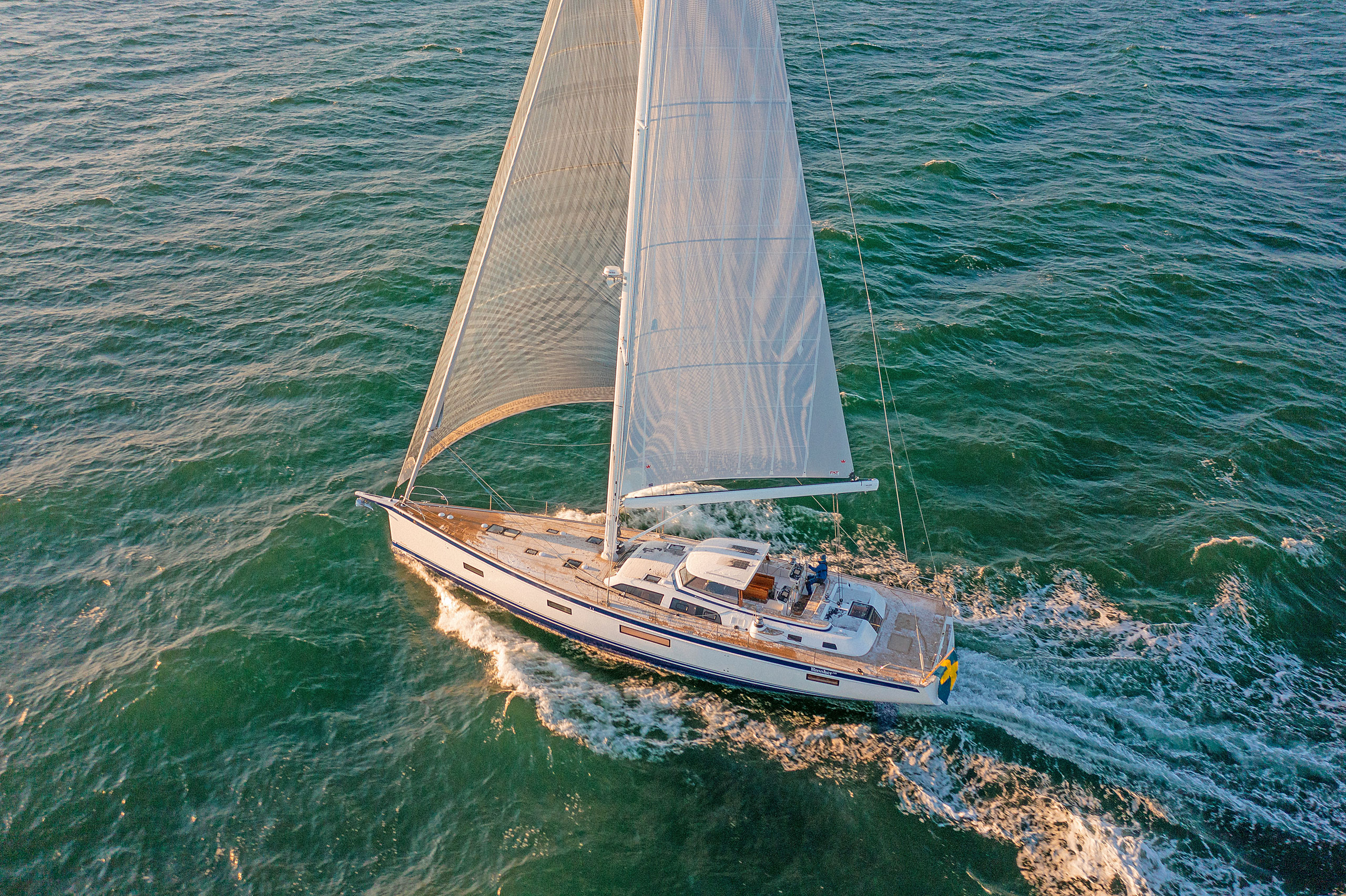

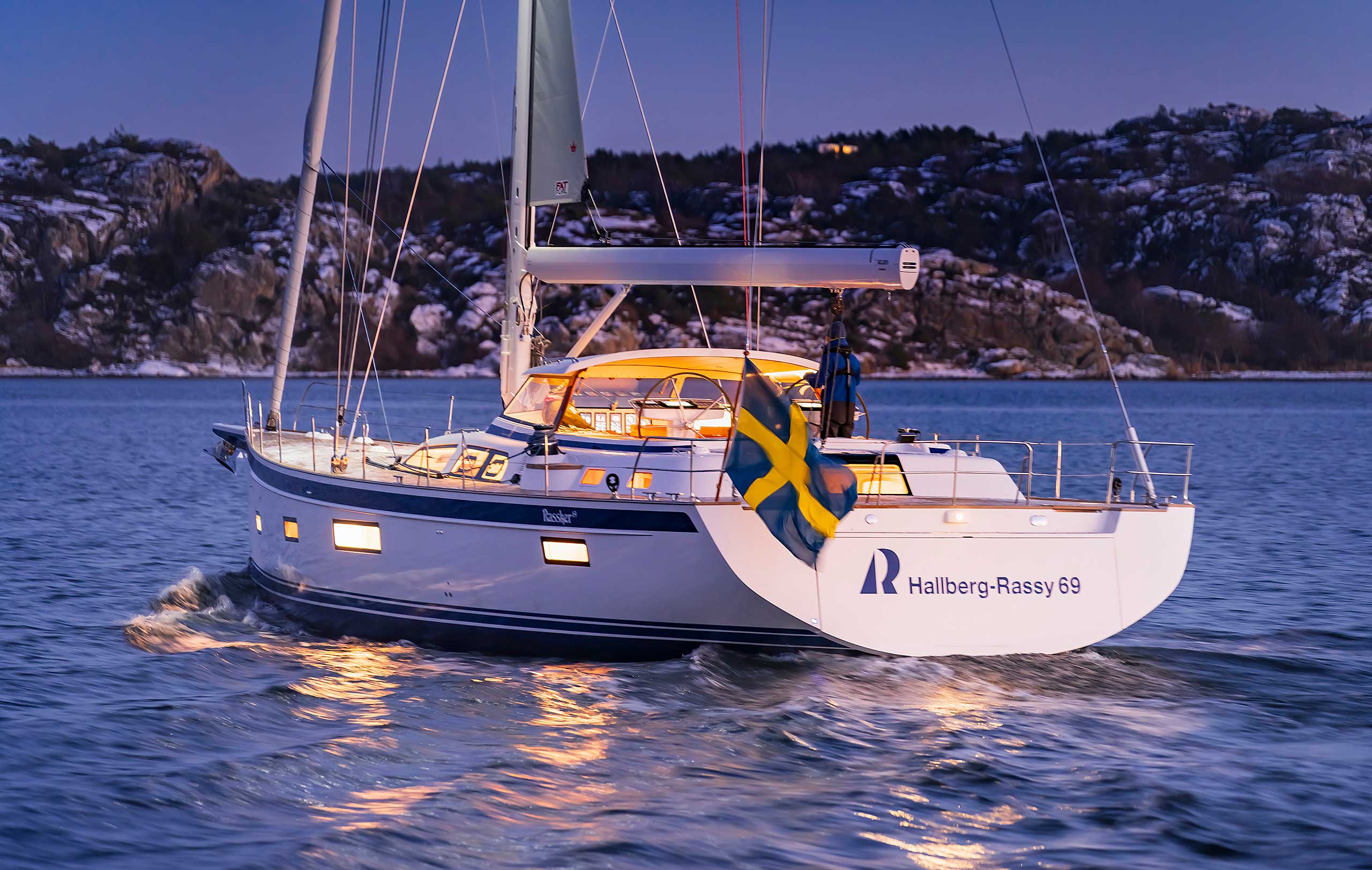

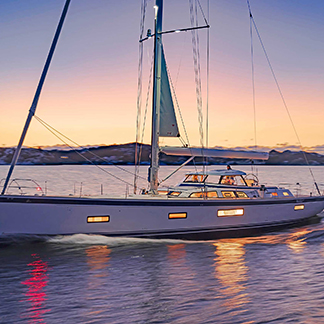

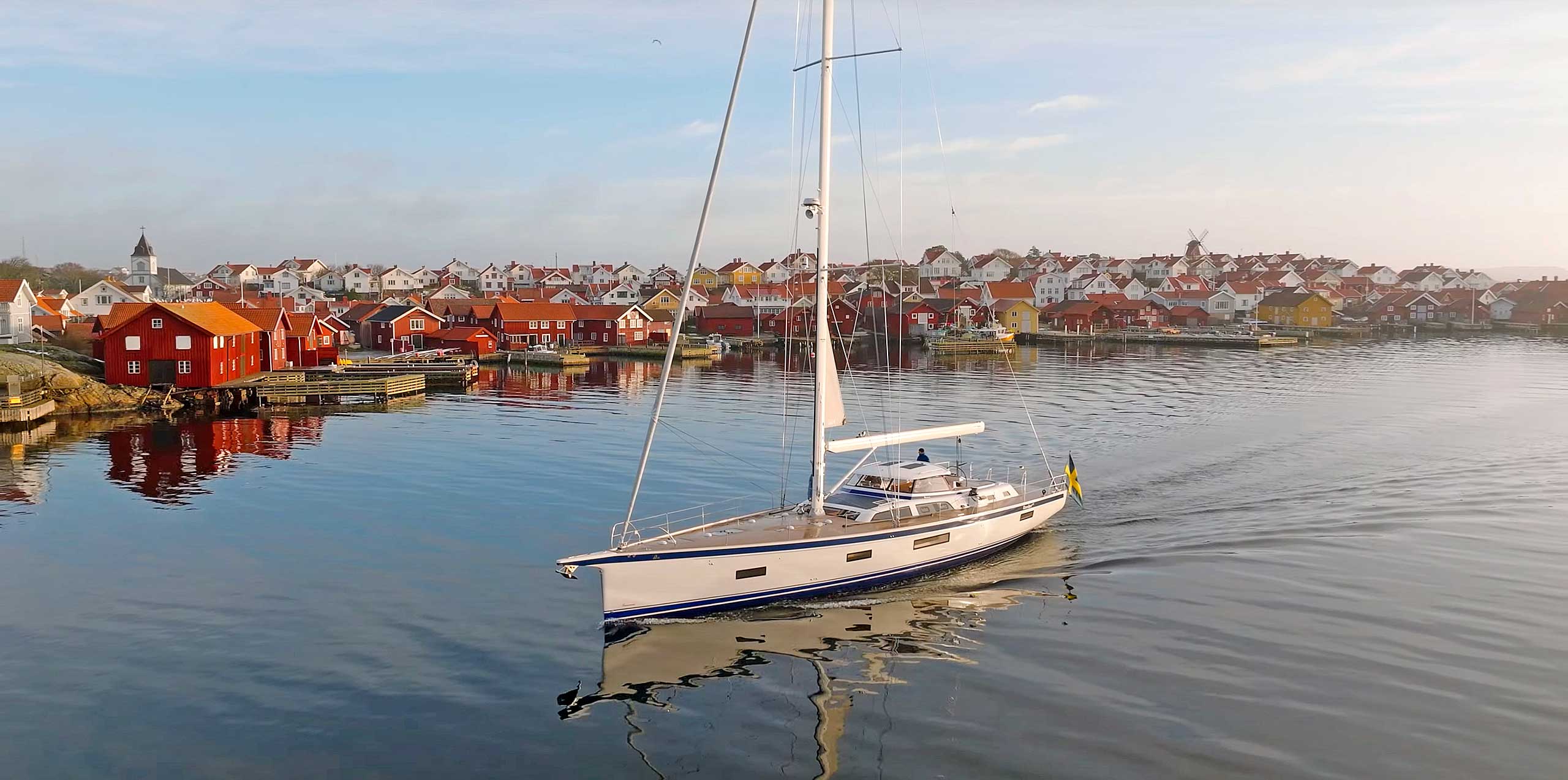

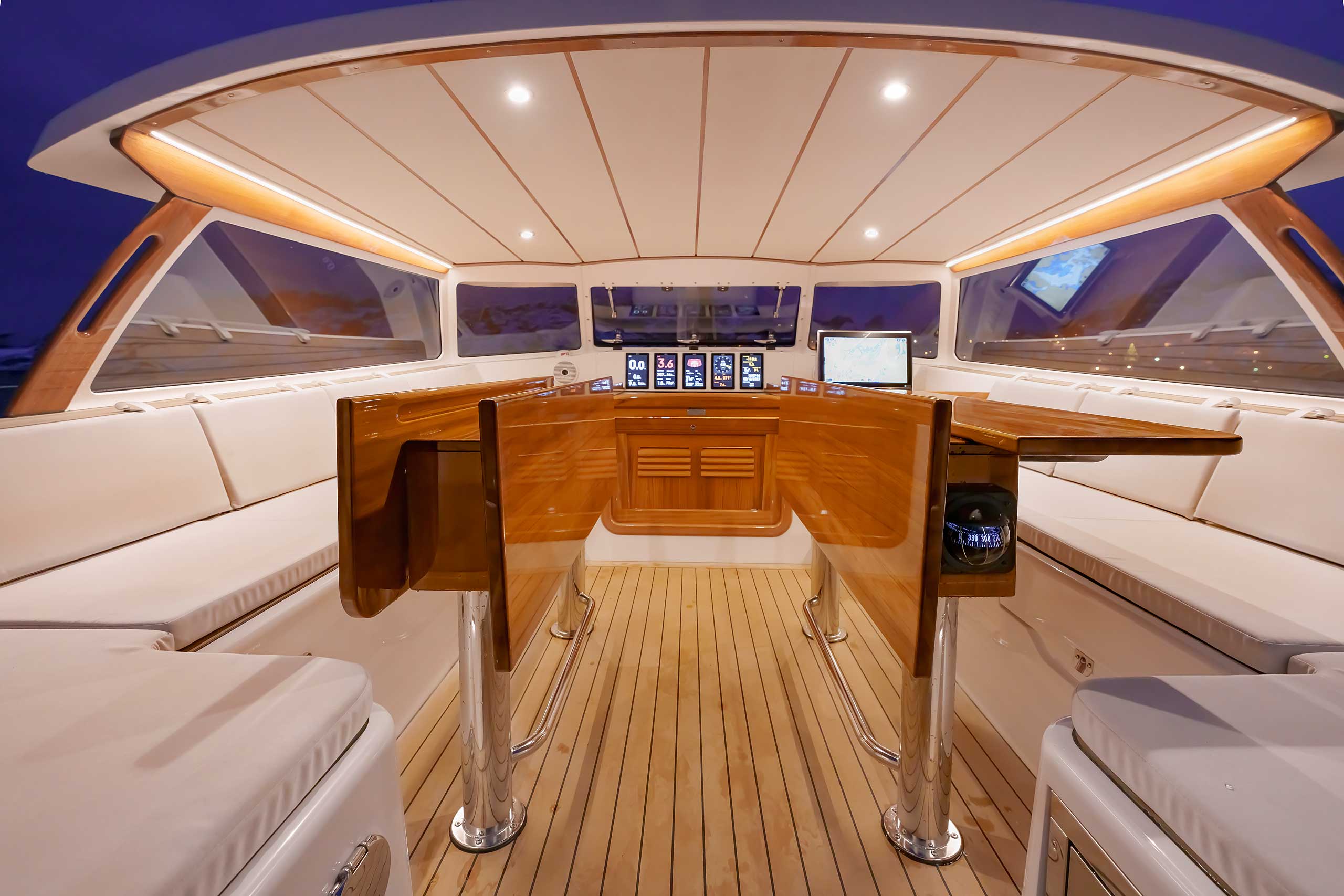

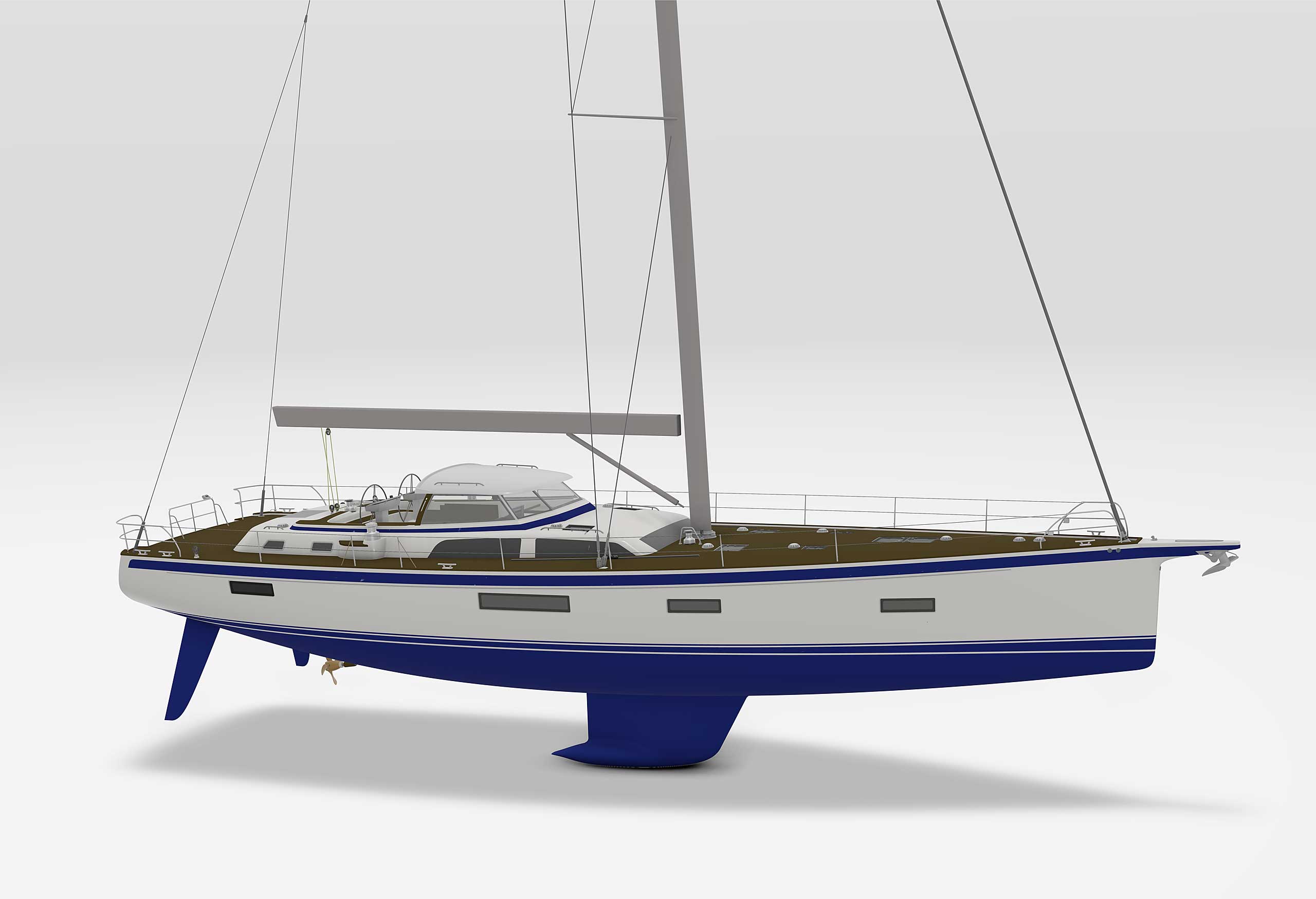

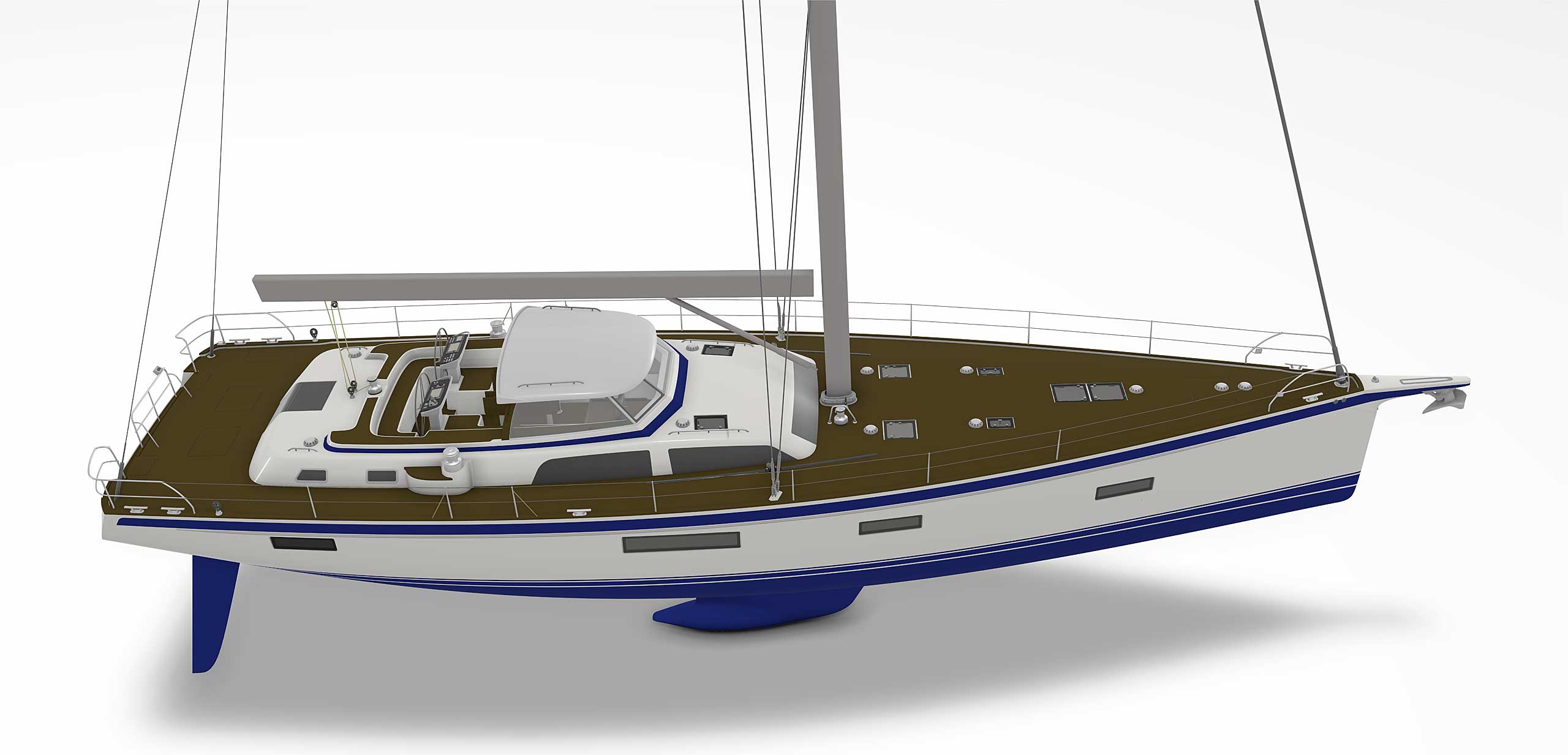

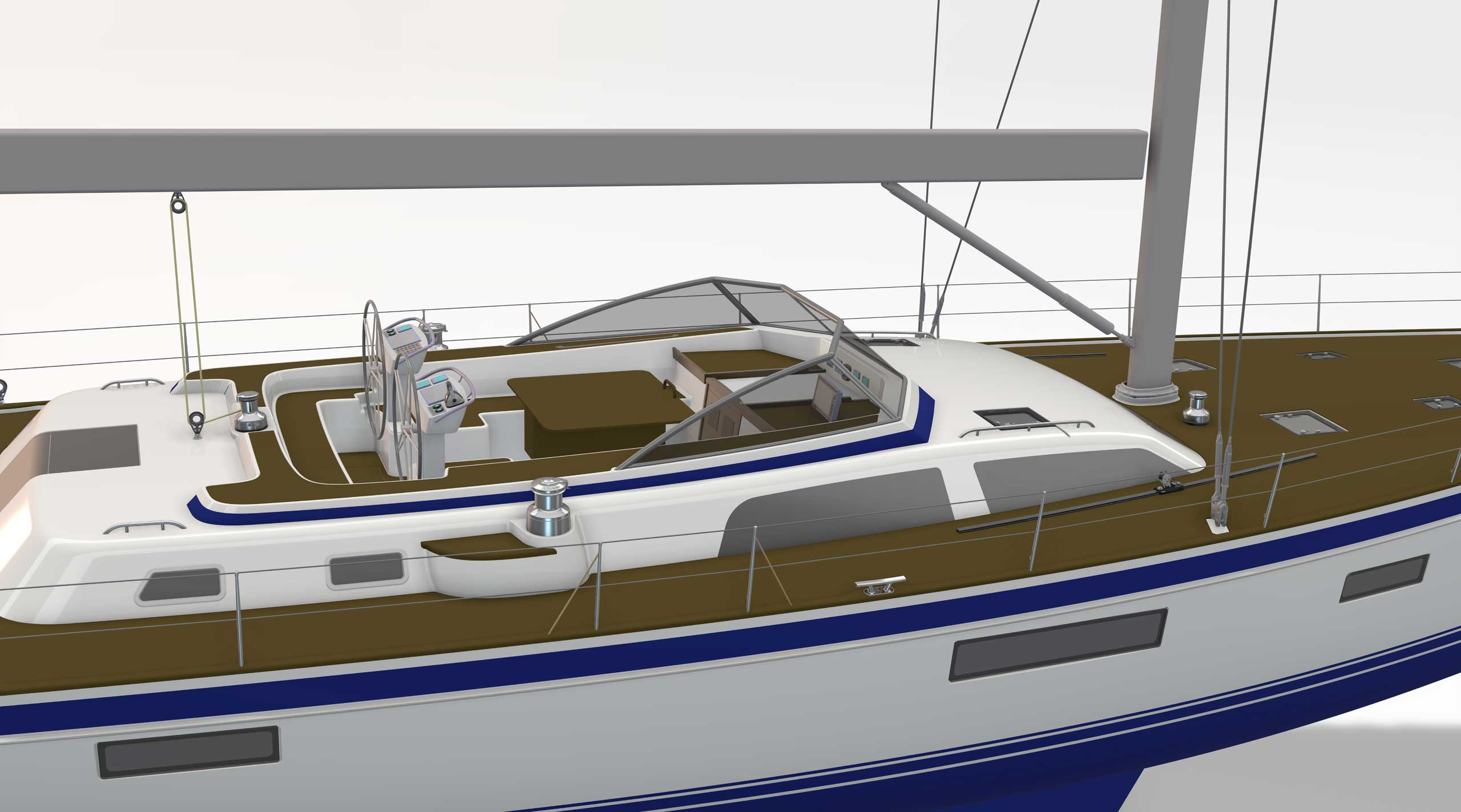

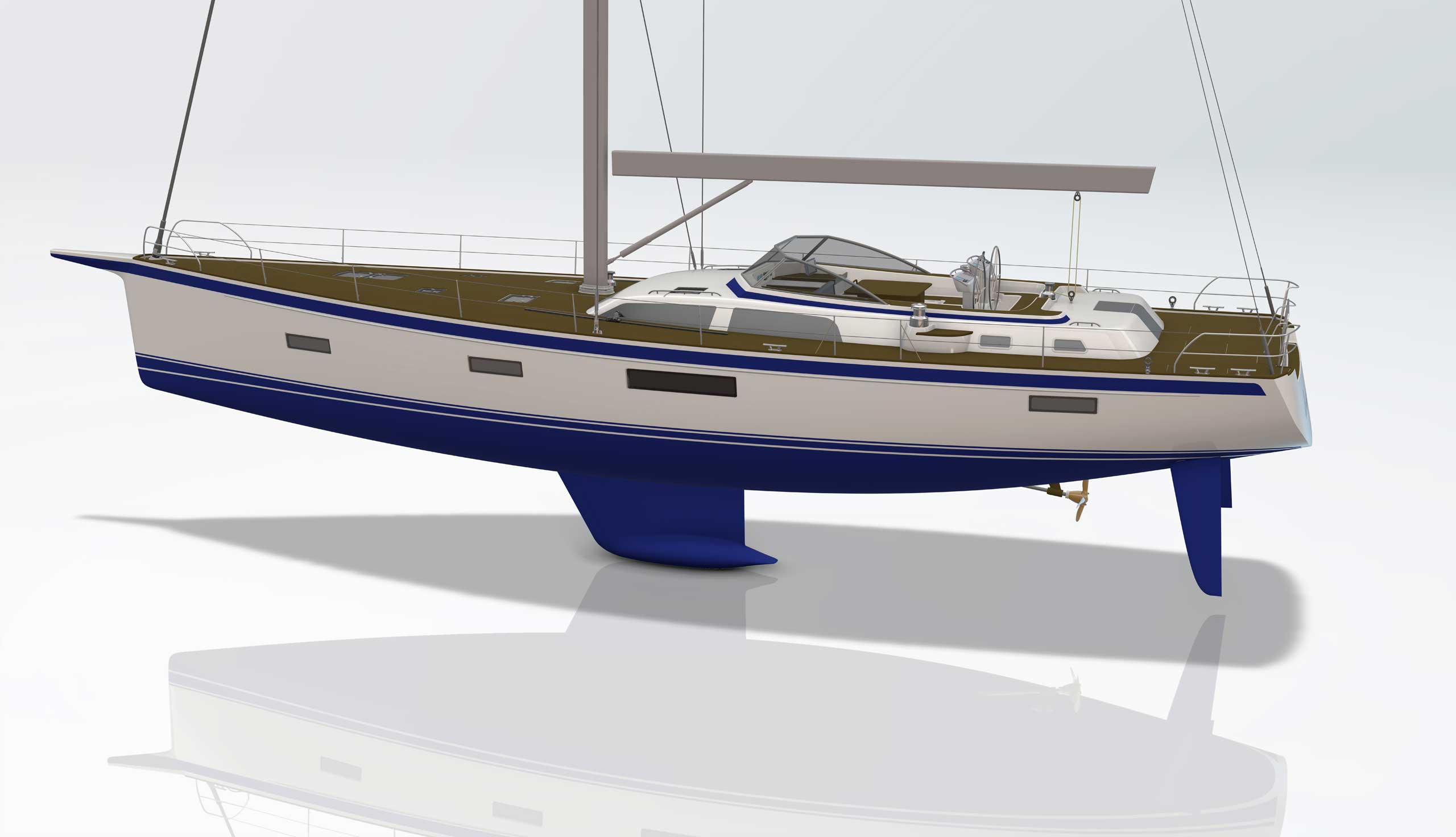

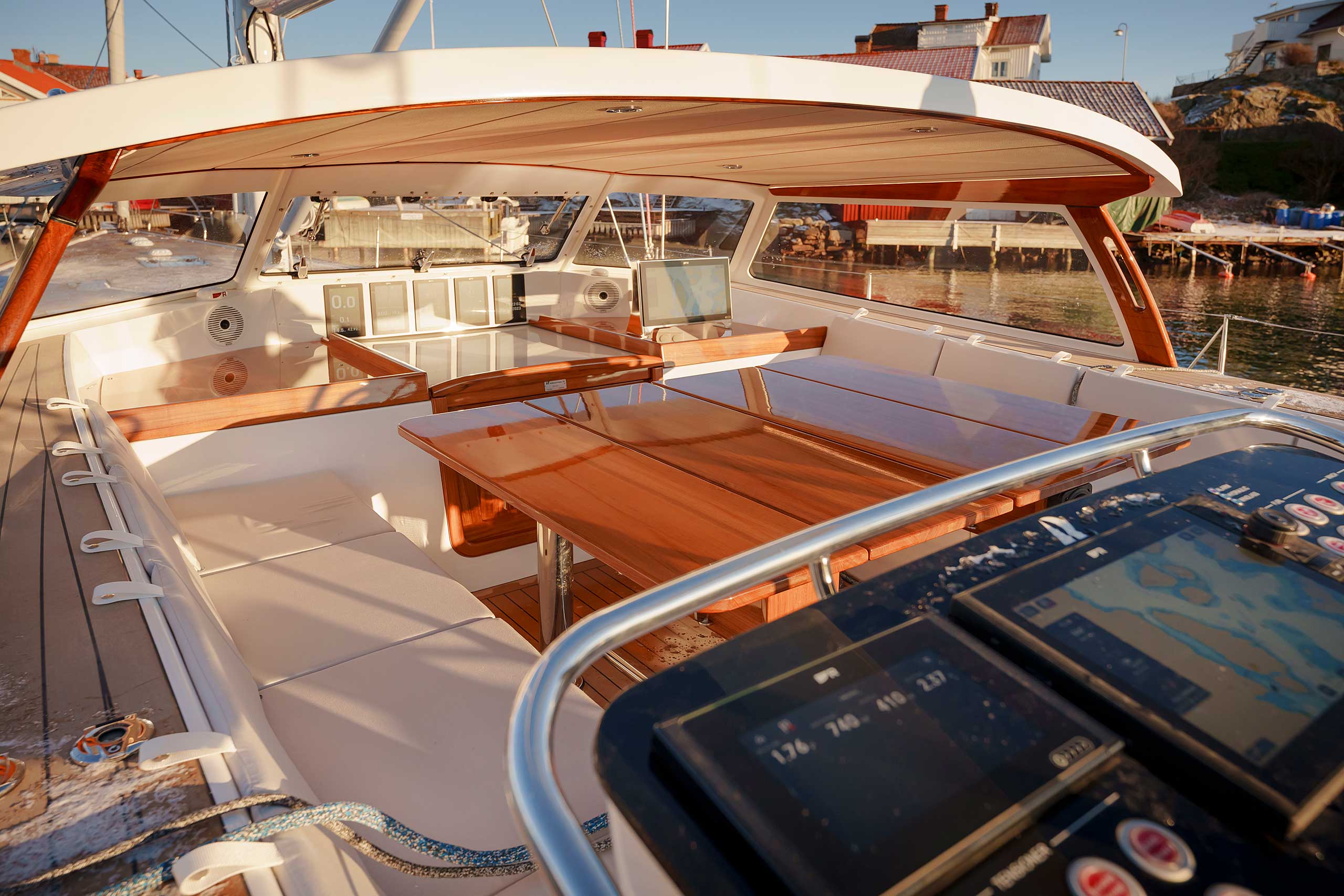

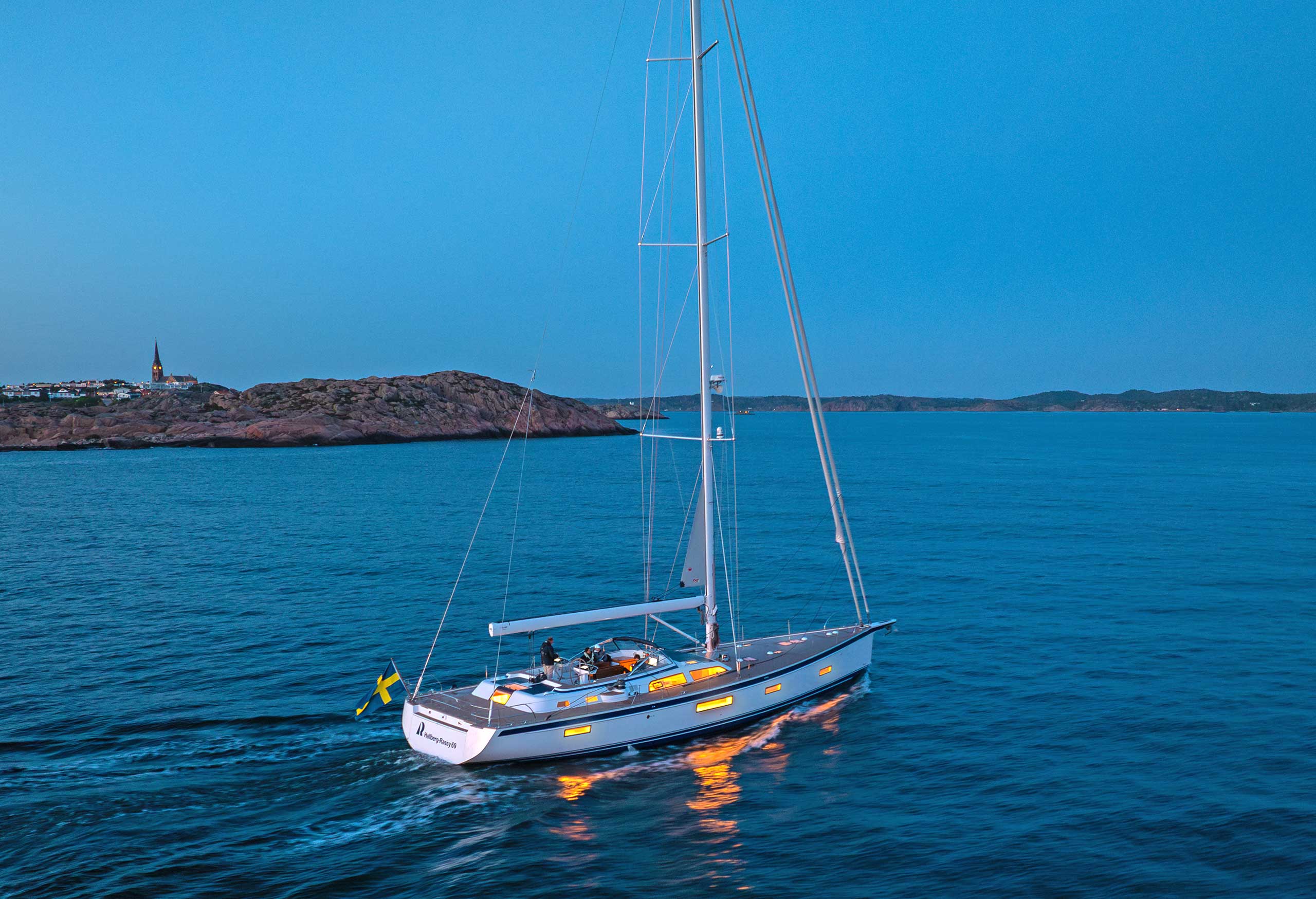

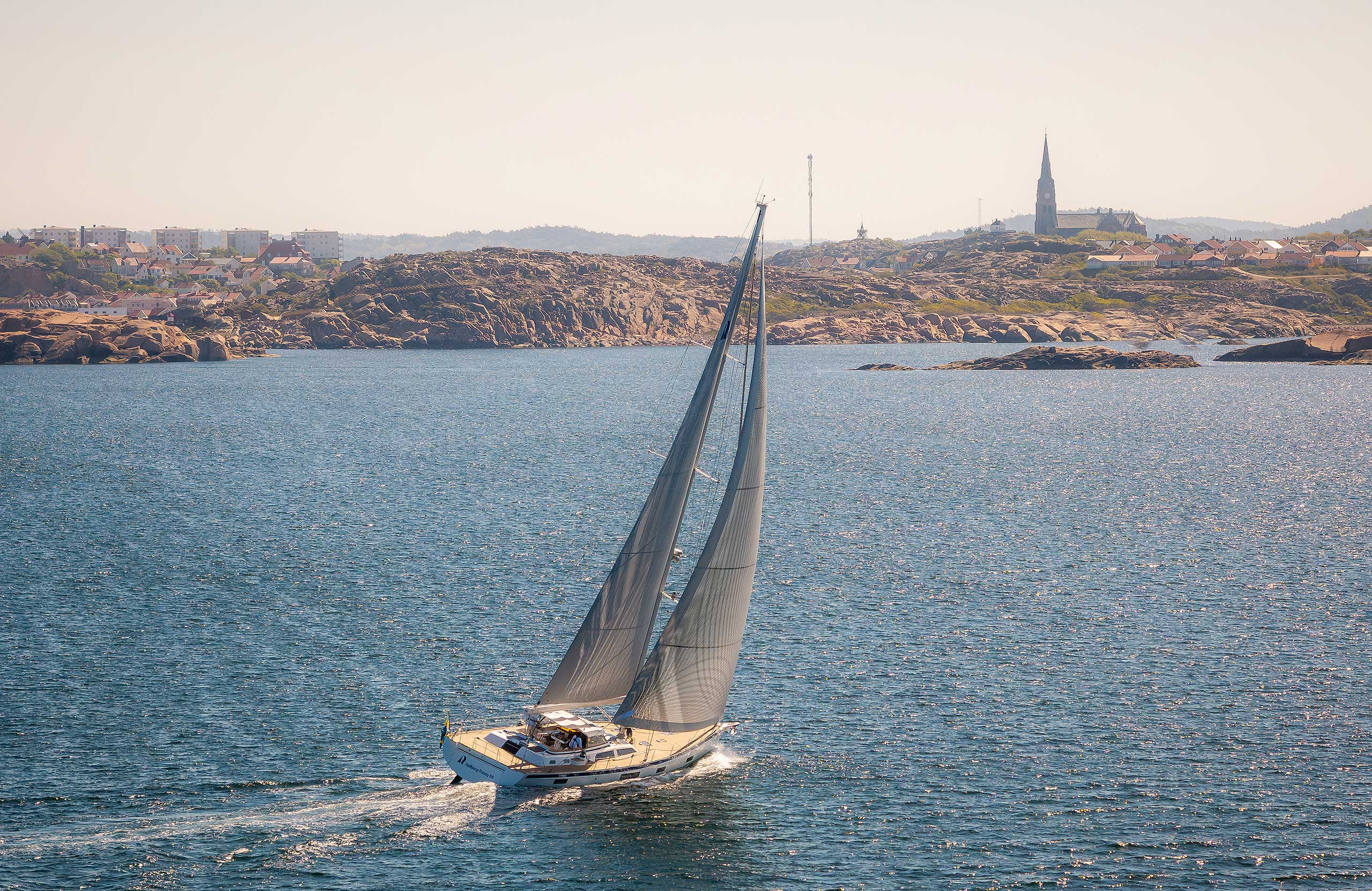

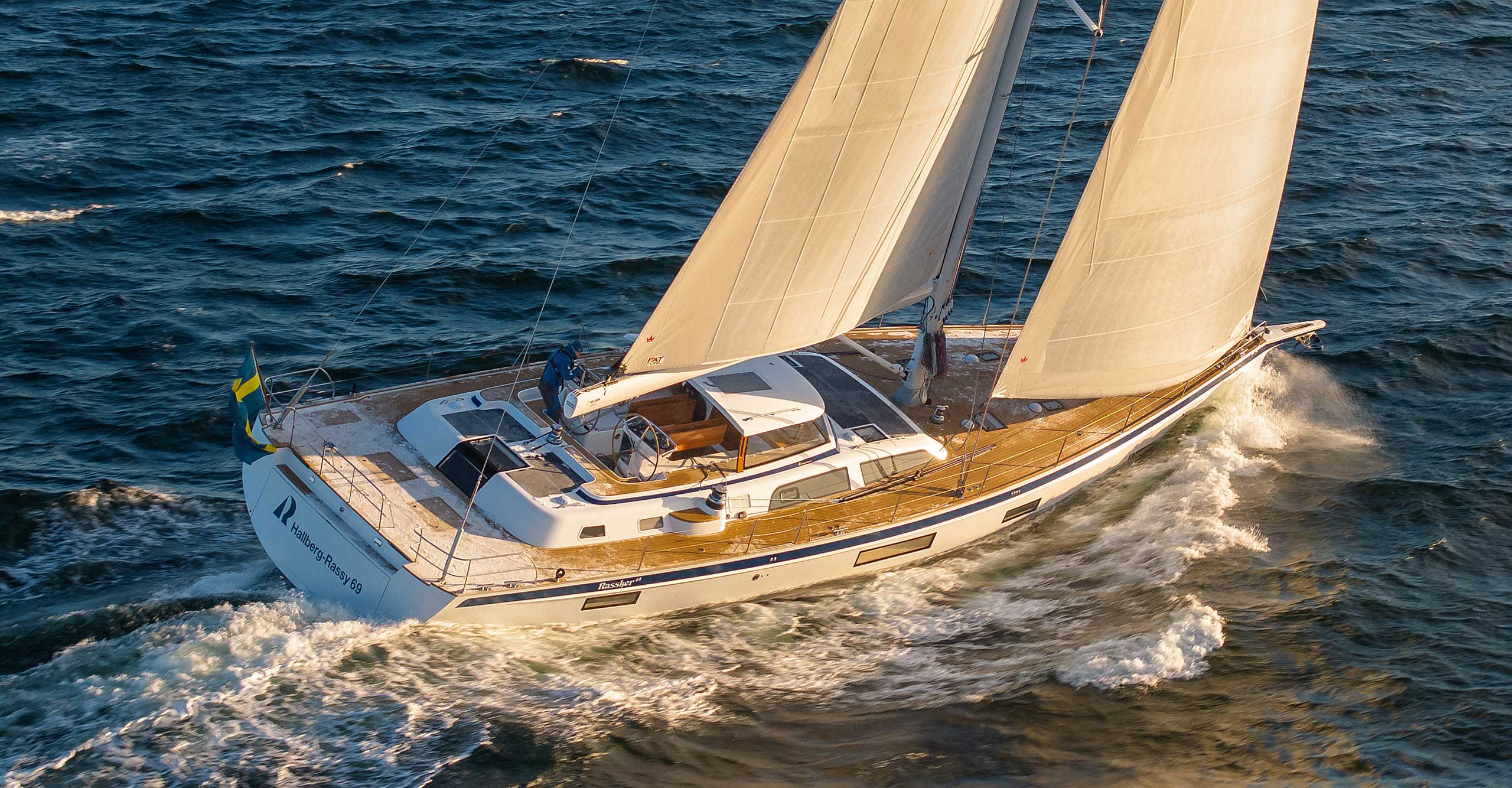

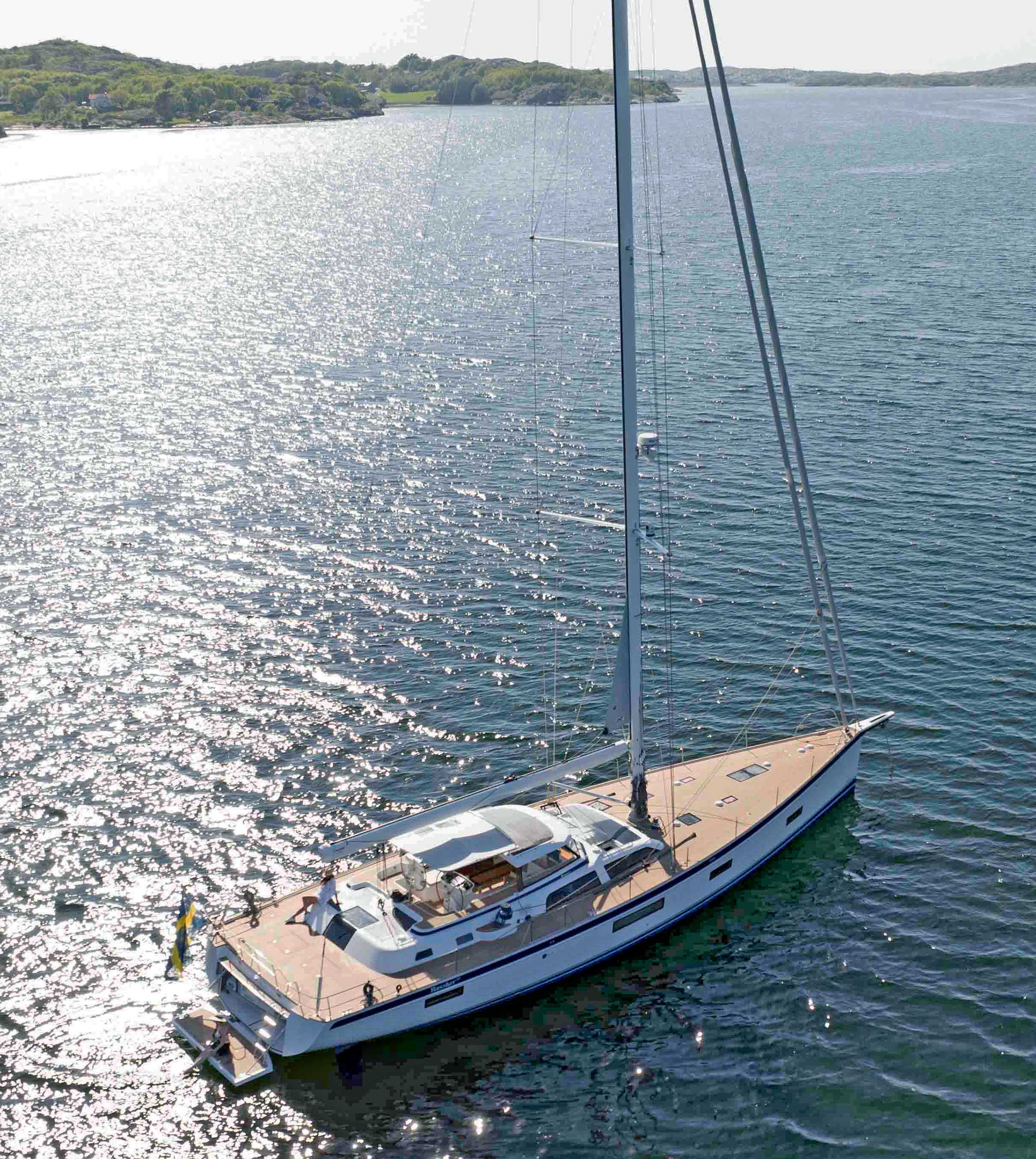

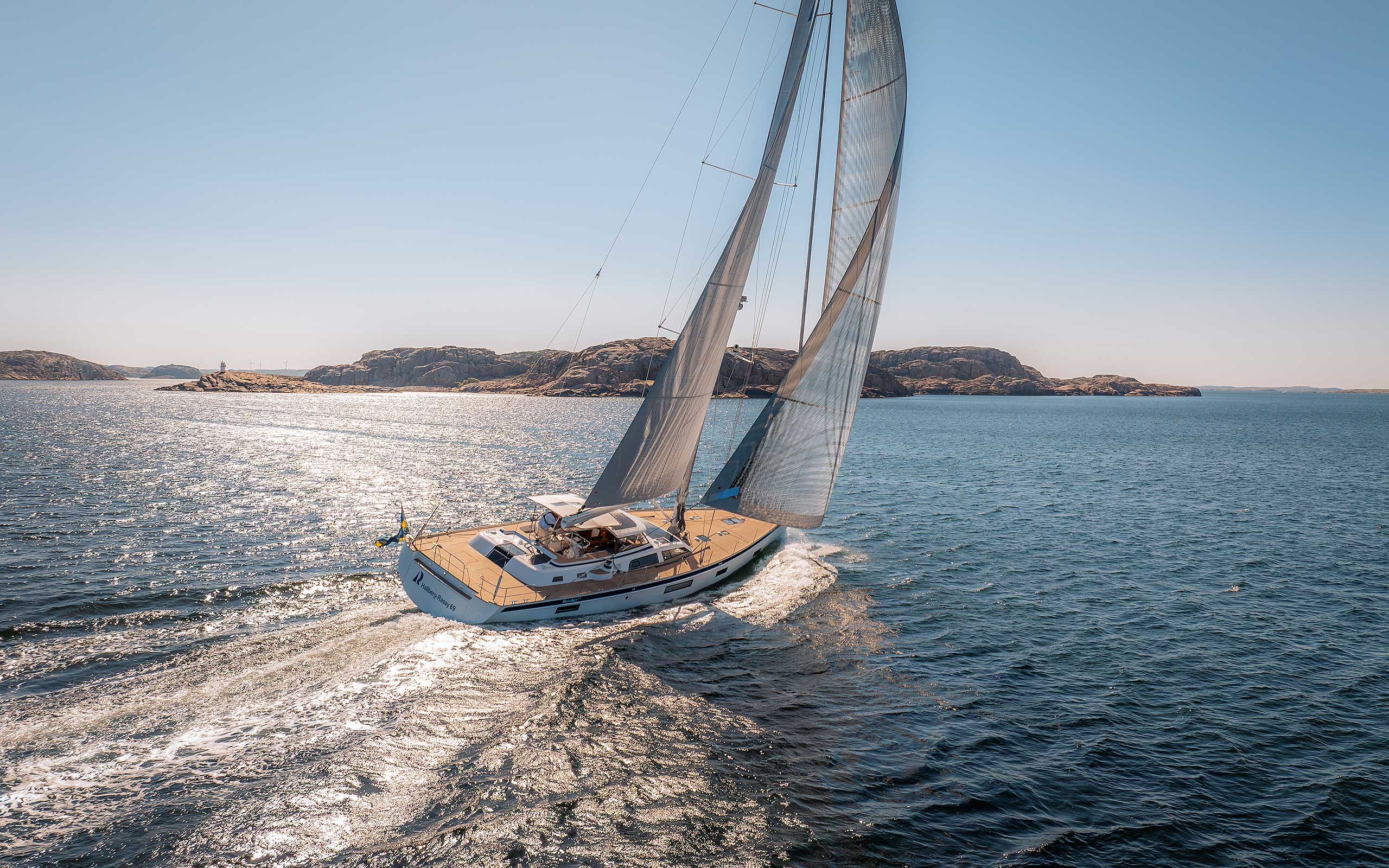

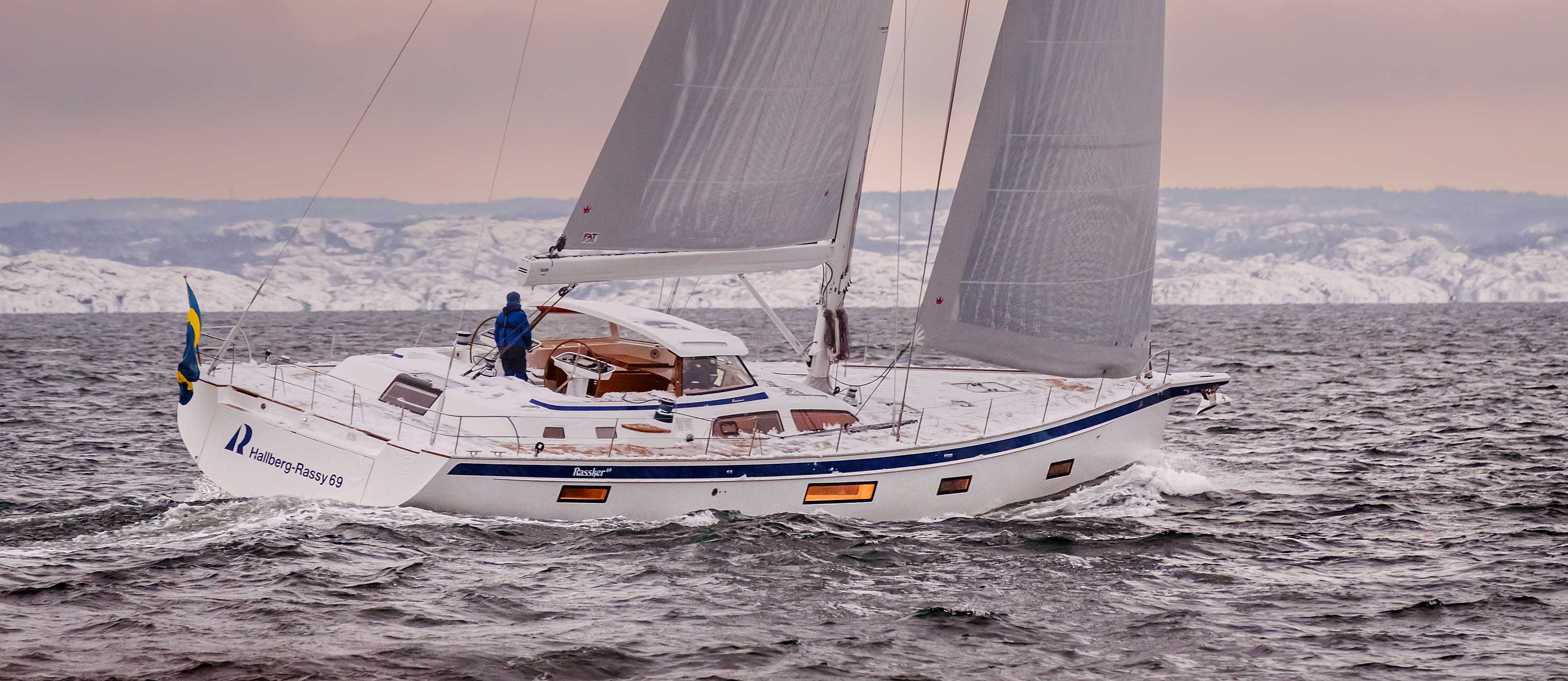

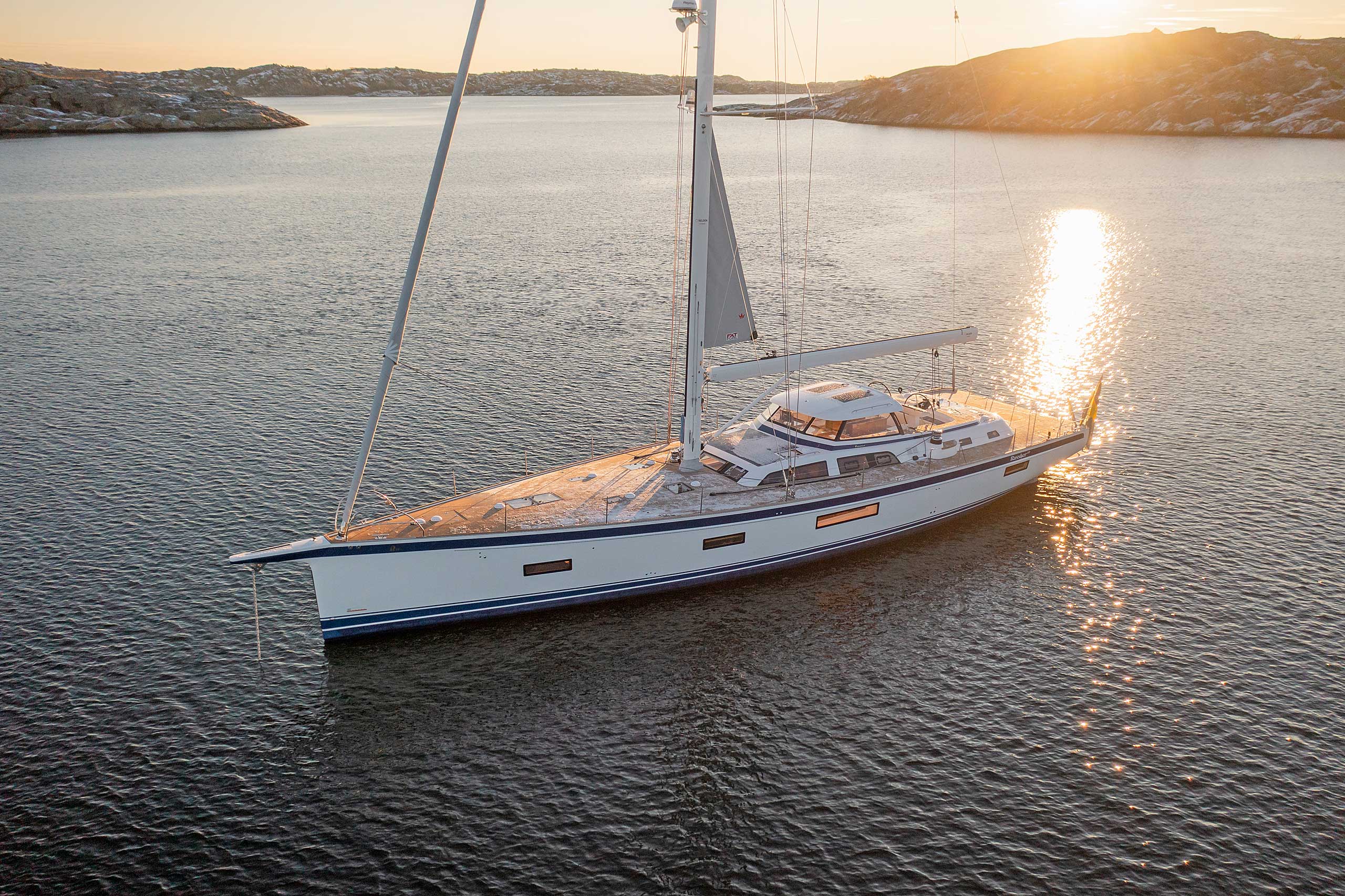

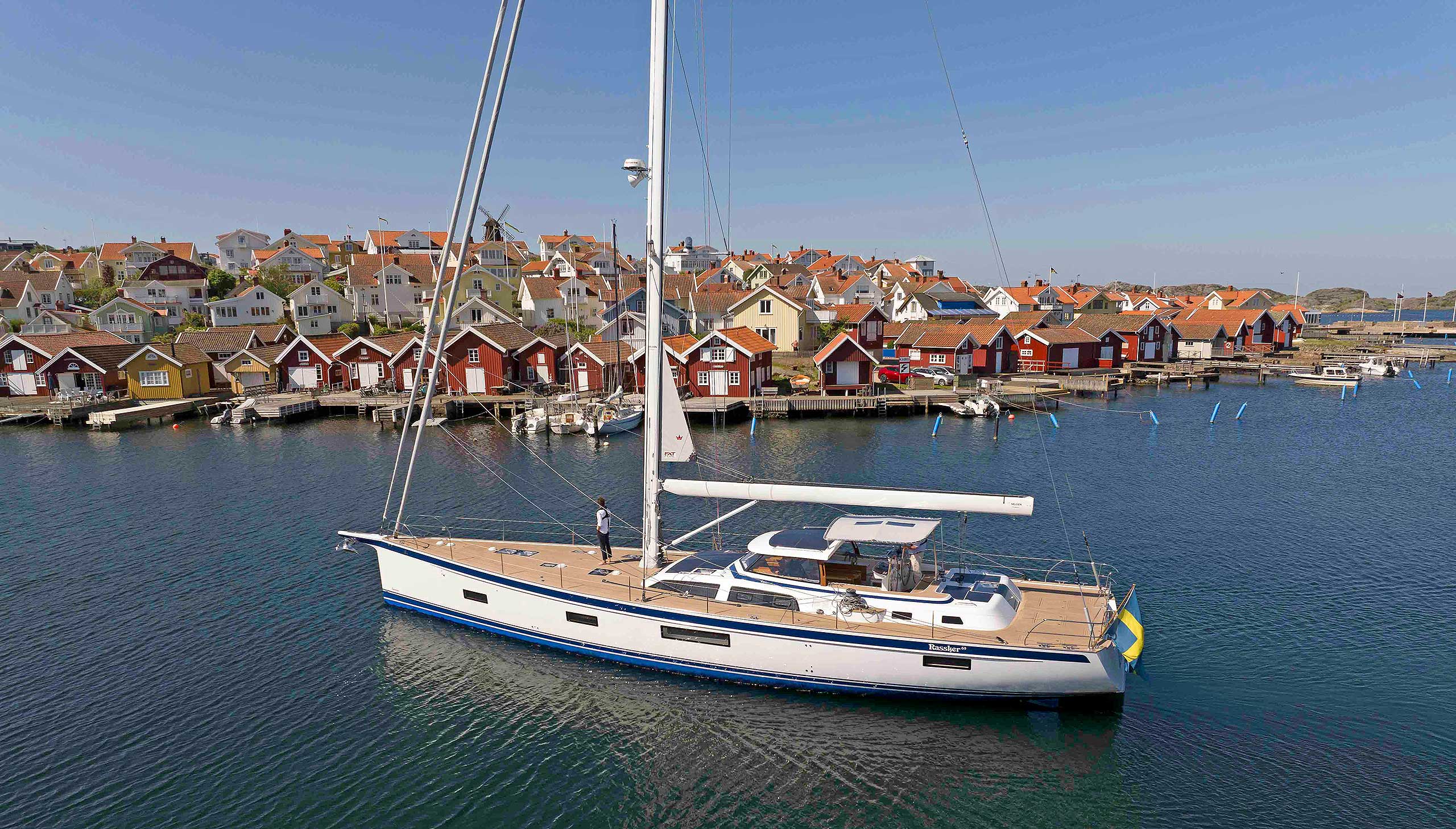

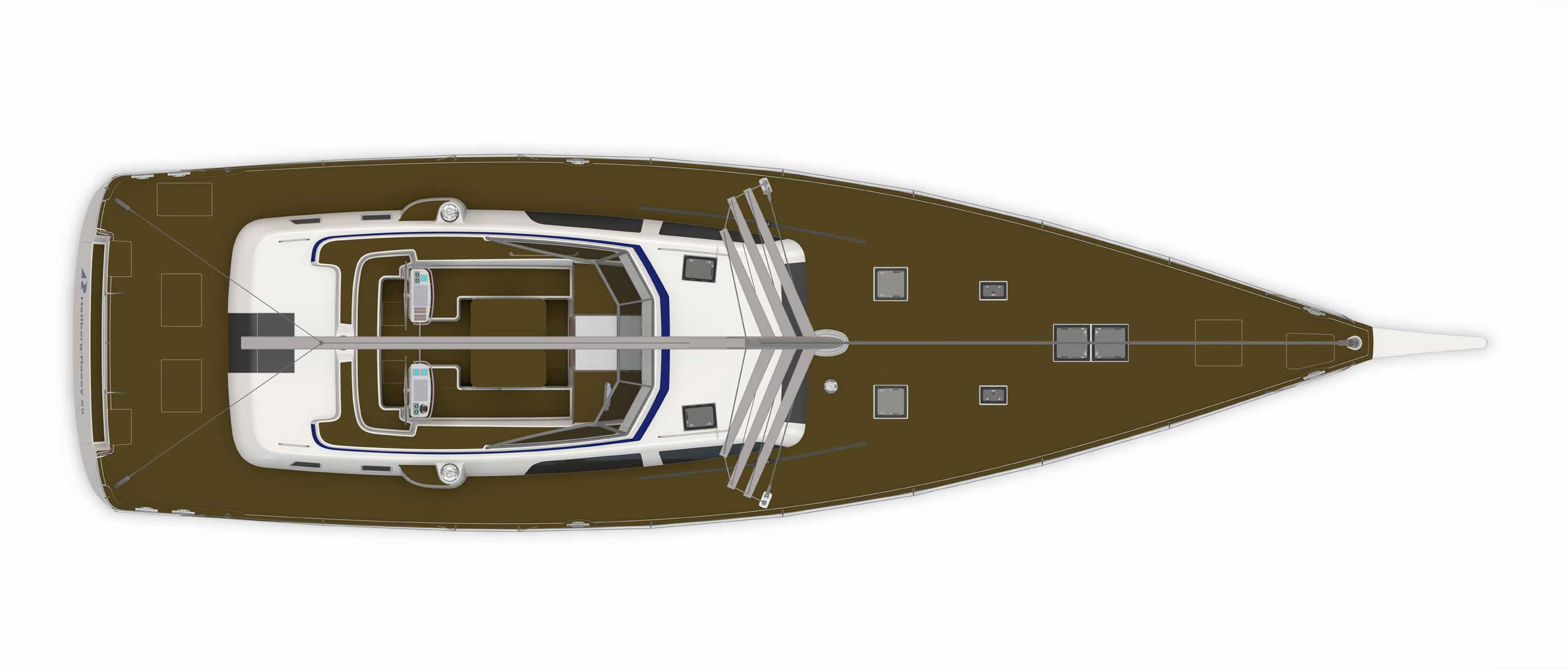

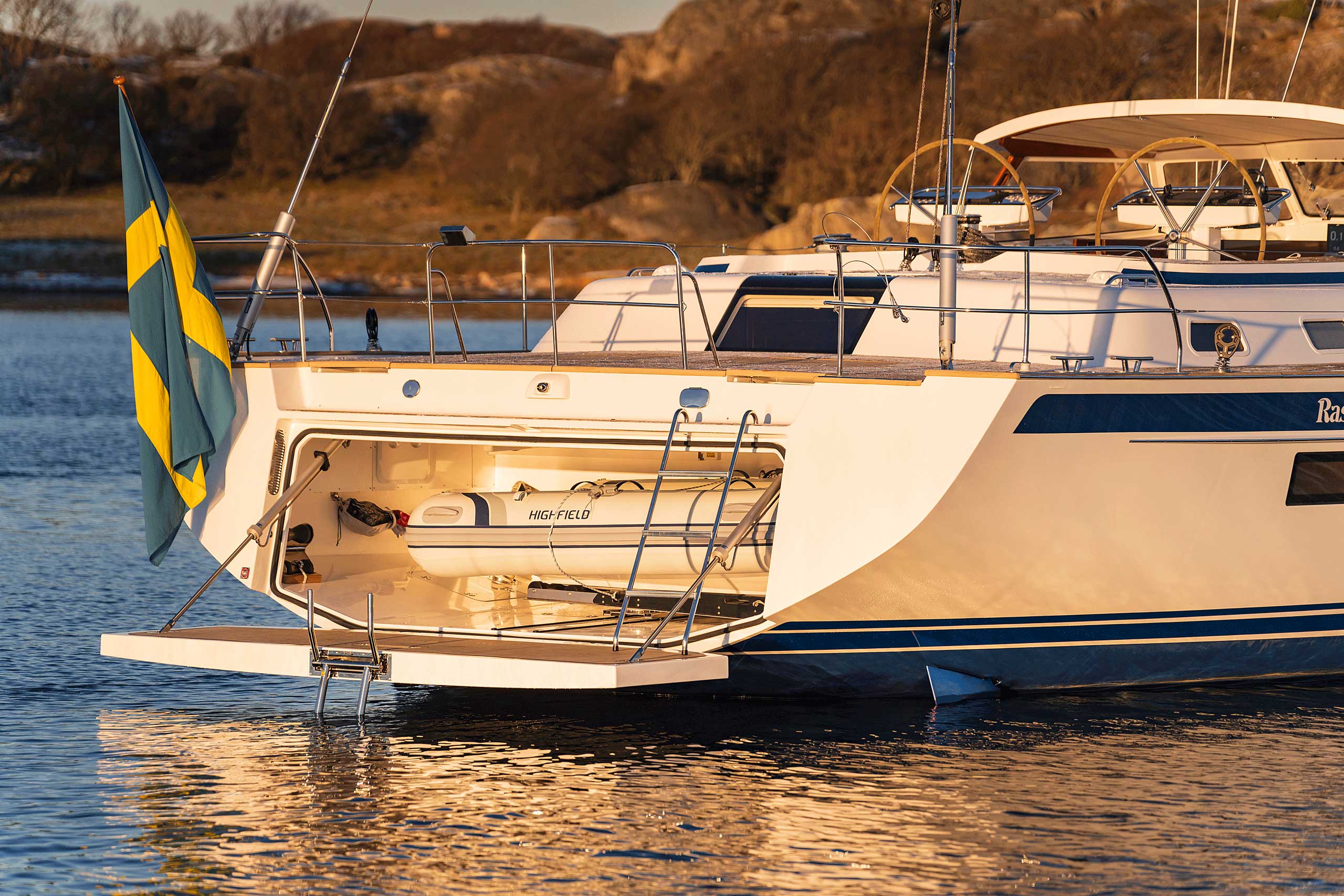

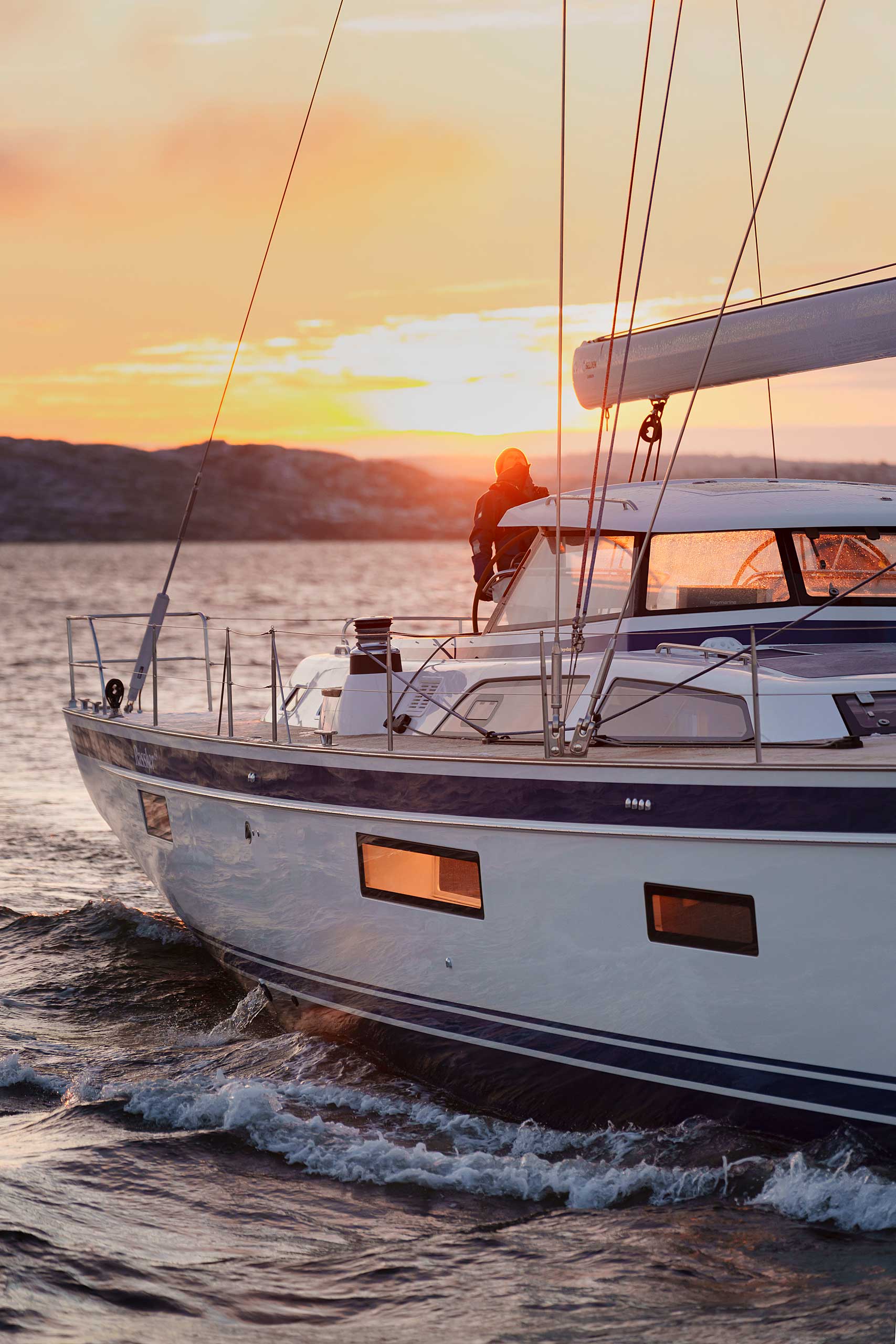

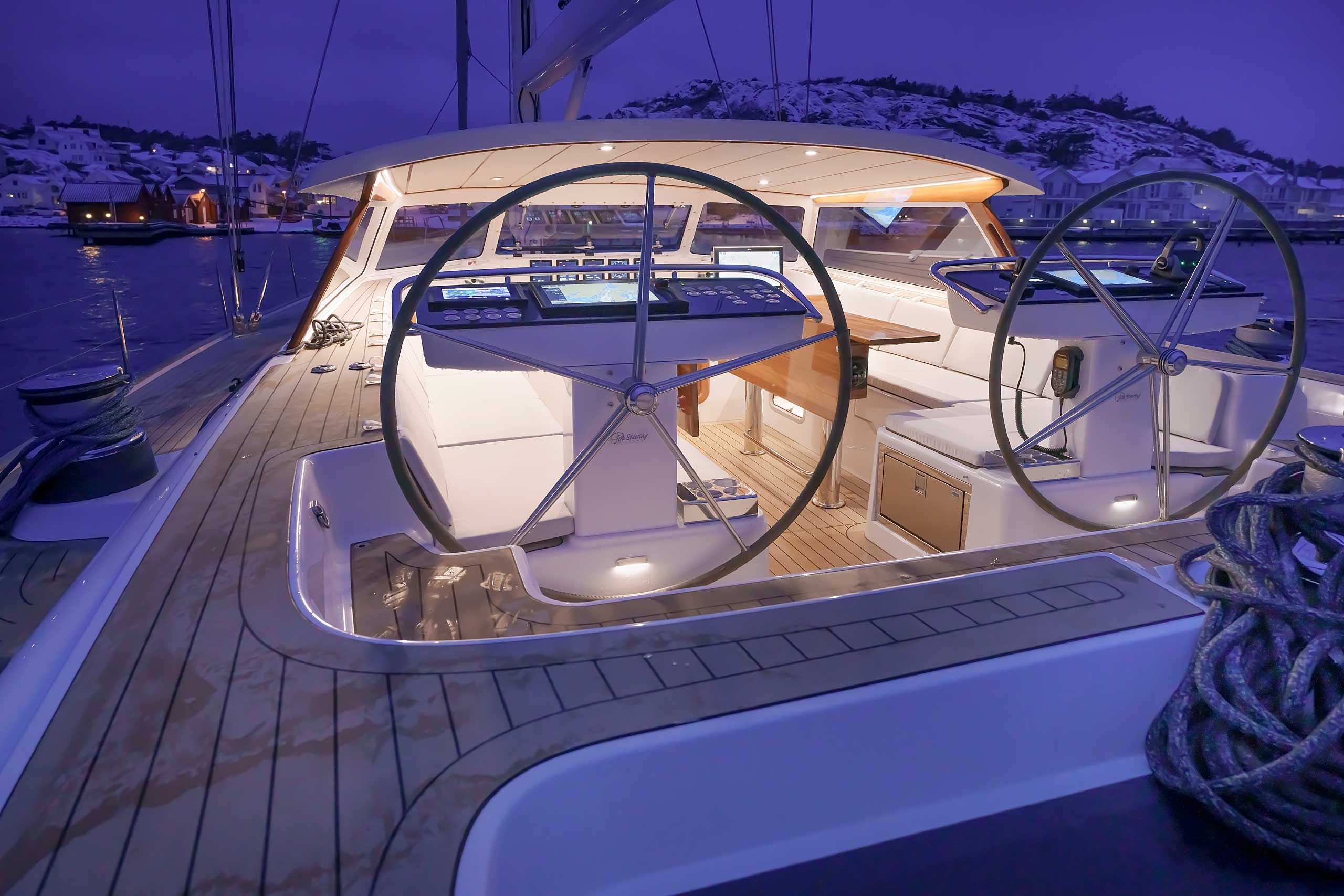

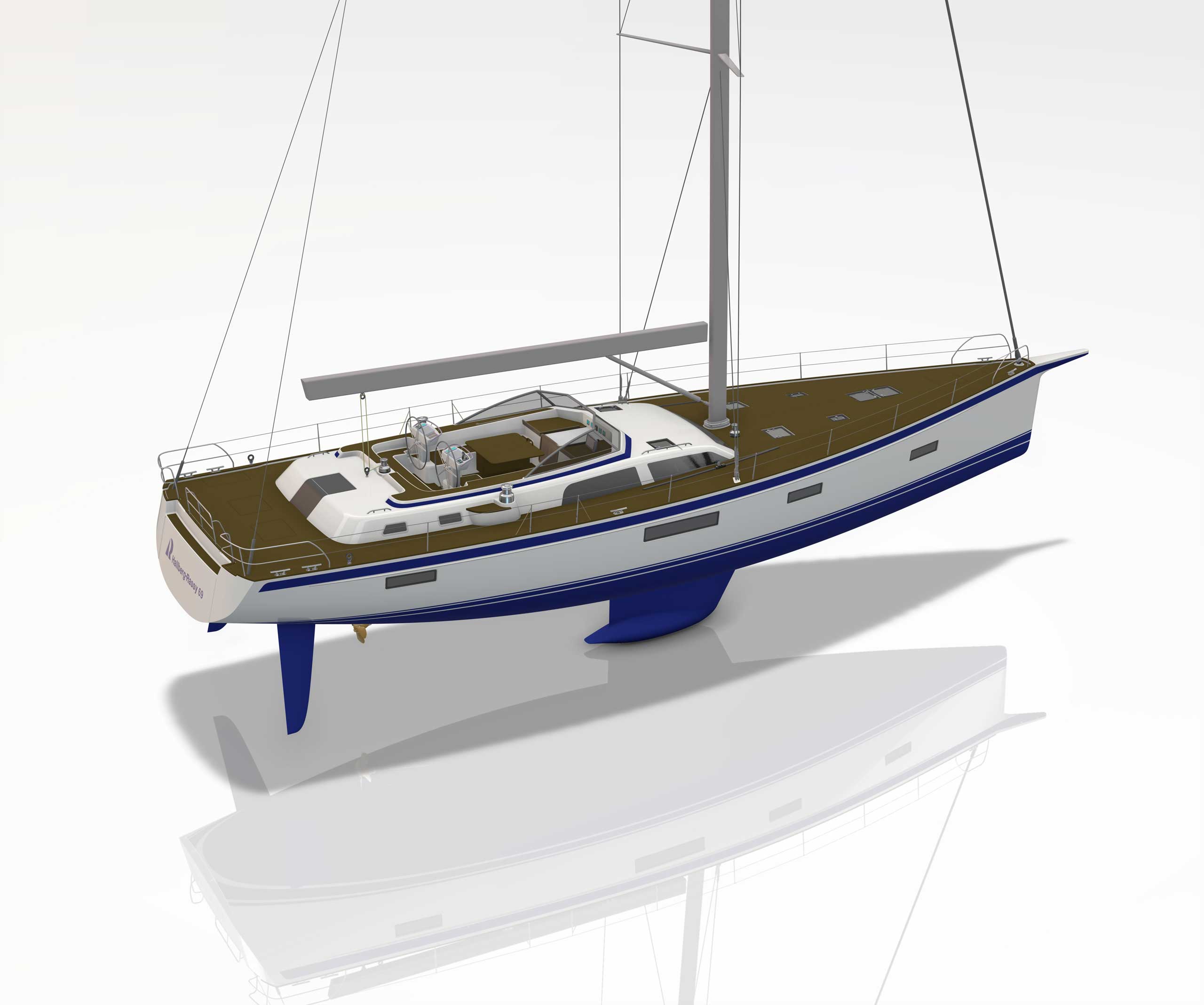

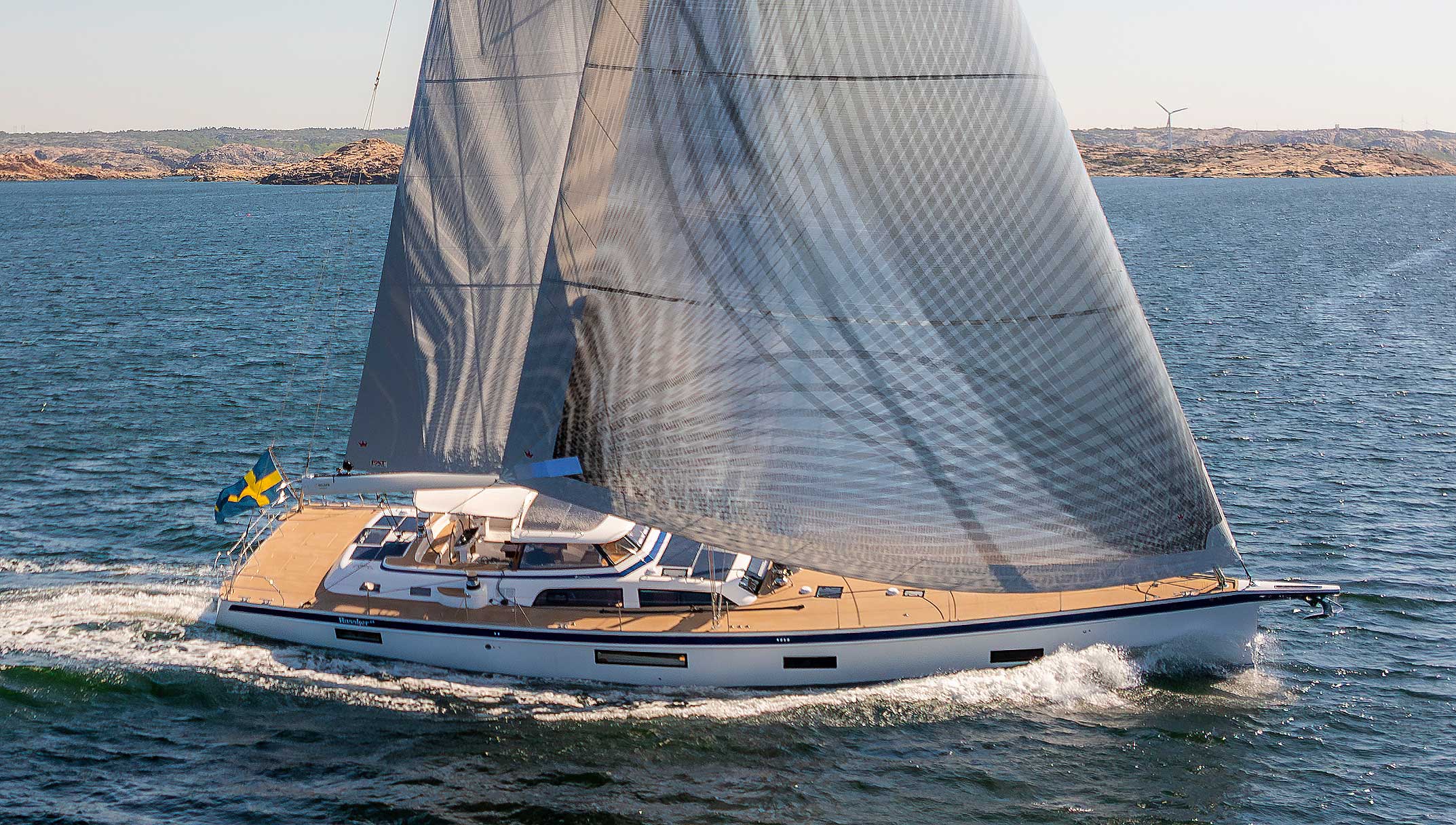

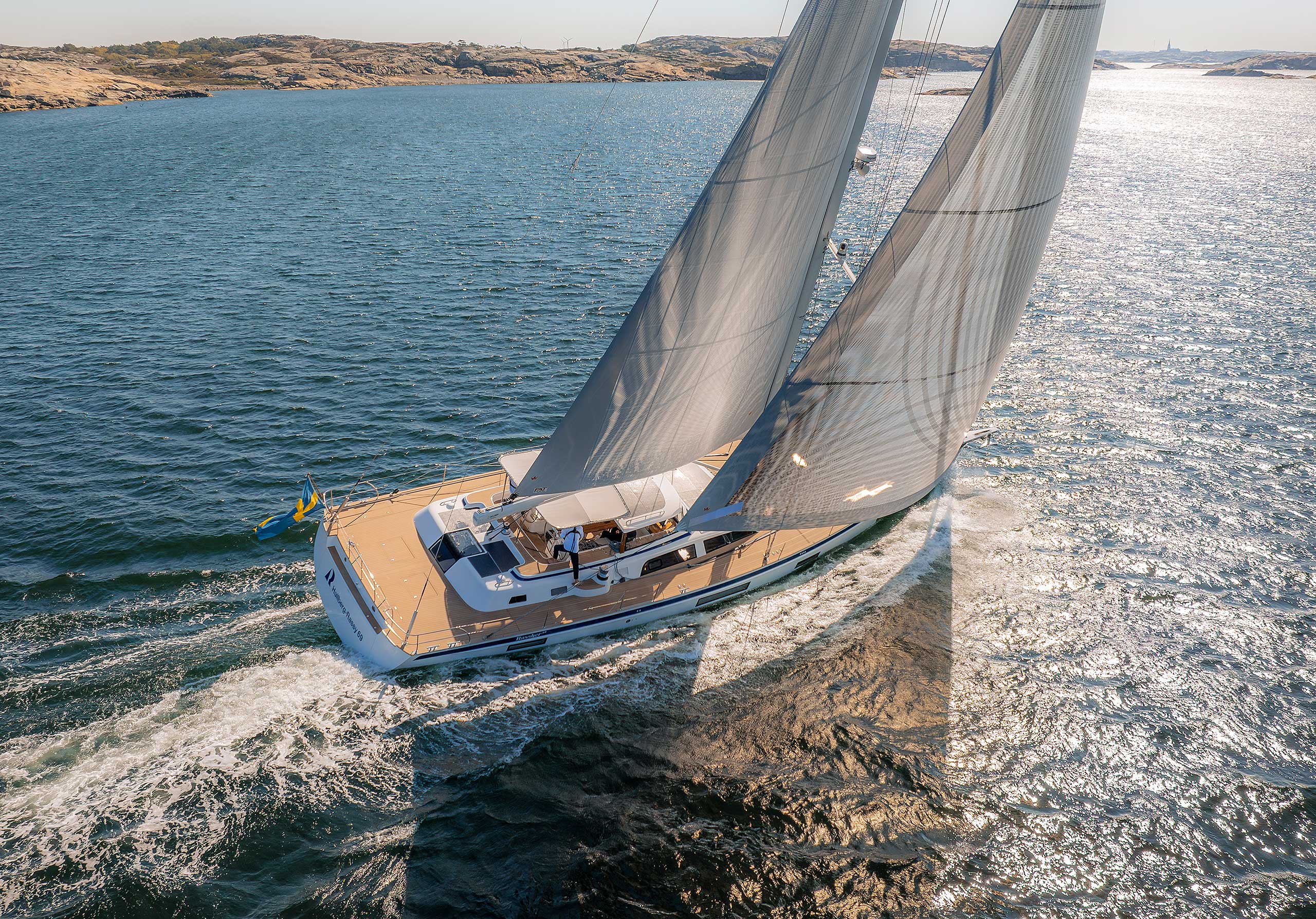

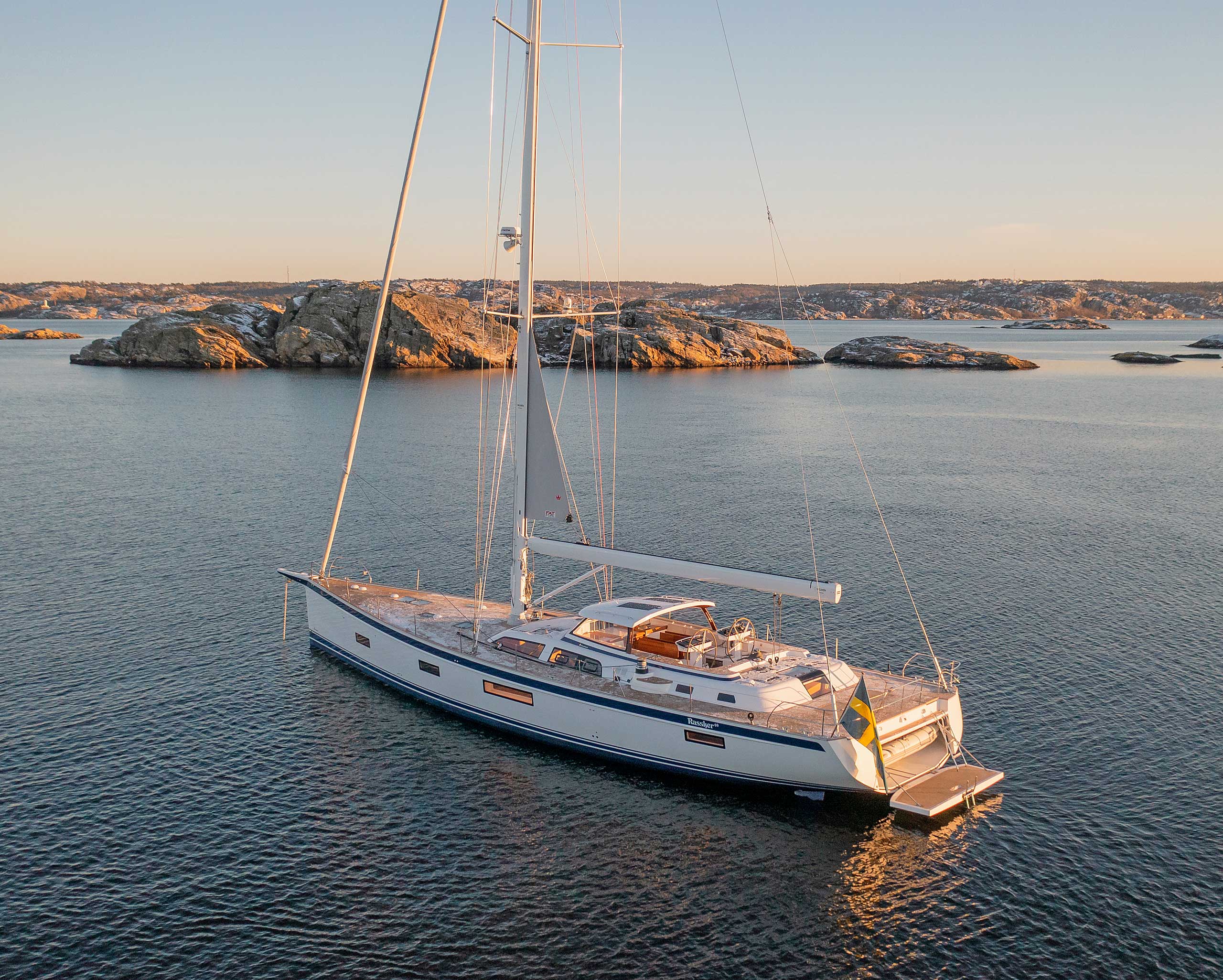

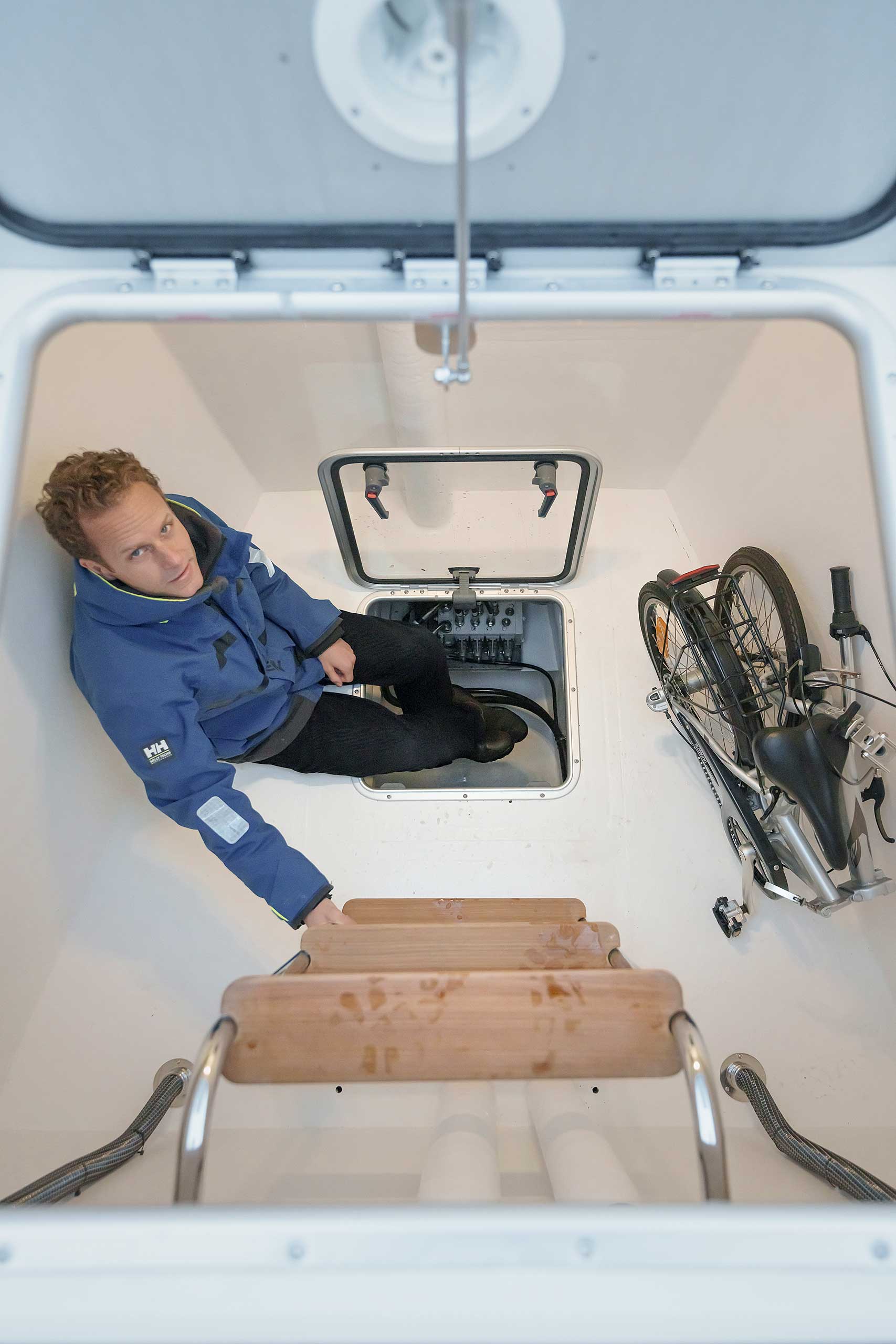

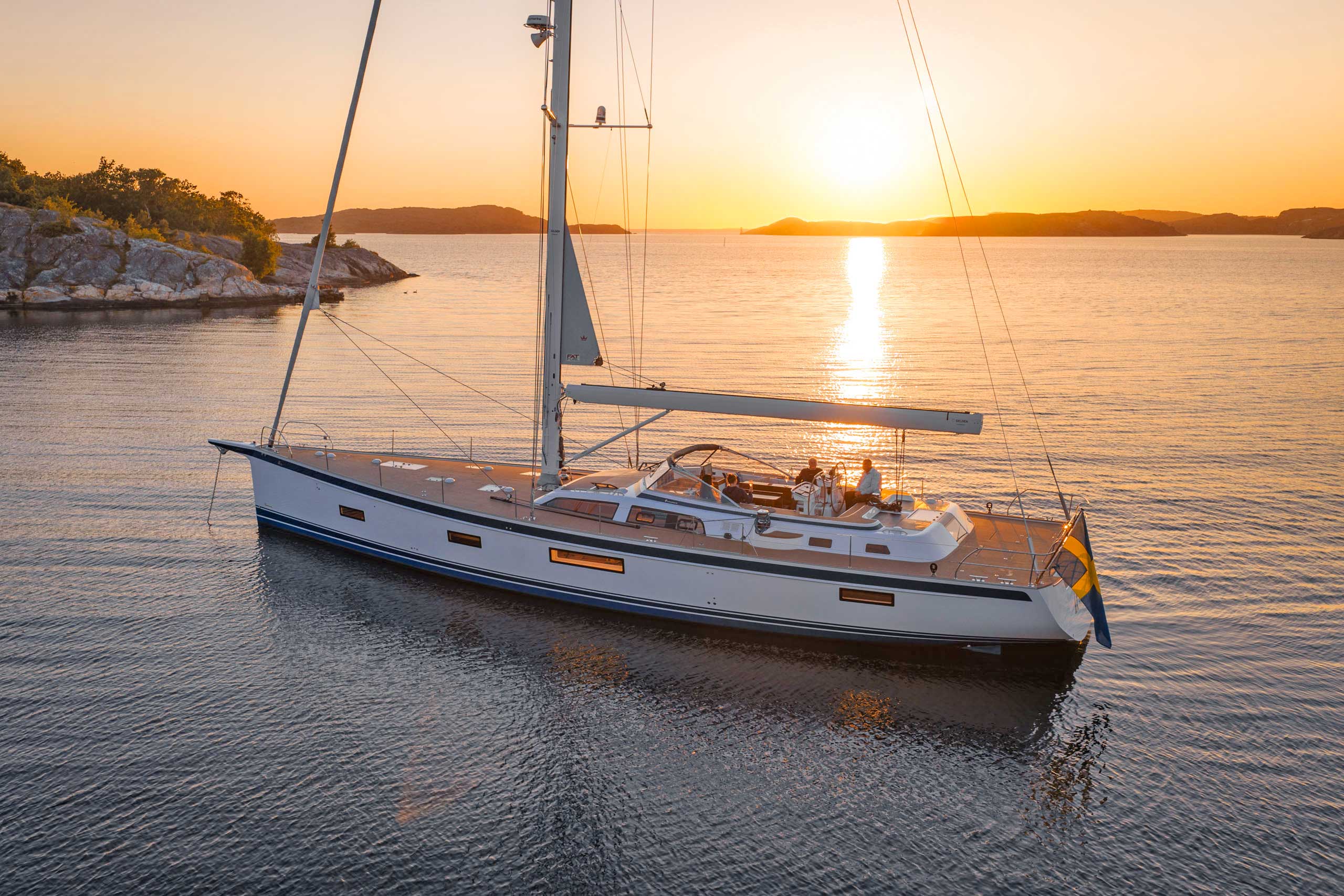

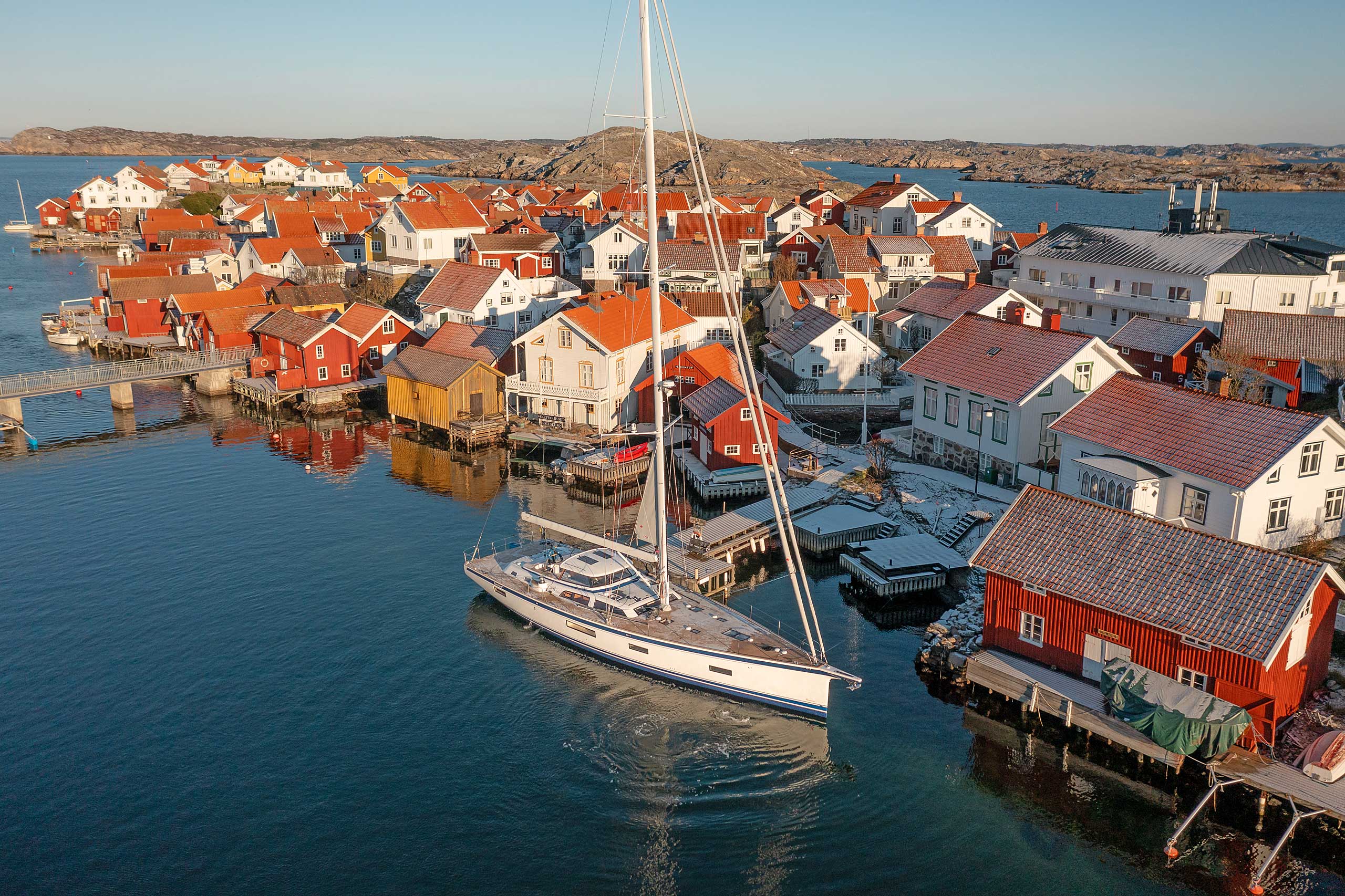

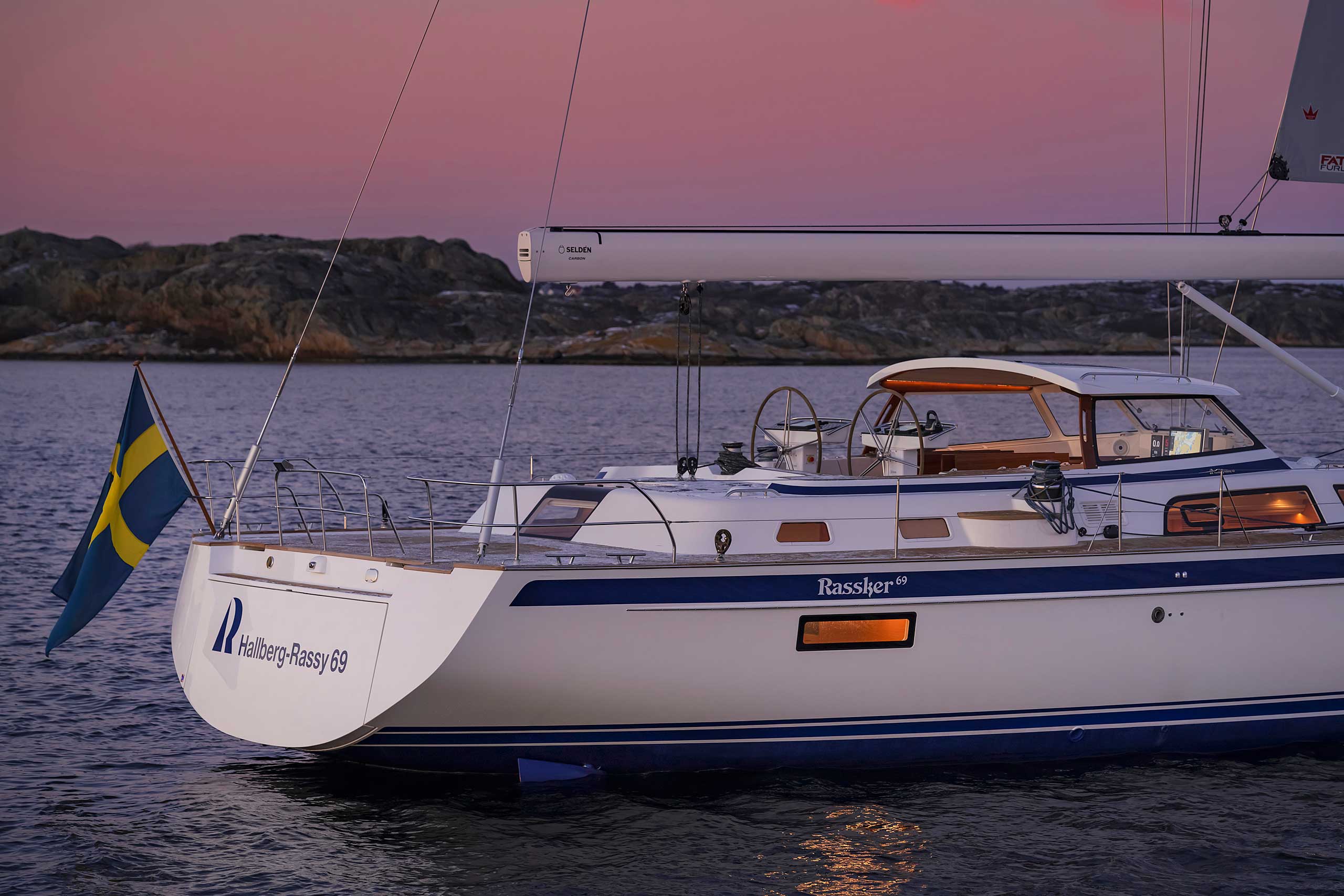

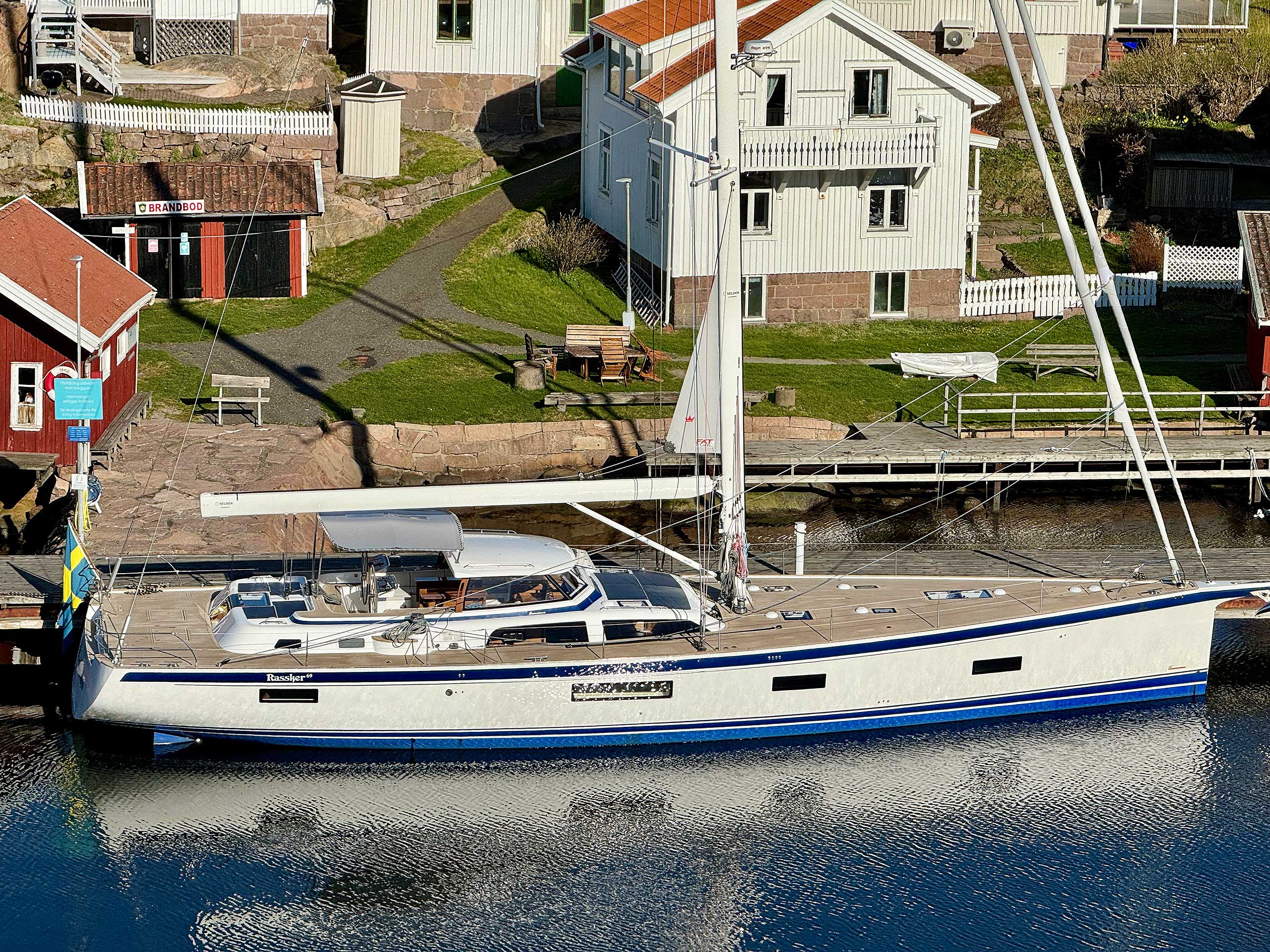

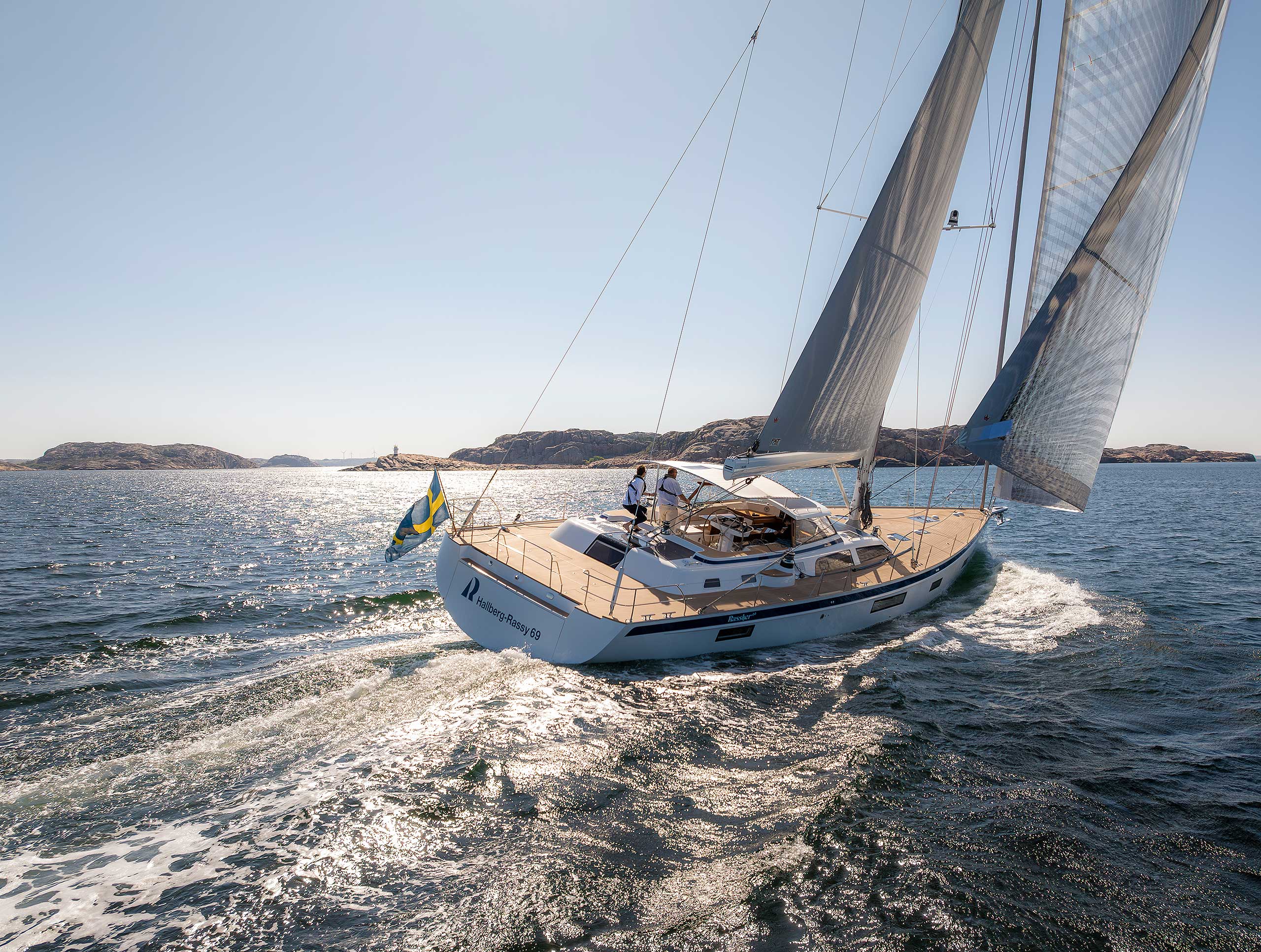

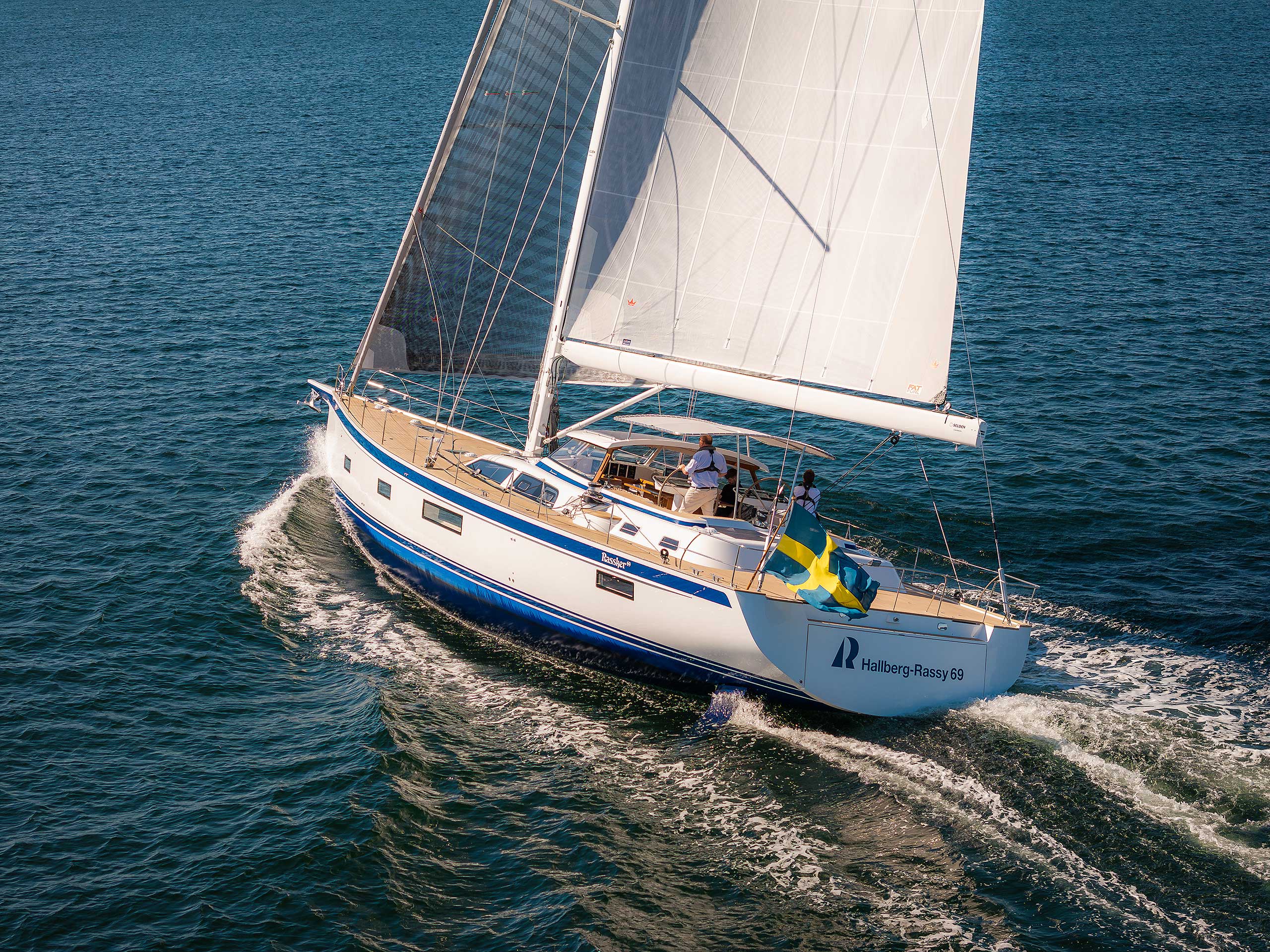

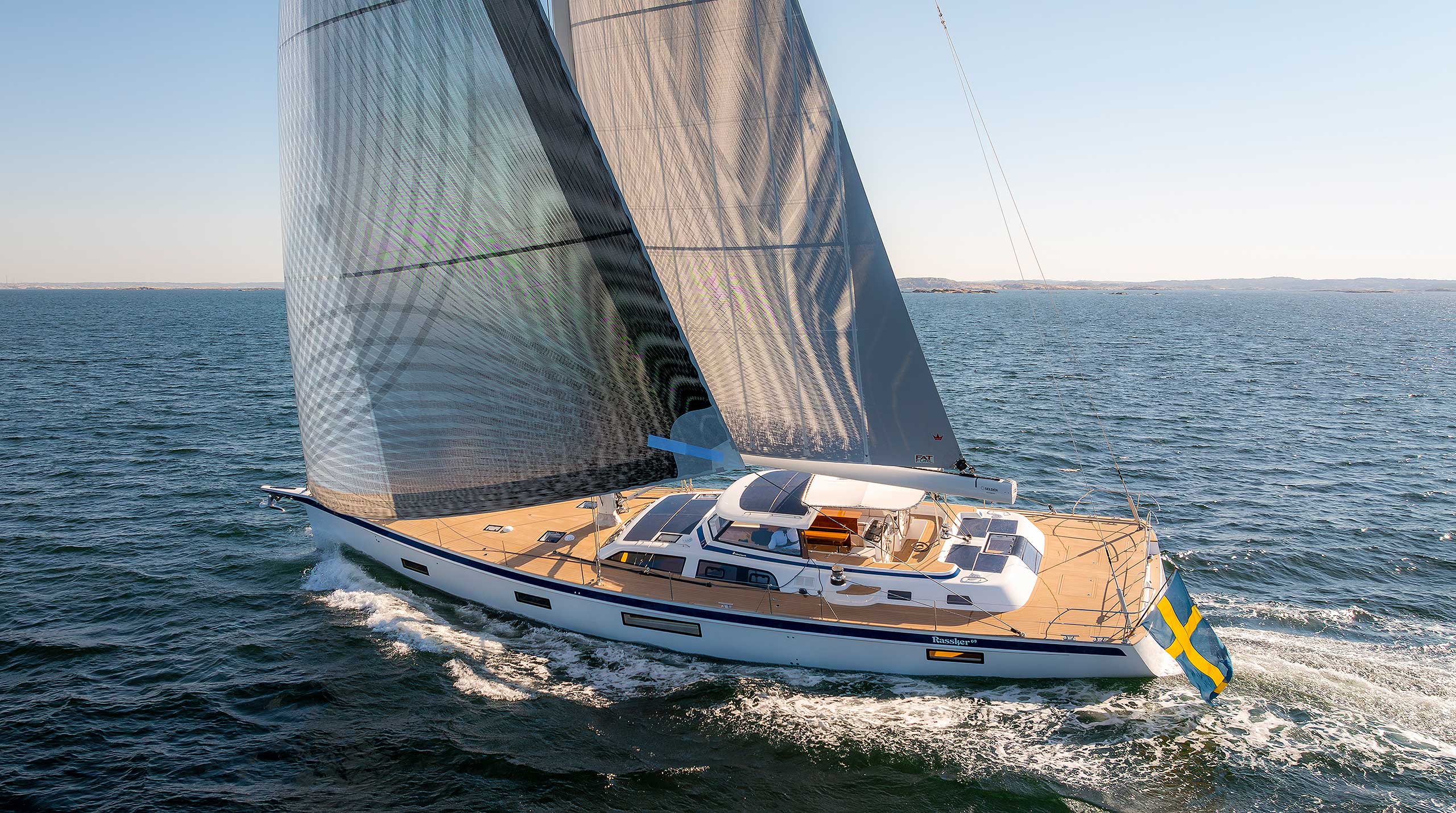

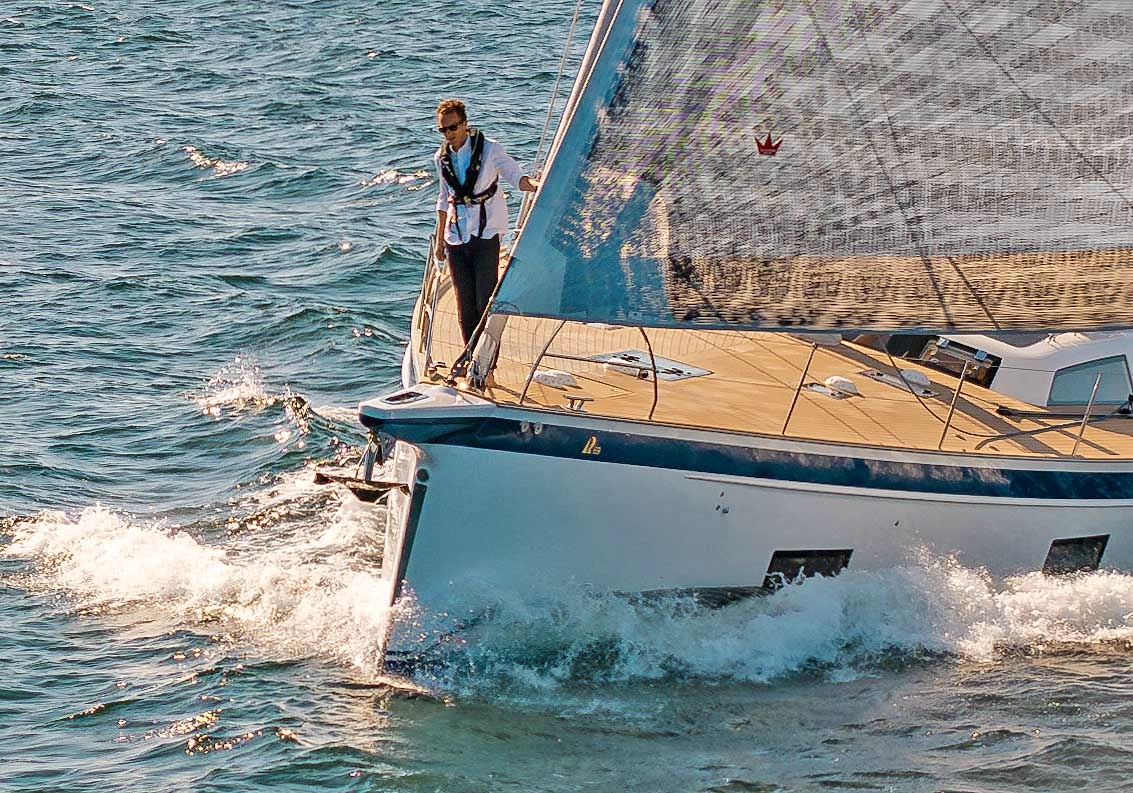

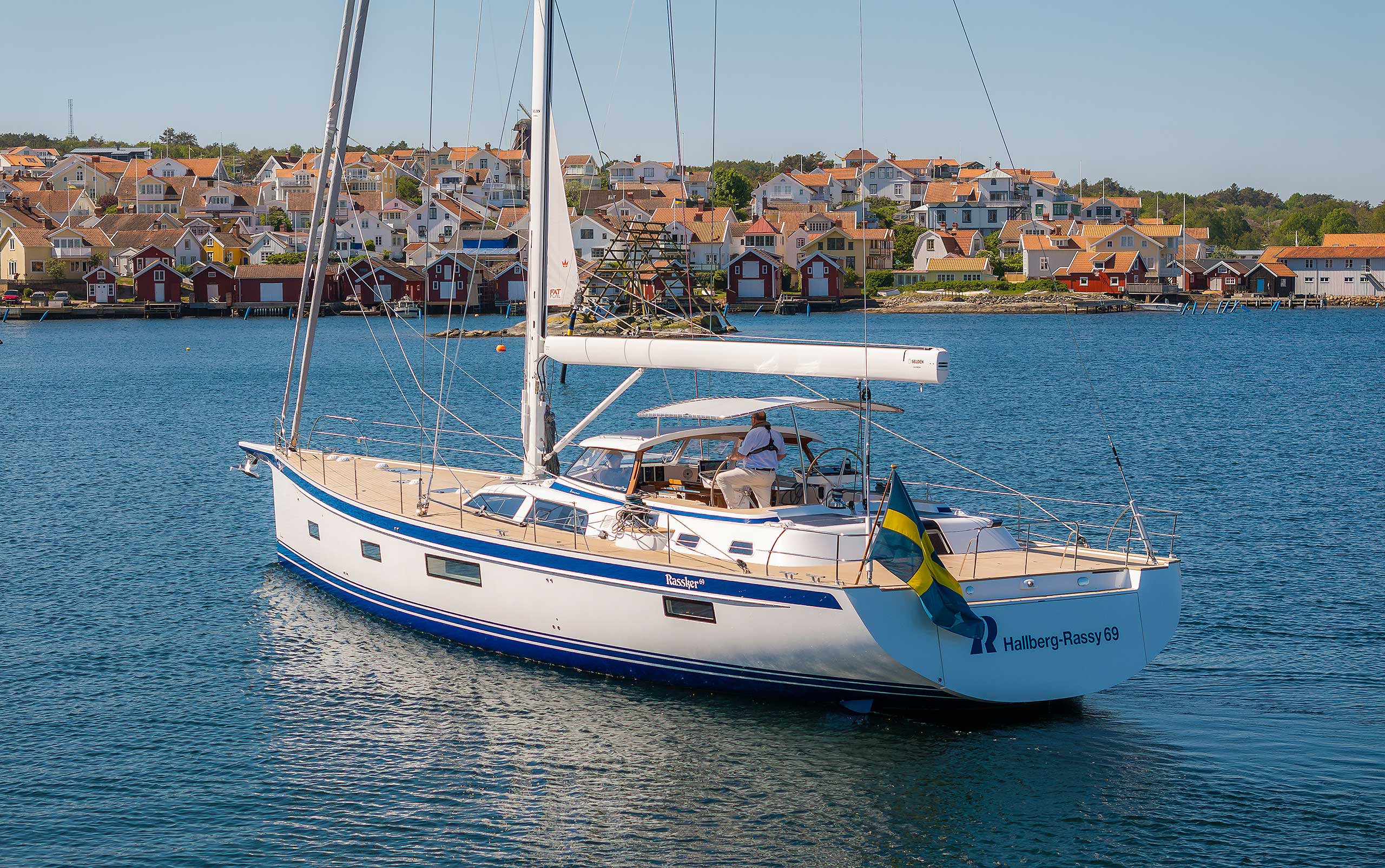

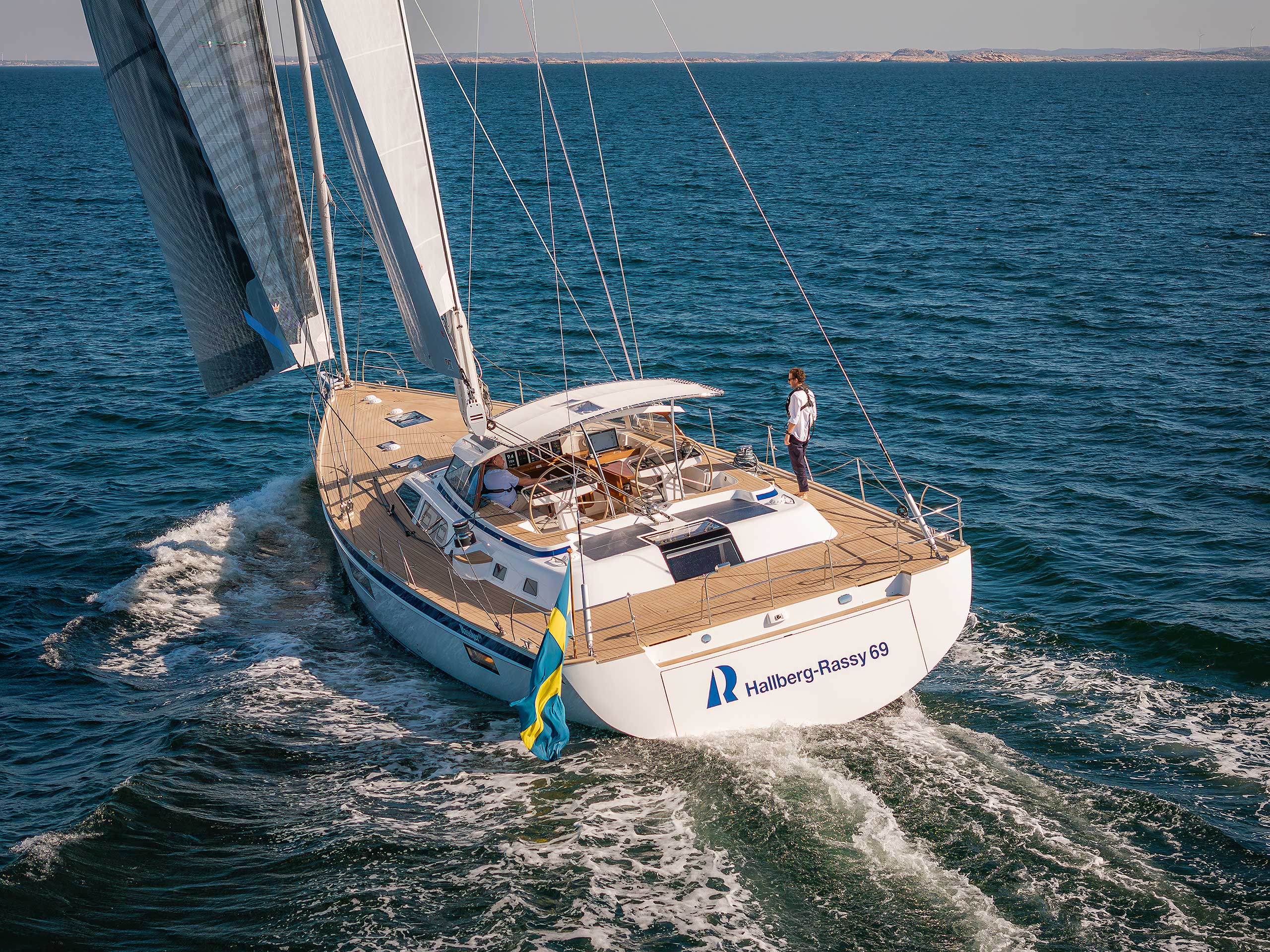

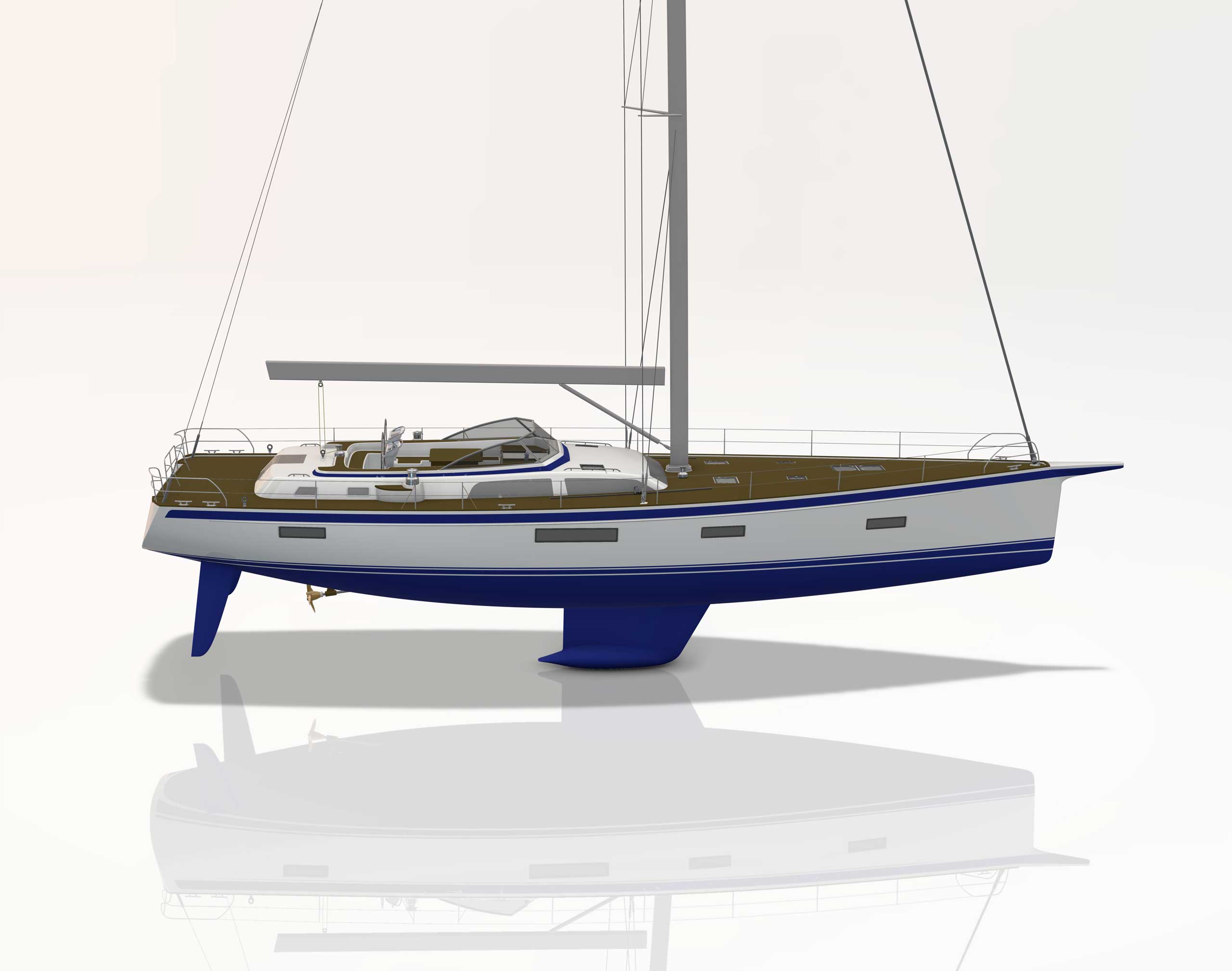

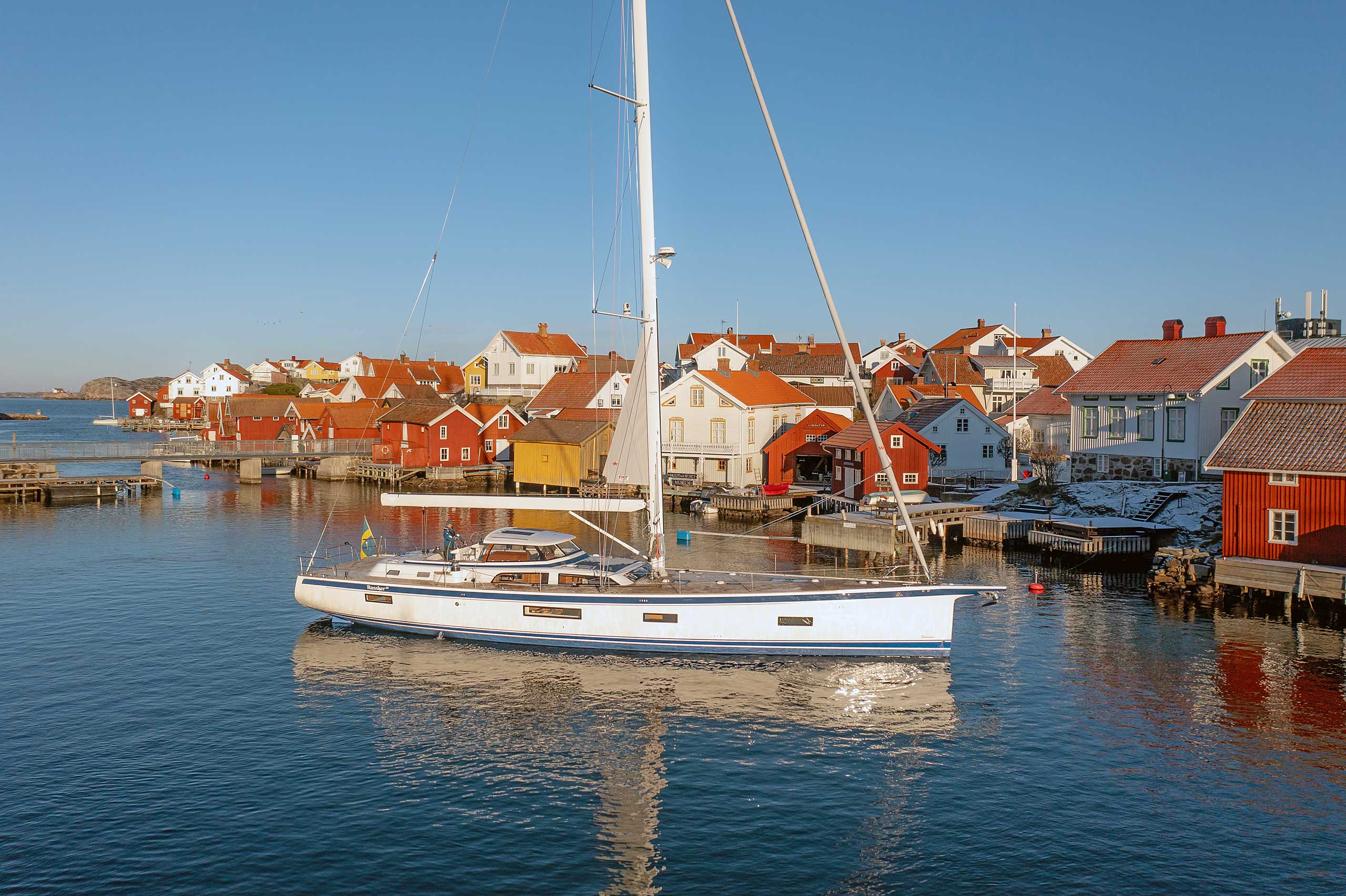

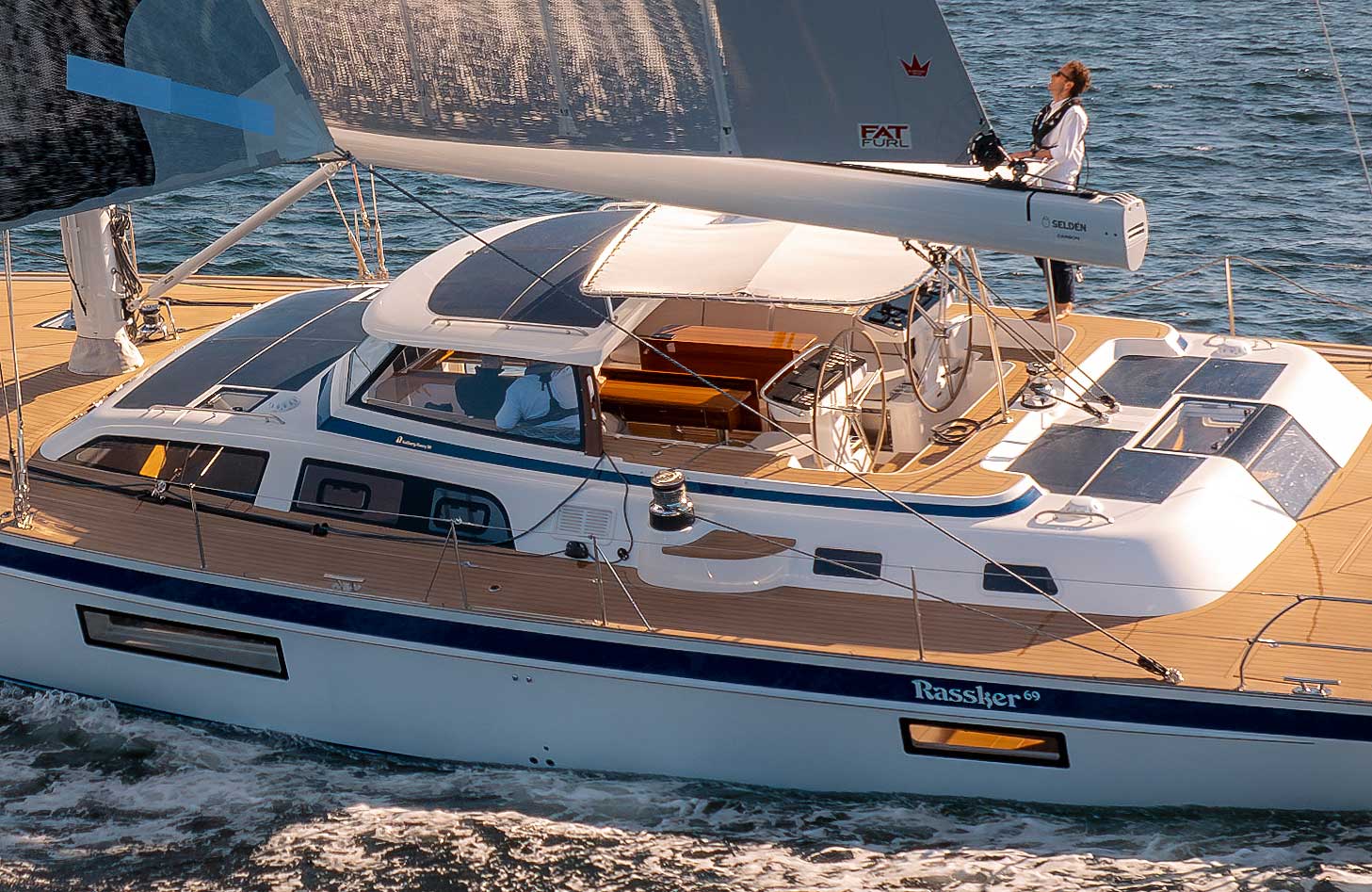

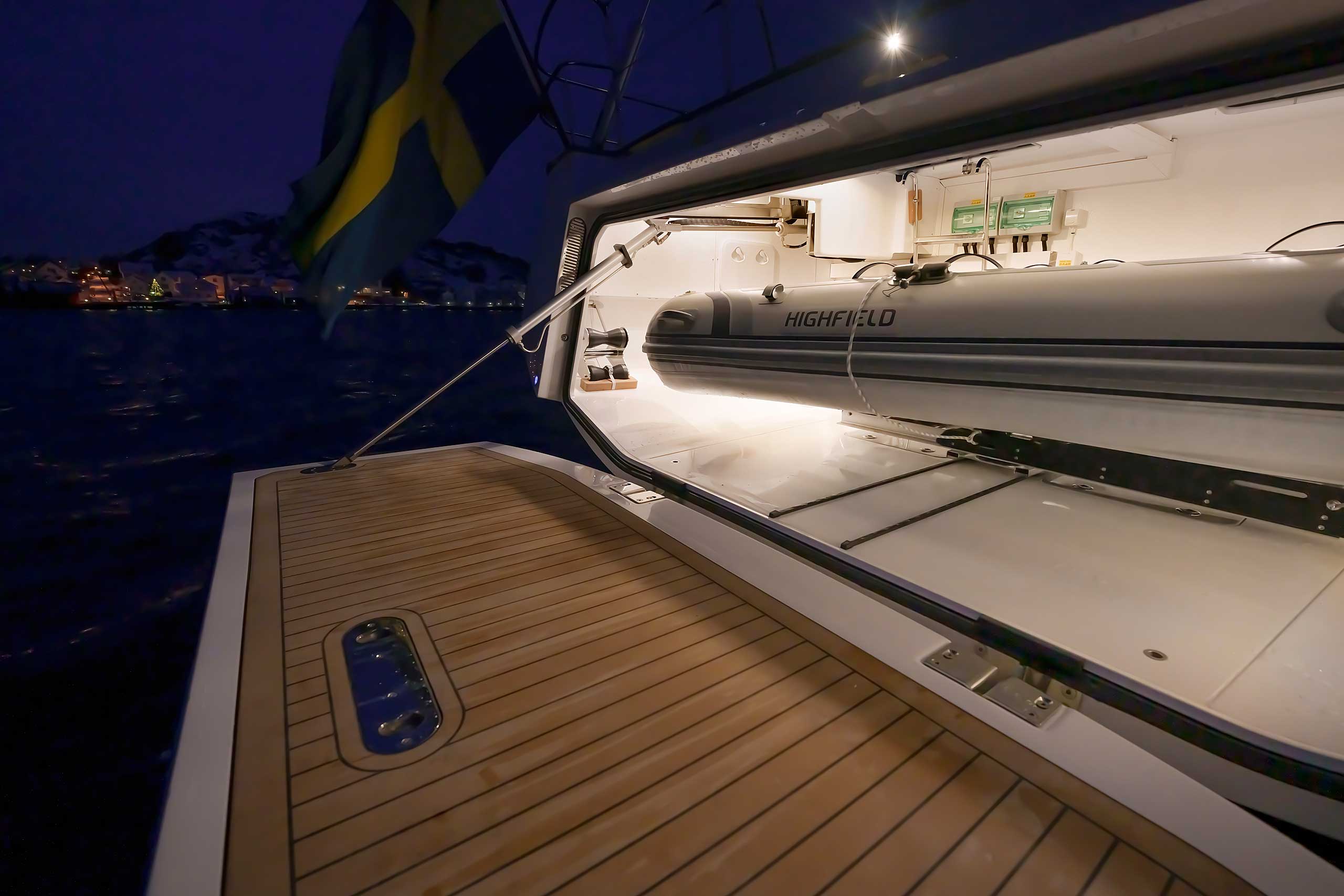

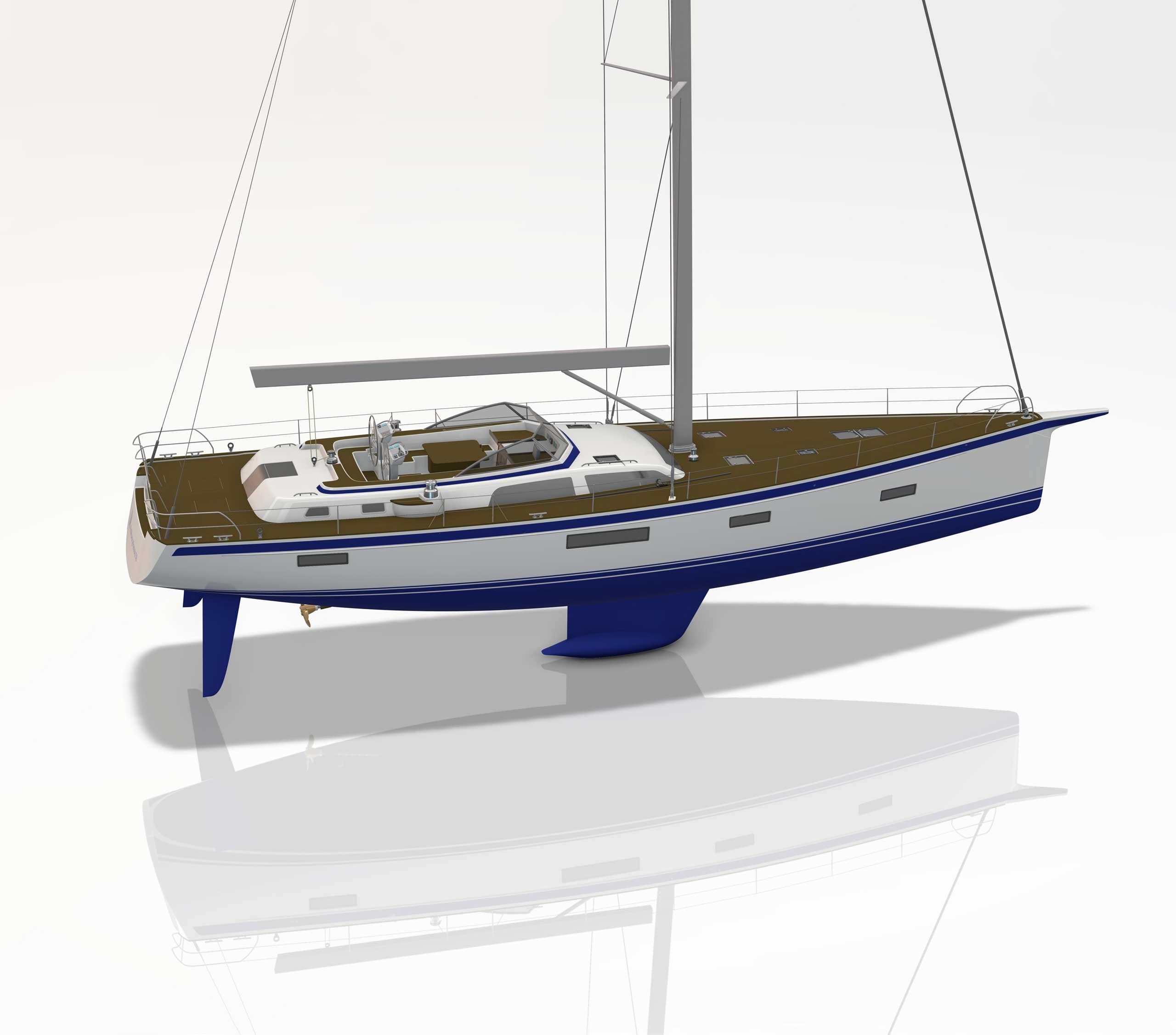

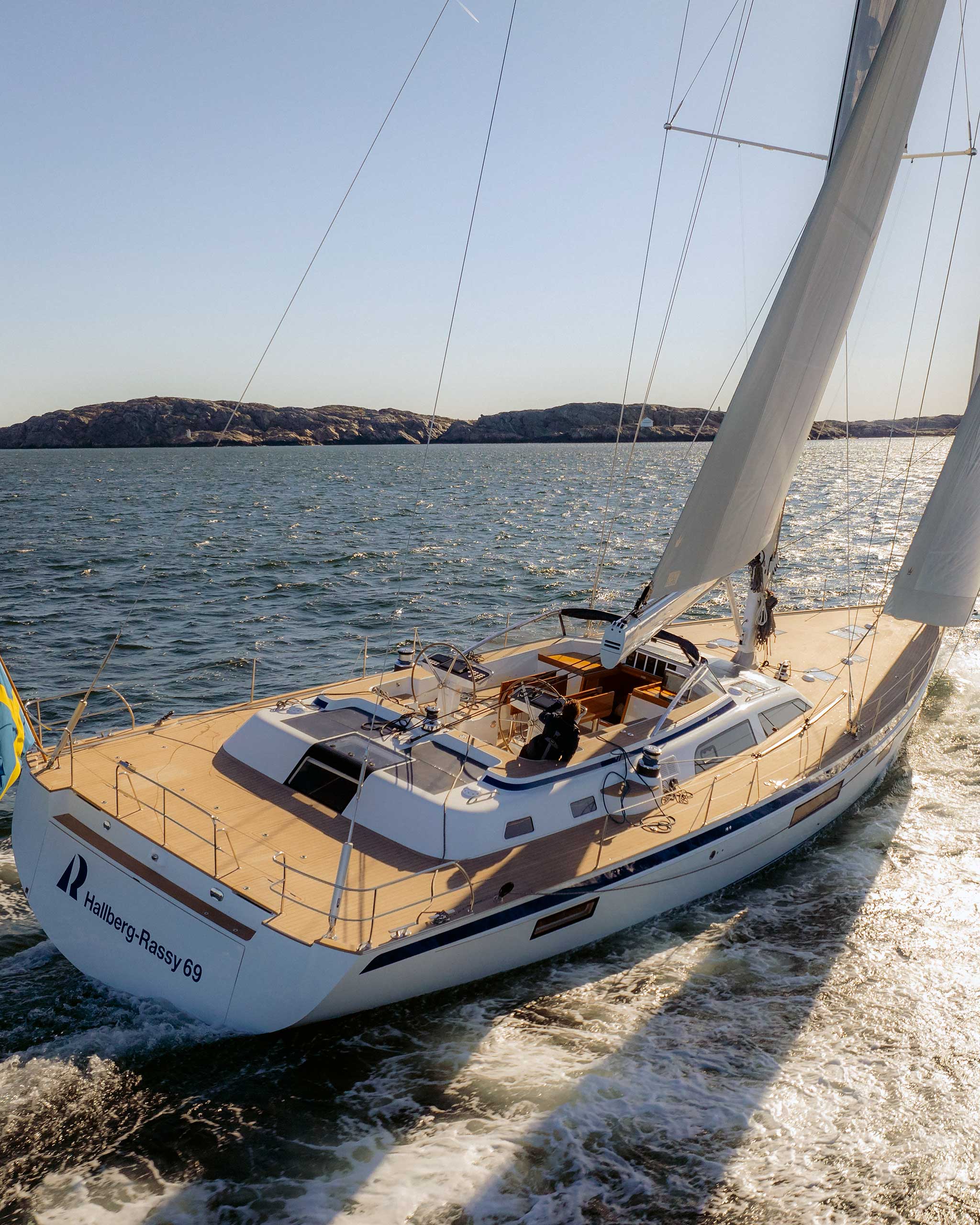

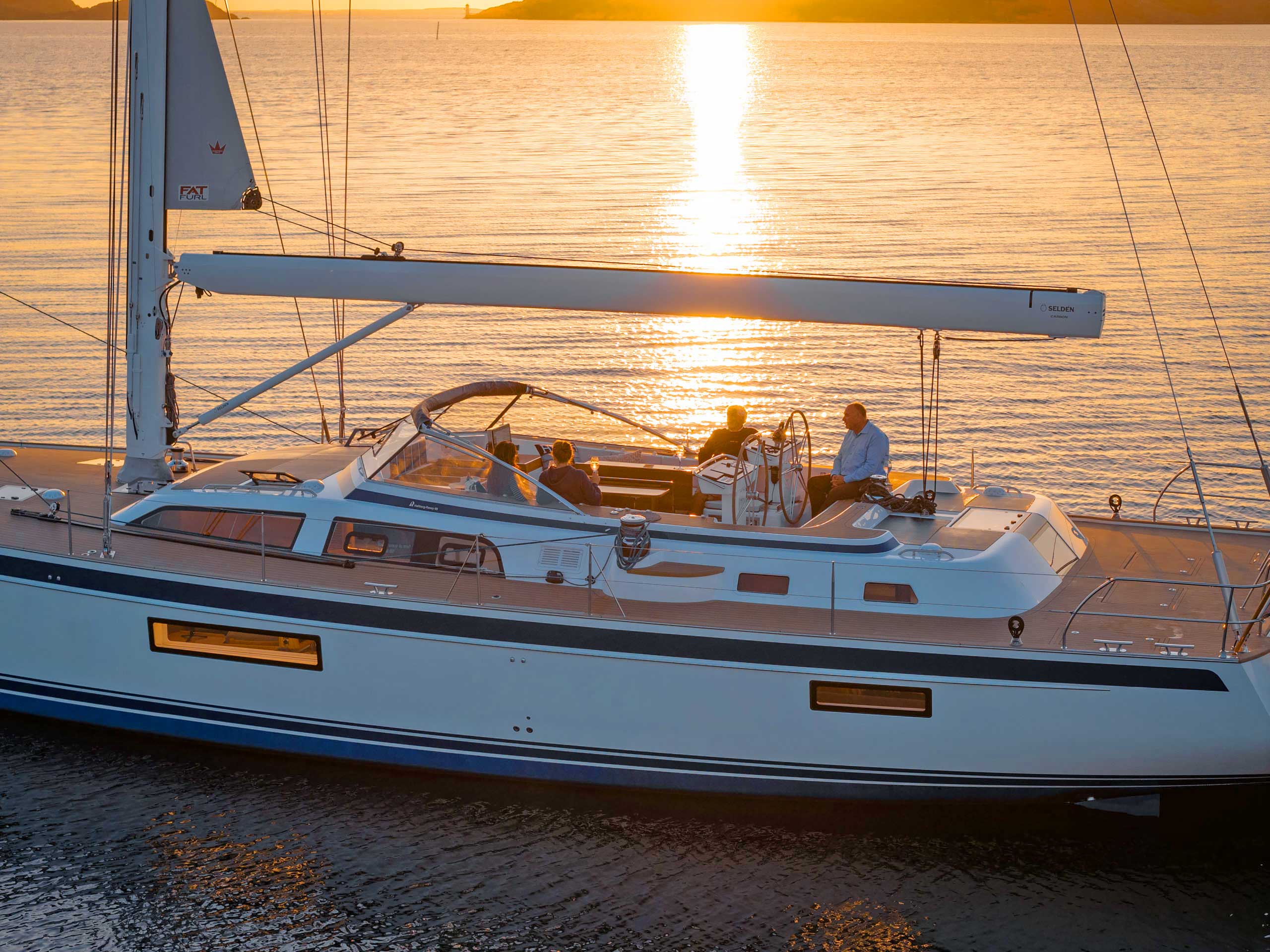

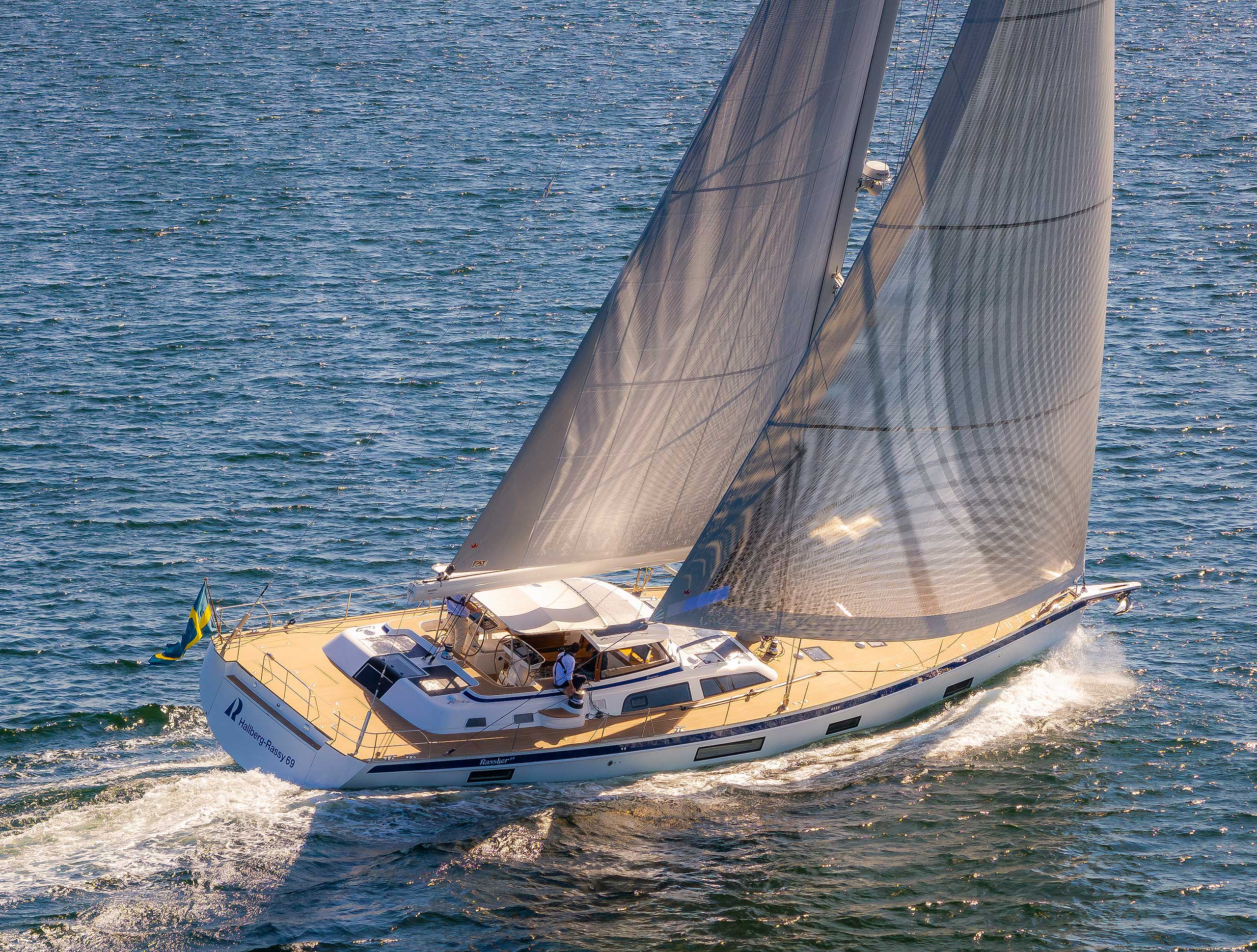

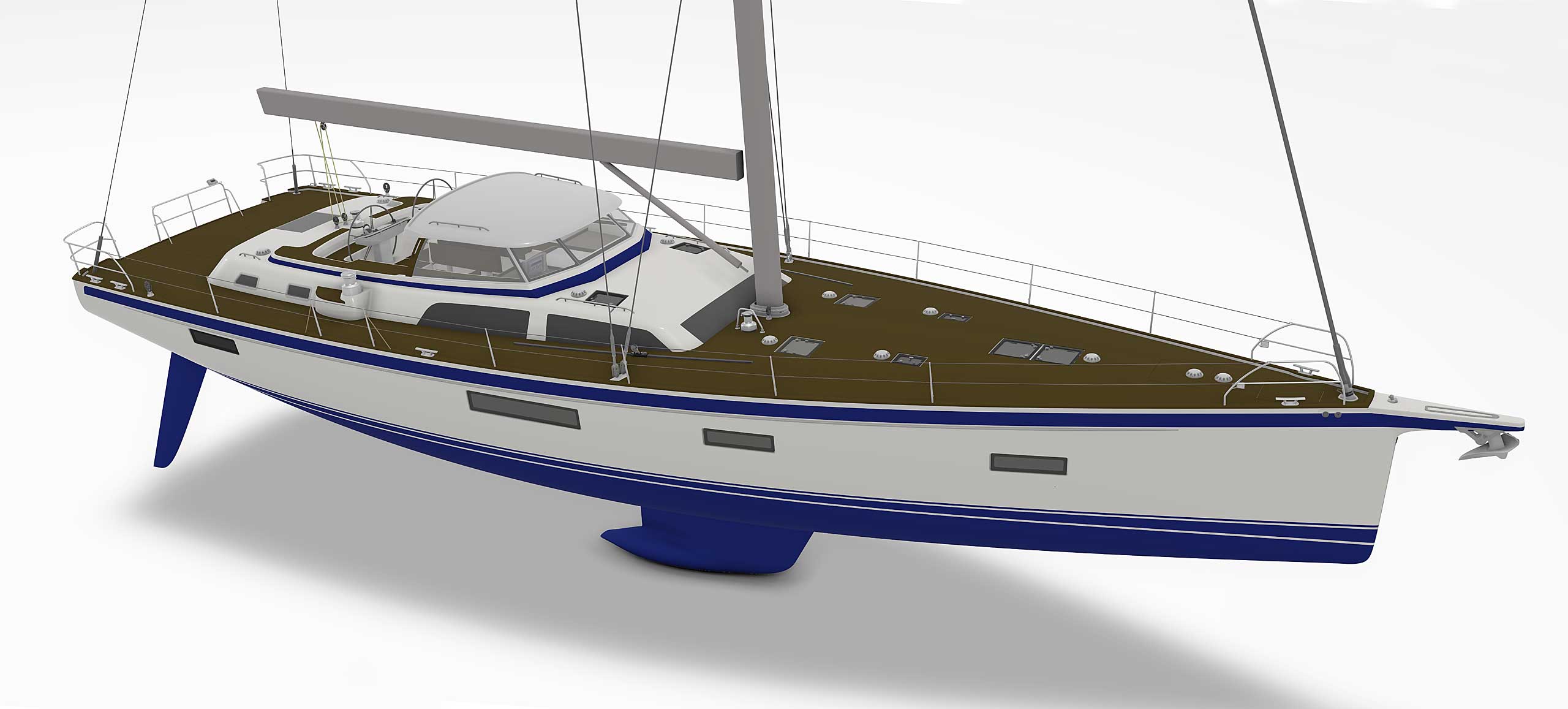

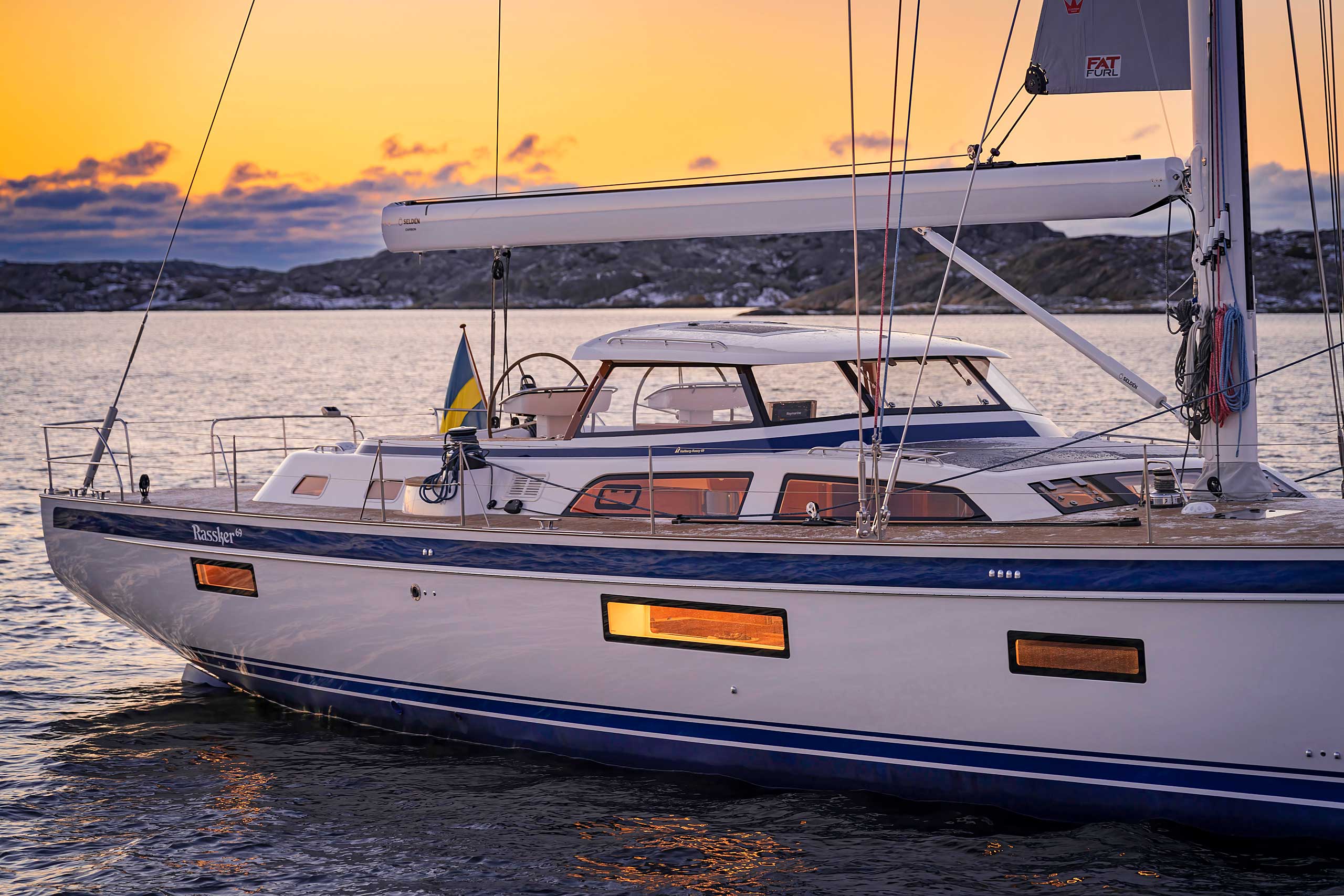

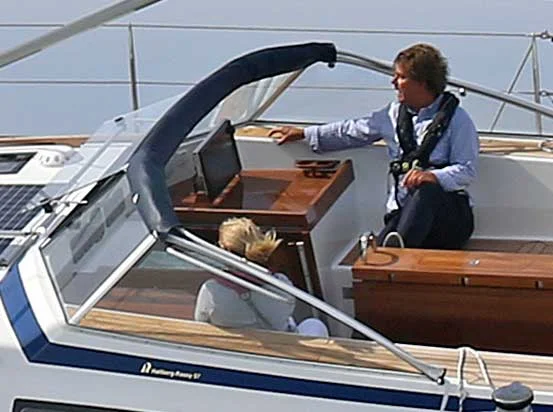

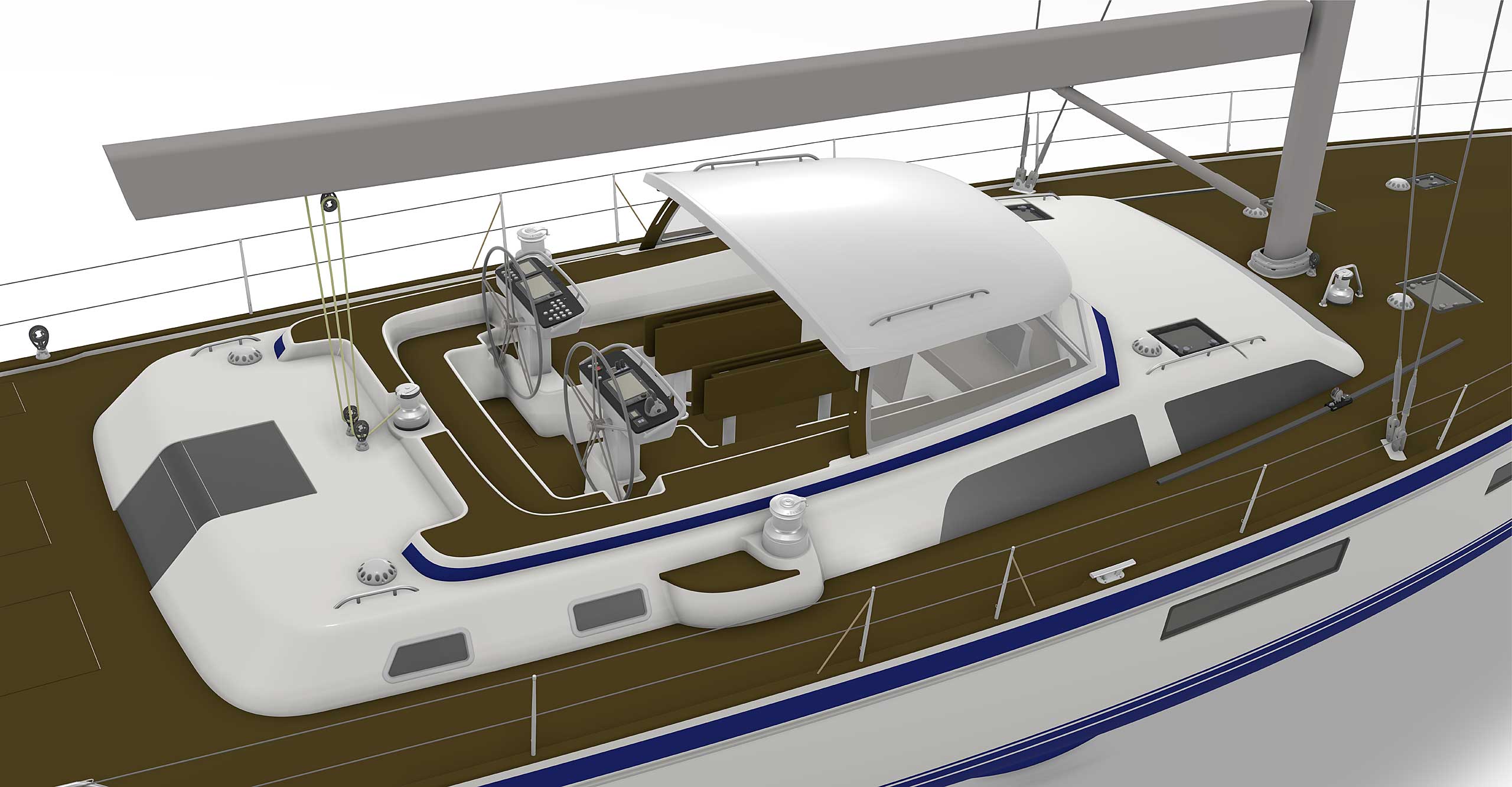

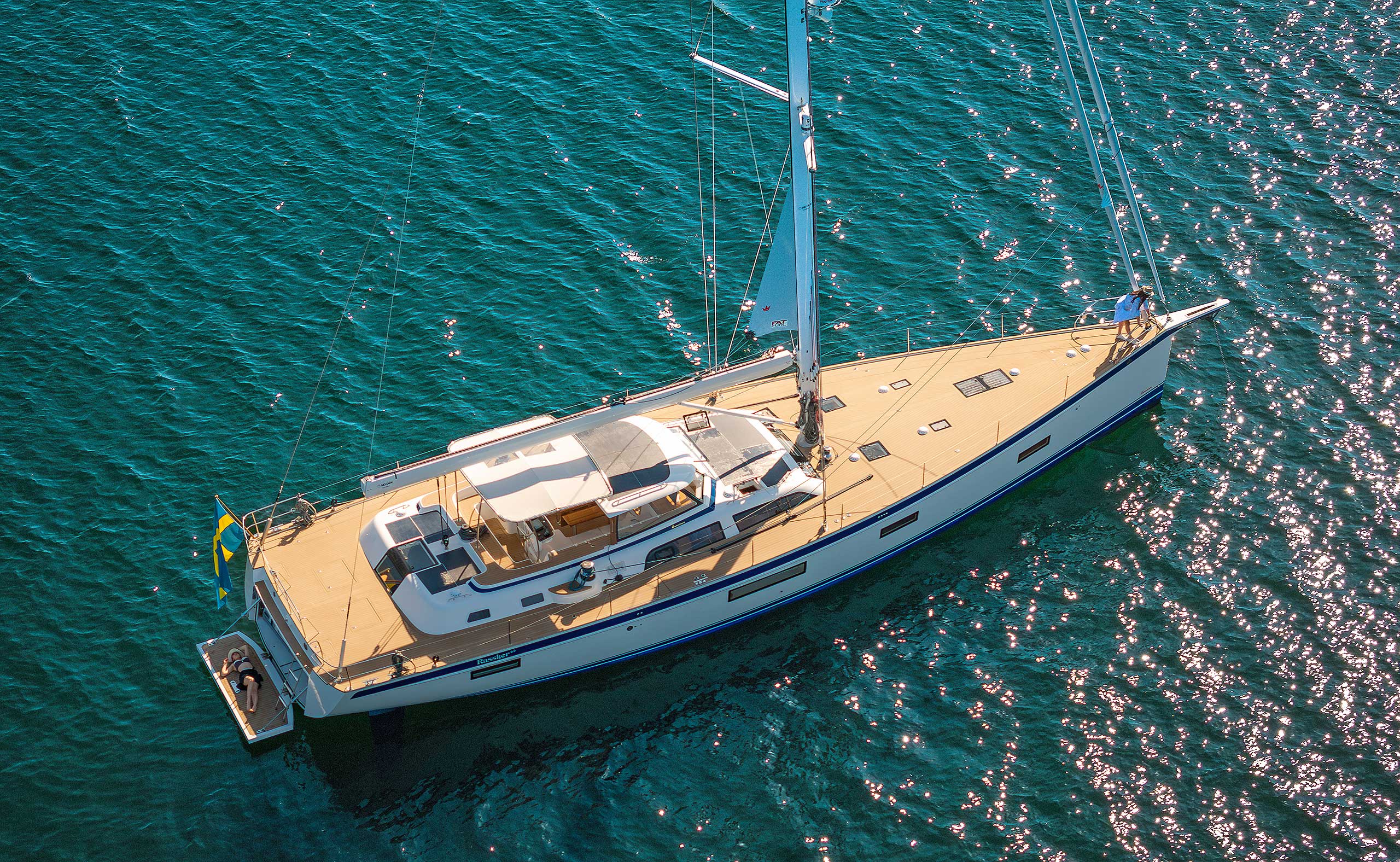

The exterior exudes graceful elegance with its sweeping lines. The deck is unusually clean and completely flushed forward of the mast. The 14.8 cubic meters of deck locker spaces are huge. The long cockpit has two L-shaped sofas, a large and solid wooden cockpit table in high-gloss varnish. There is an optional cockpit fridge. The cockpit is well protected by the Hallberg-Rassy-typical windshield or hardtop. The helmsman’s position is unexposed and has good protection through a proper coaming around.

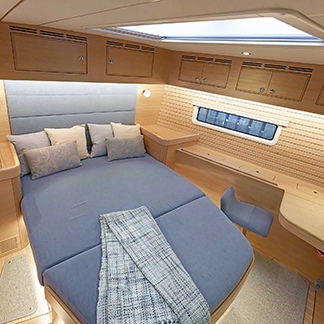

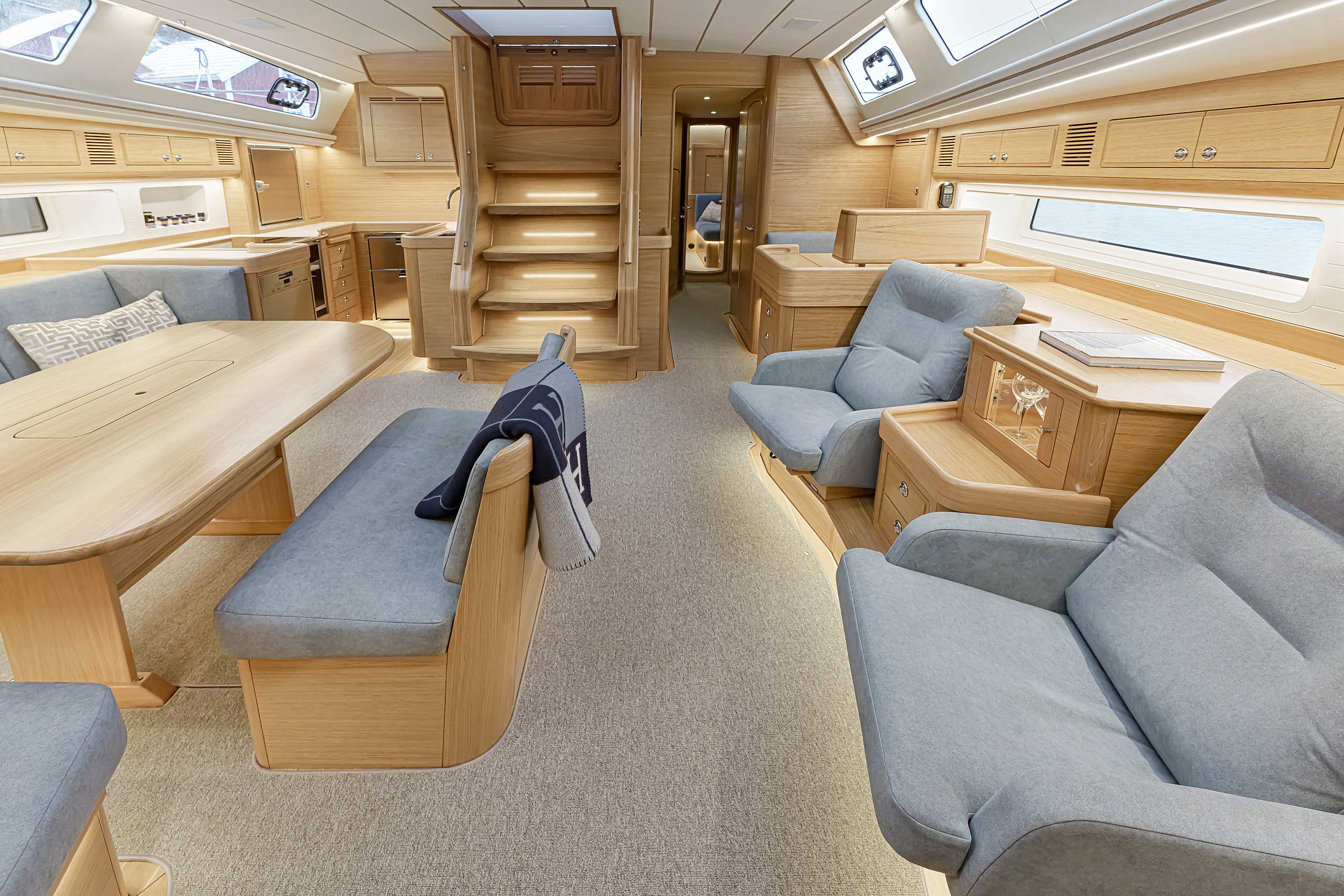

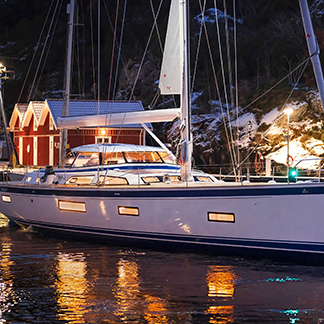

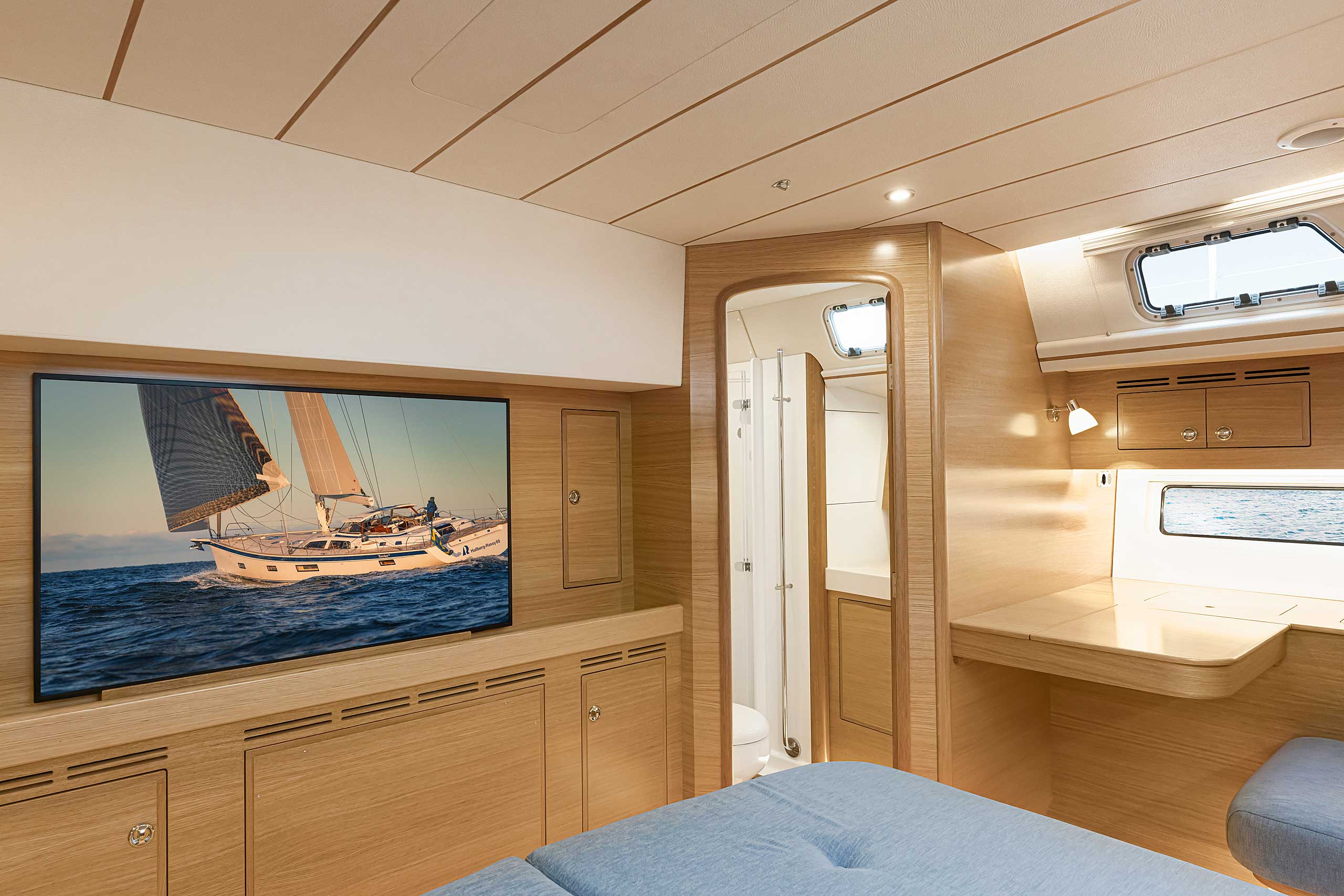

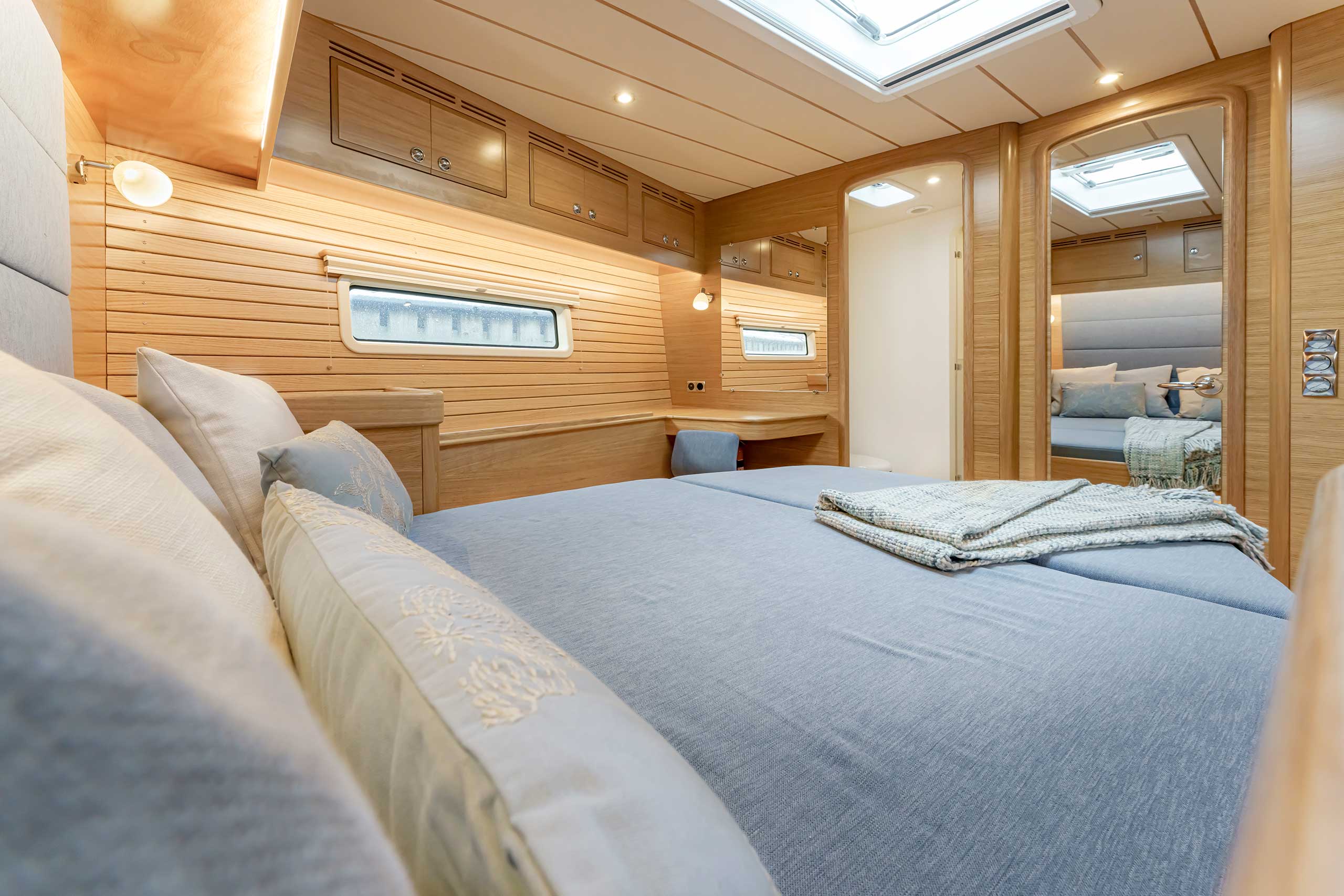

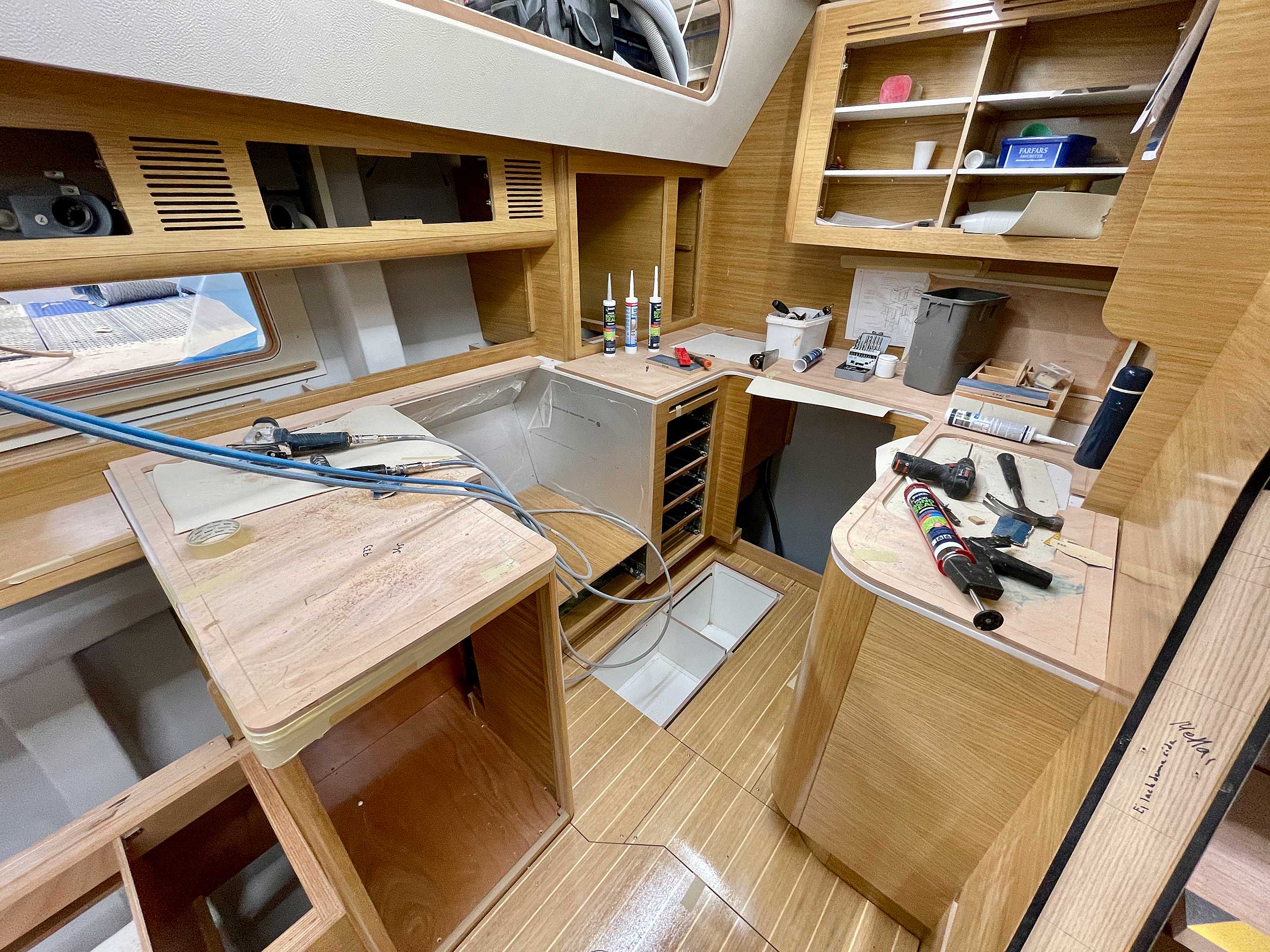

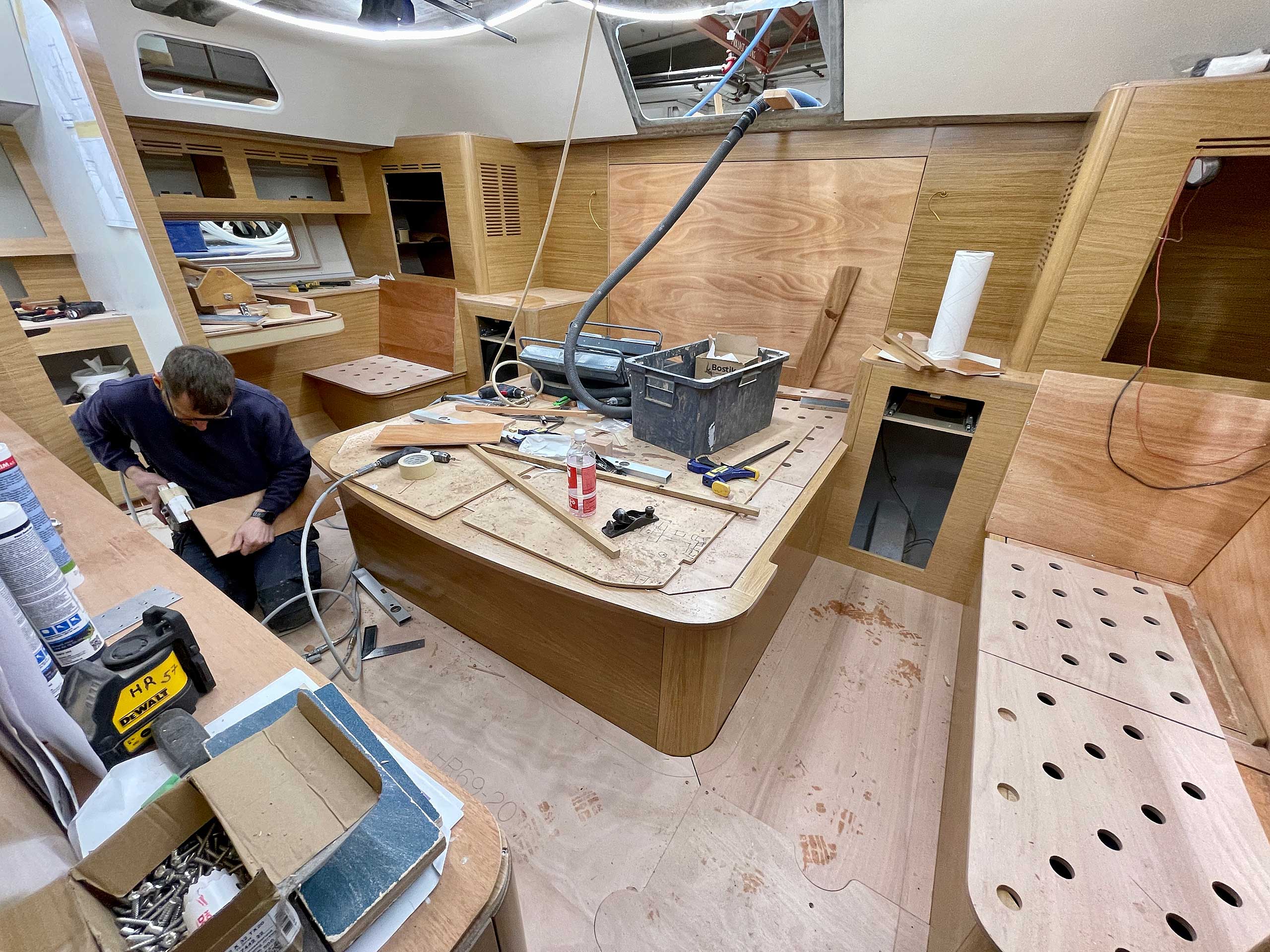

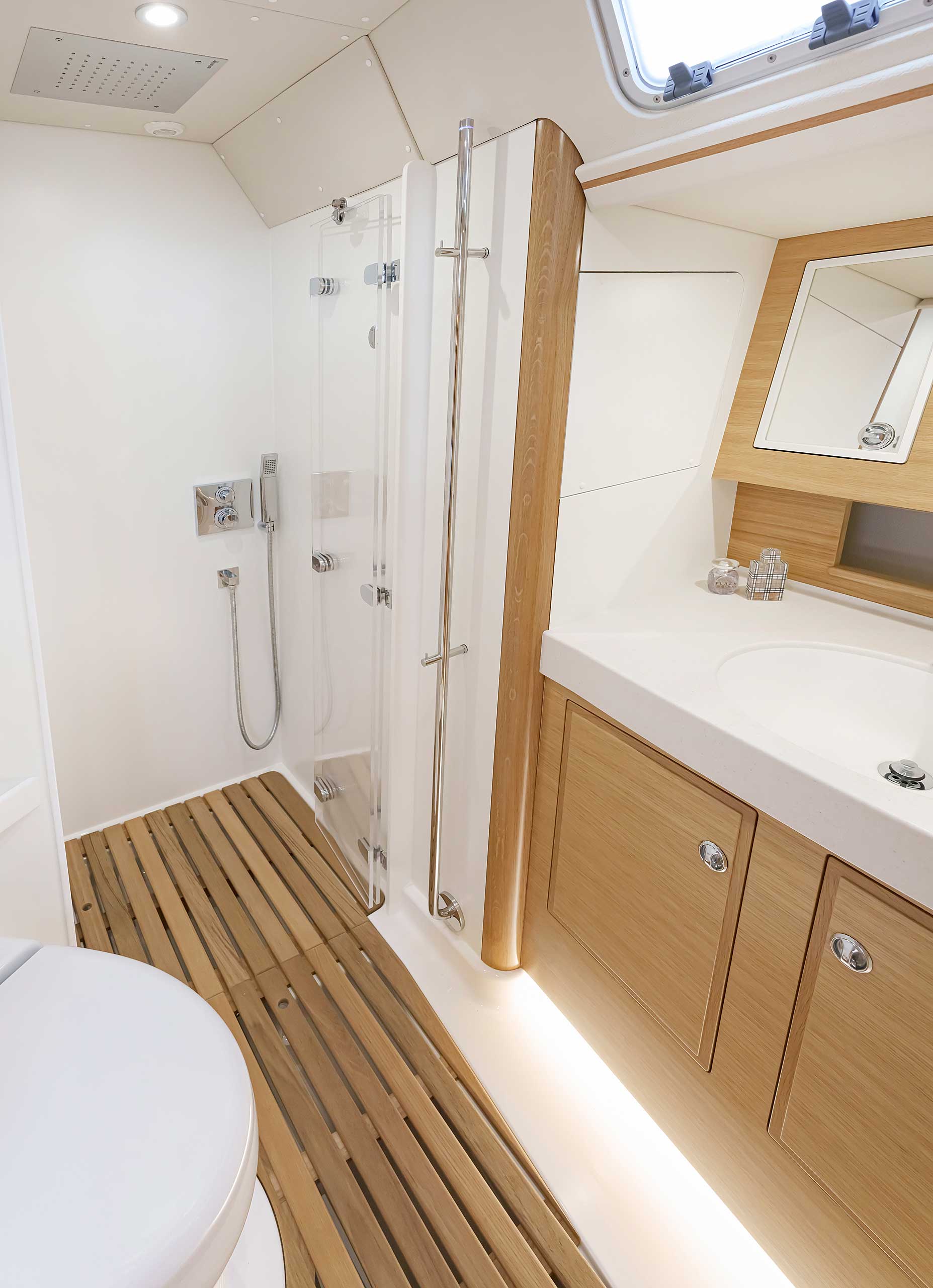

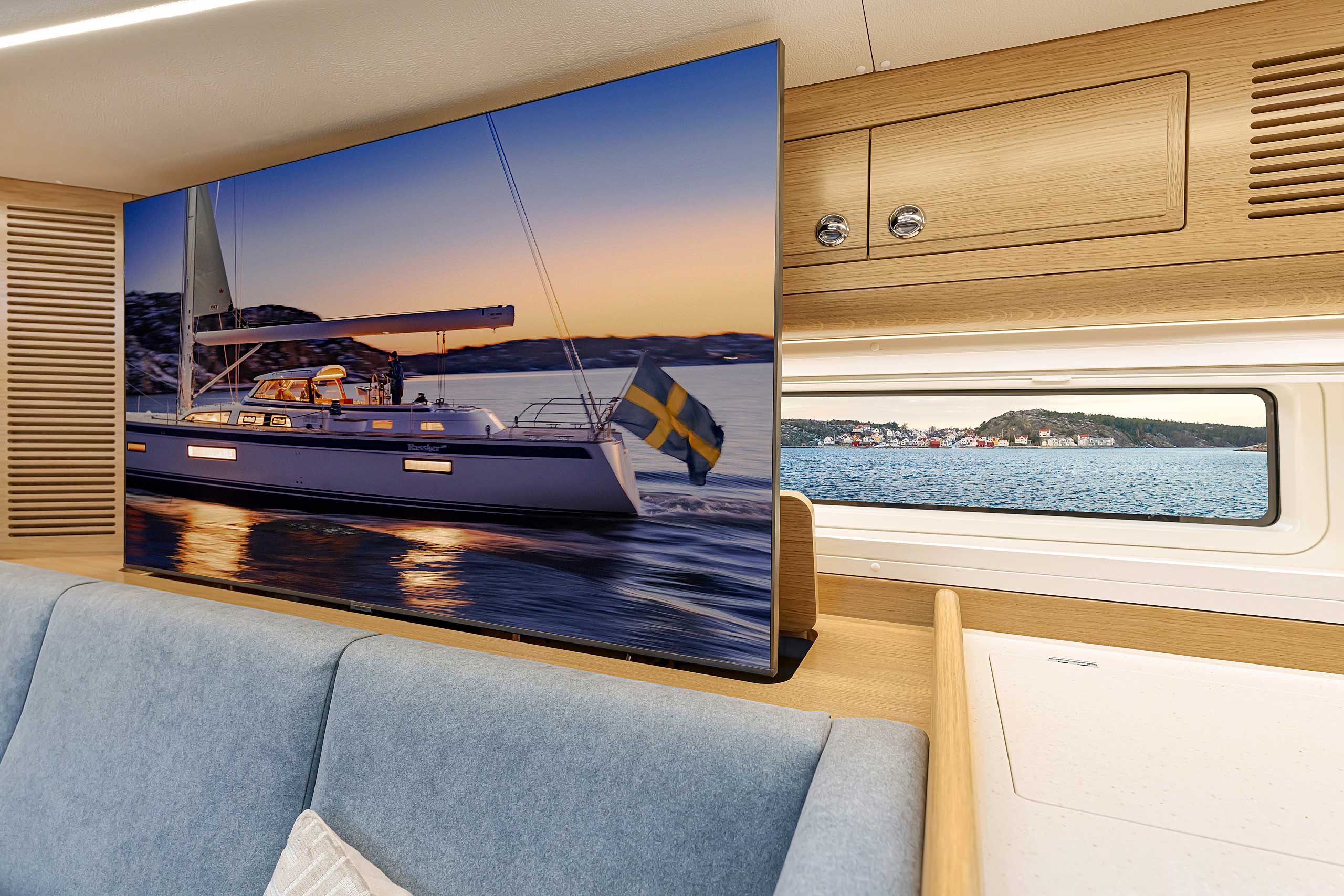

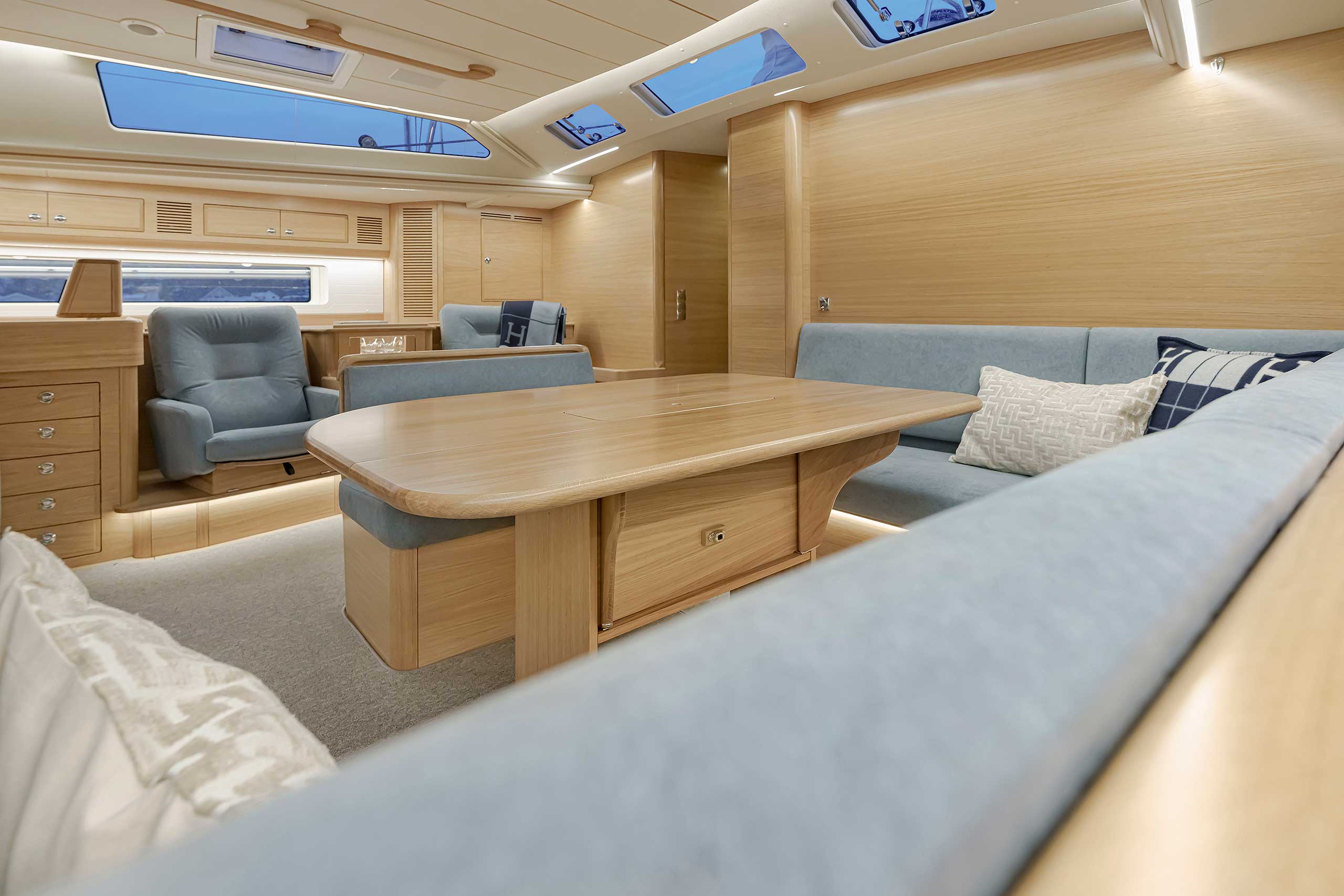

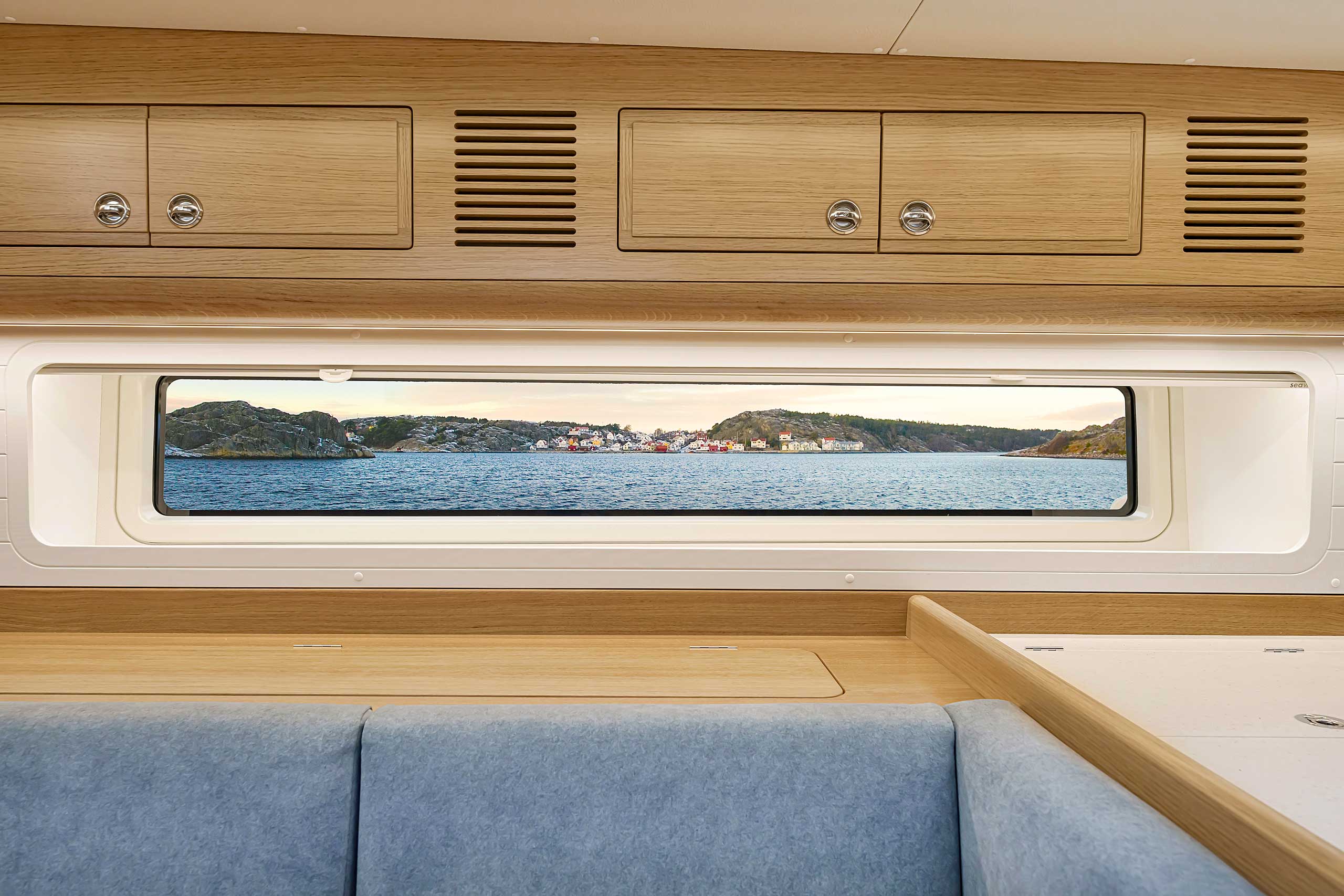

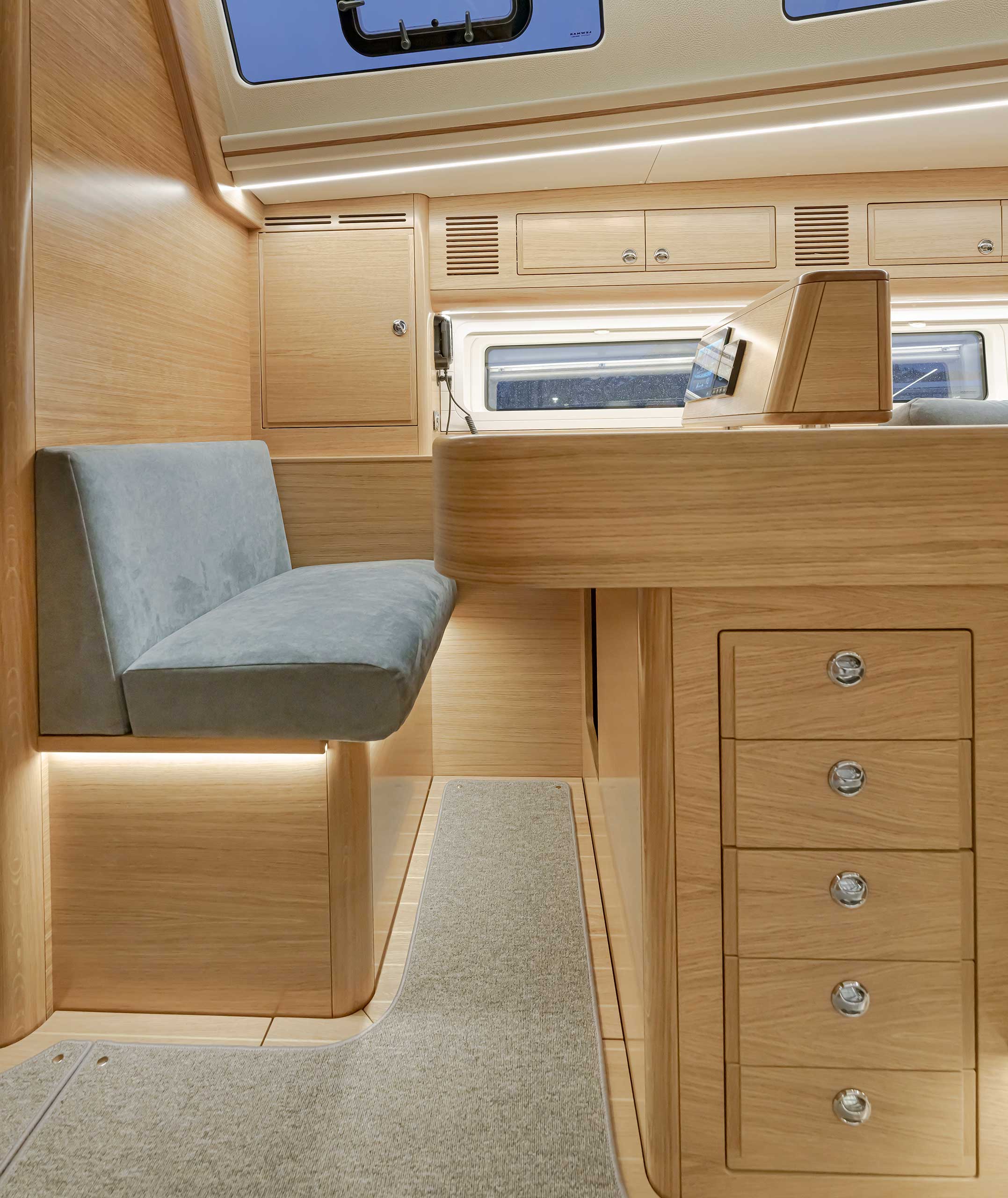

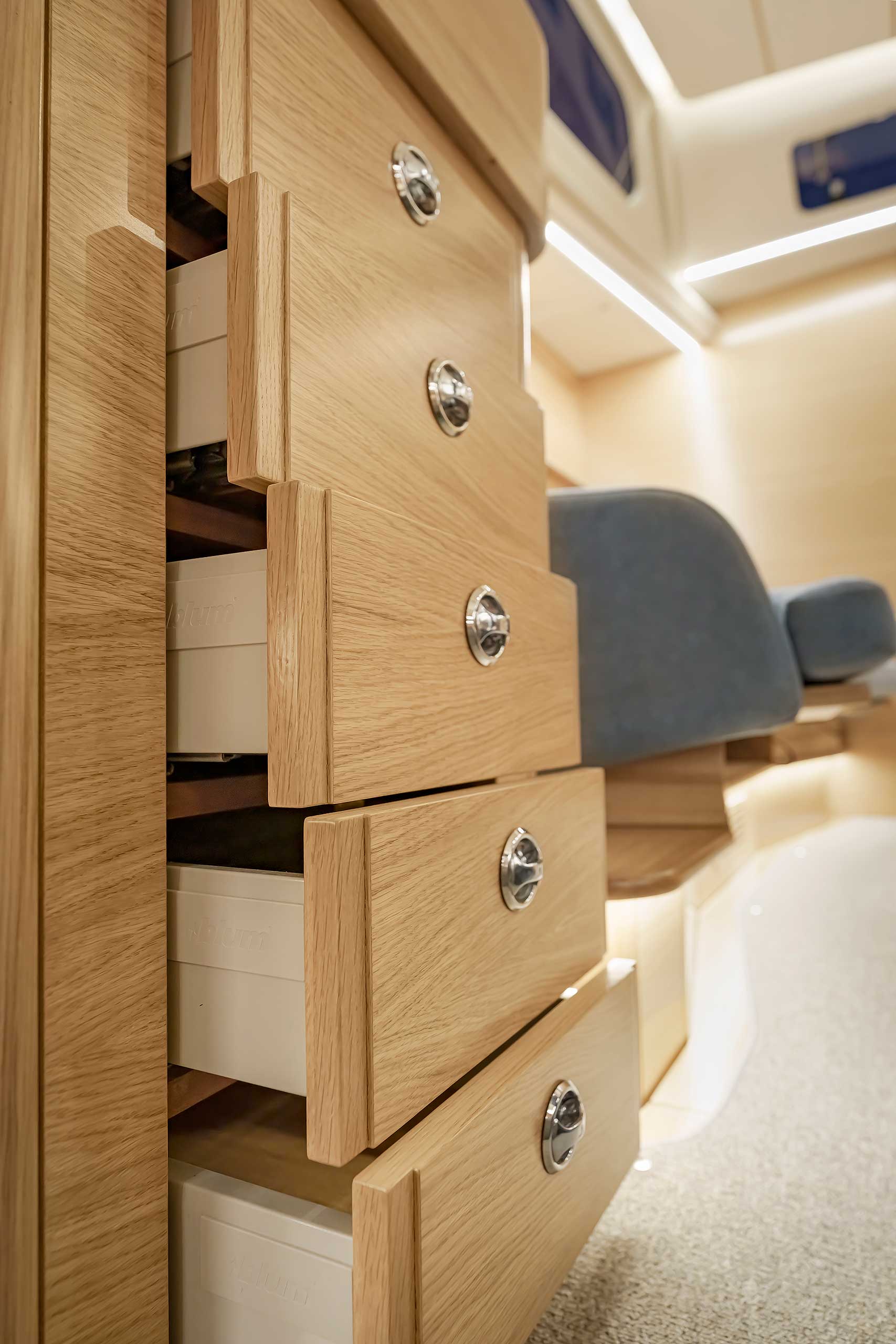

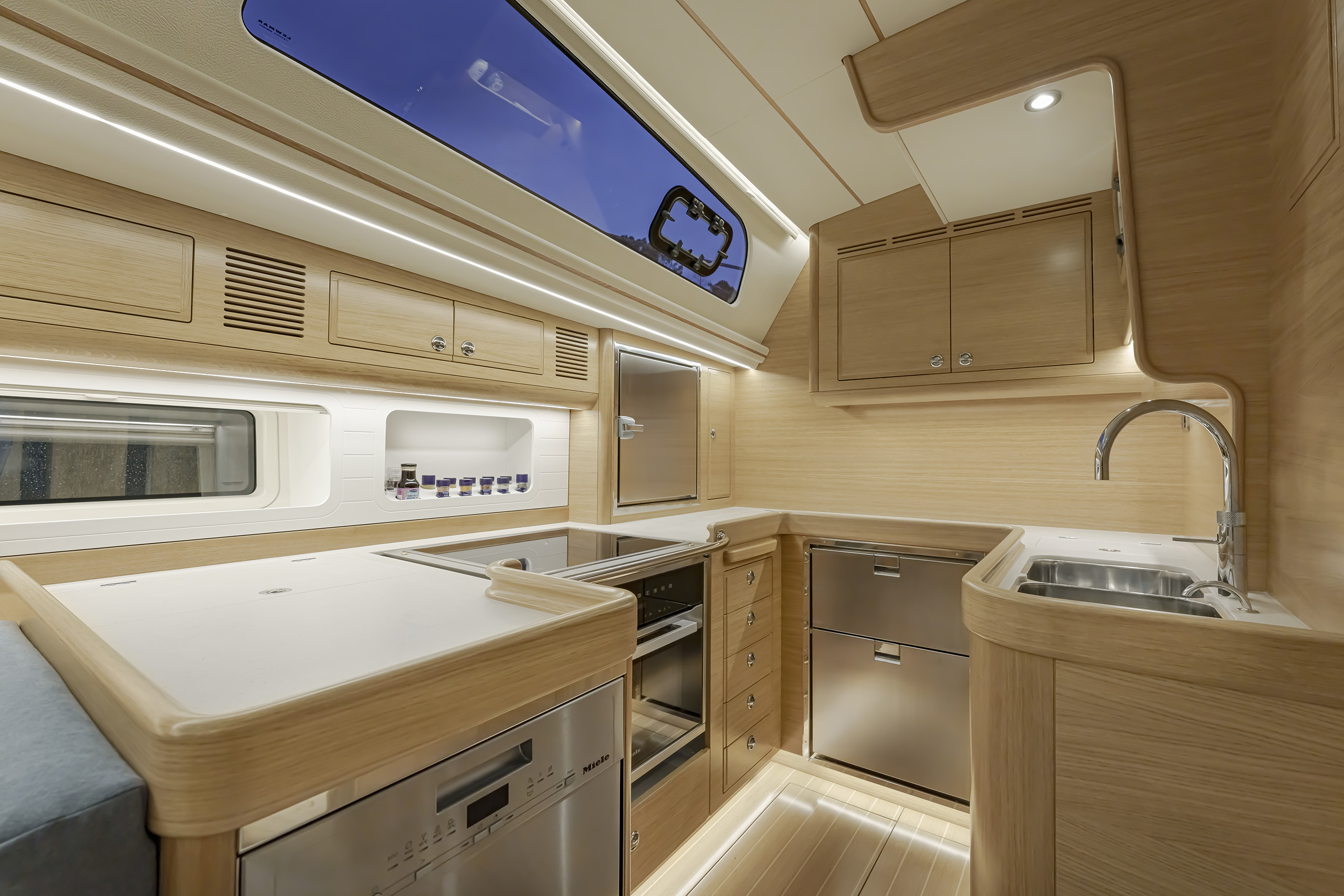

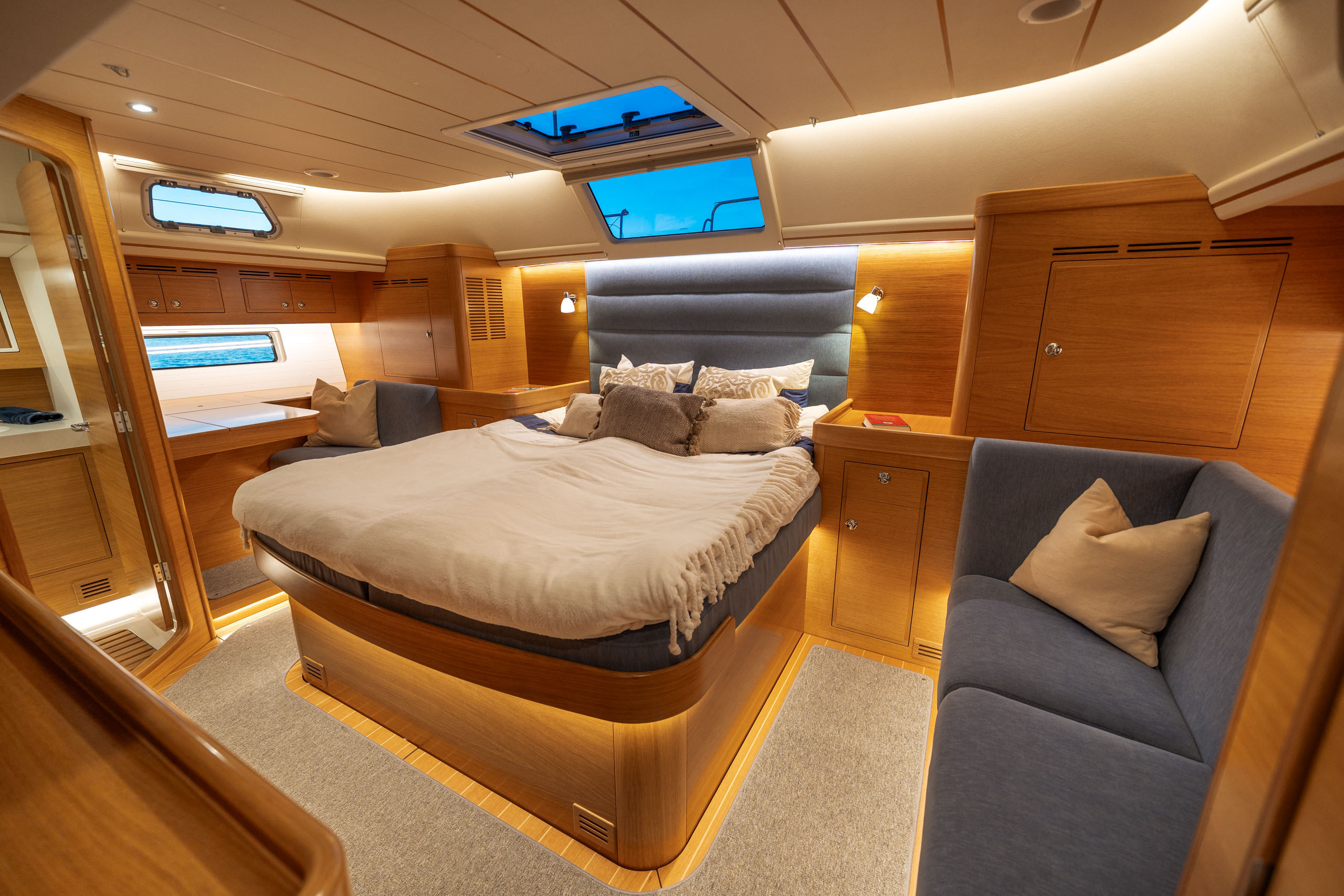

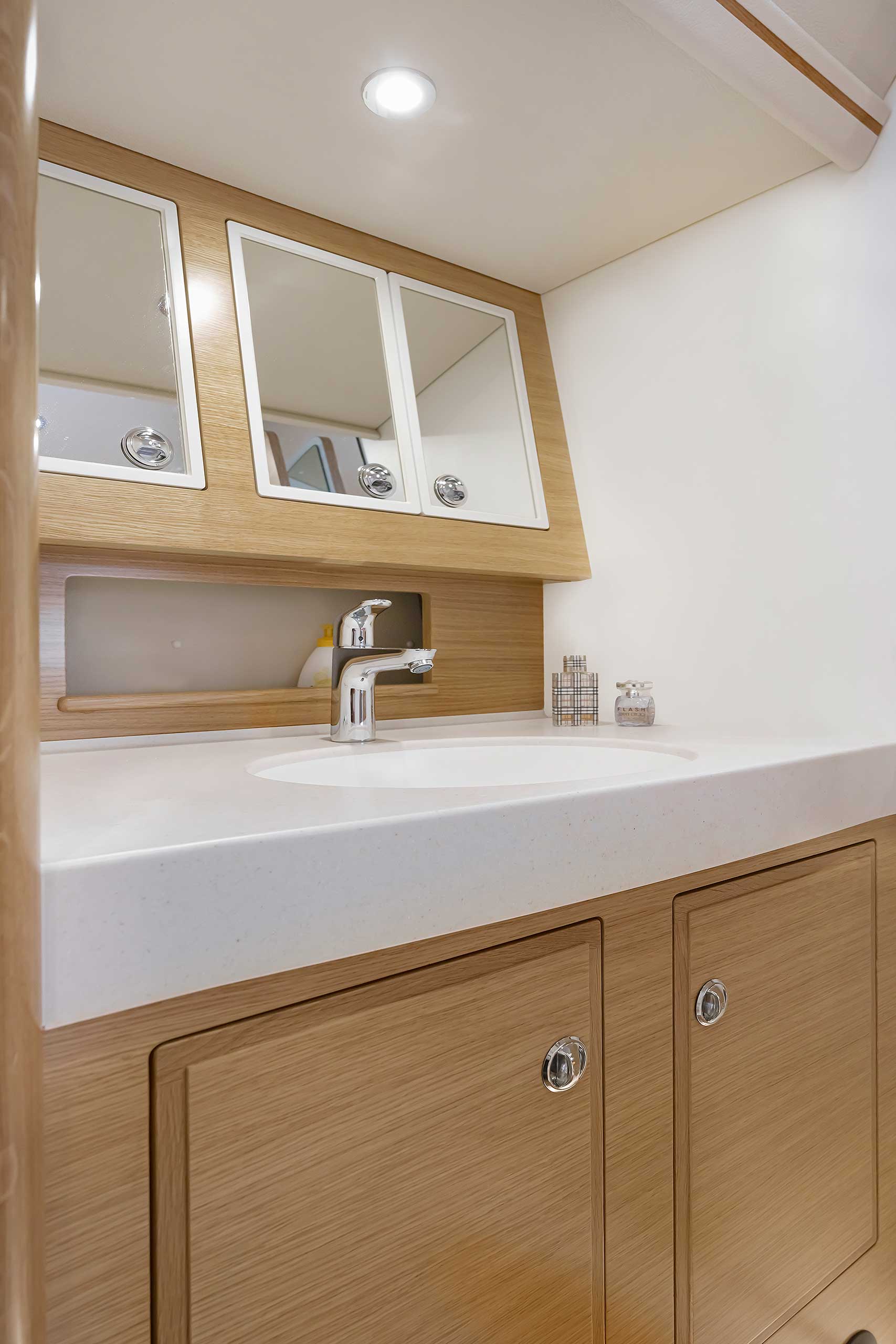

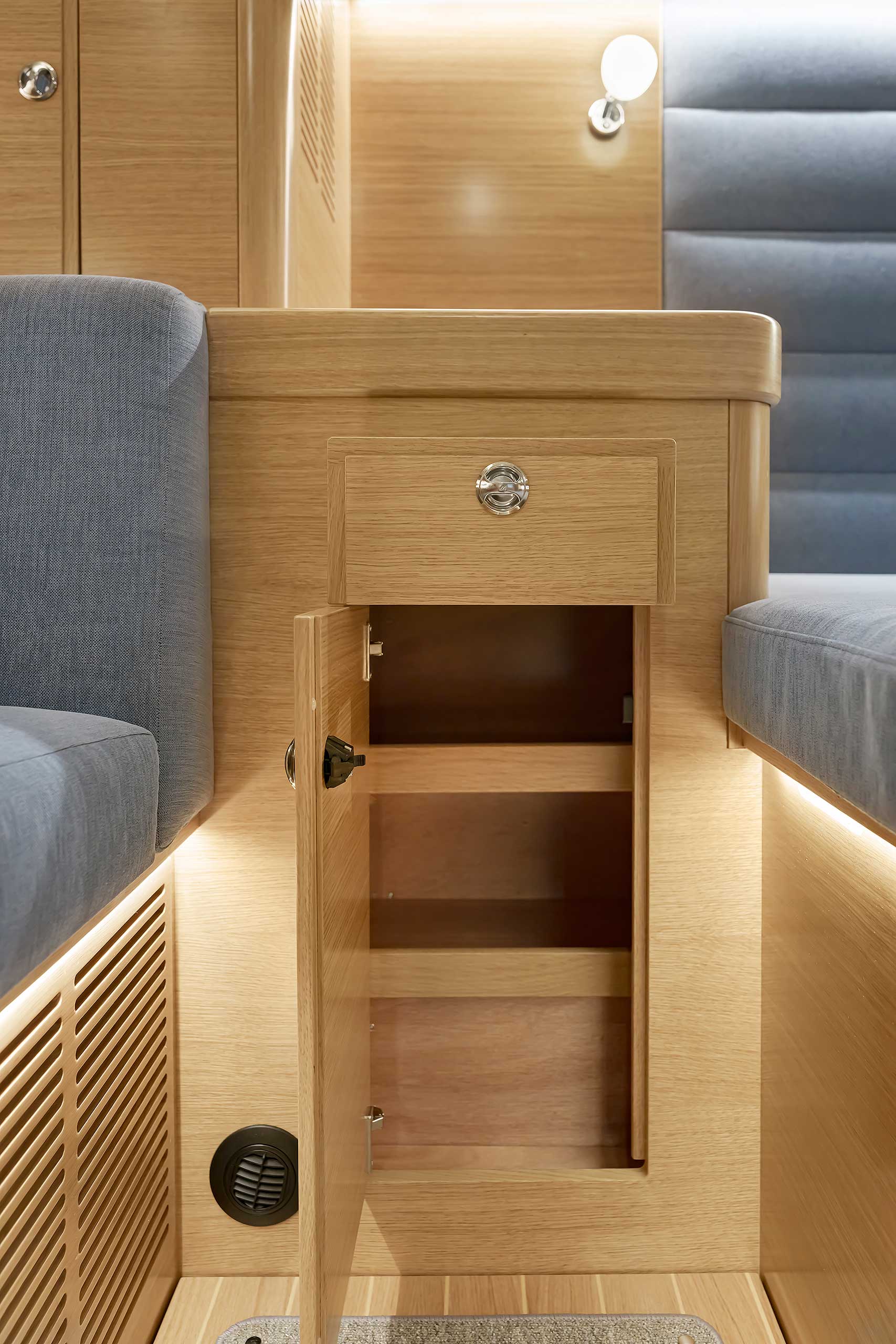

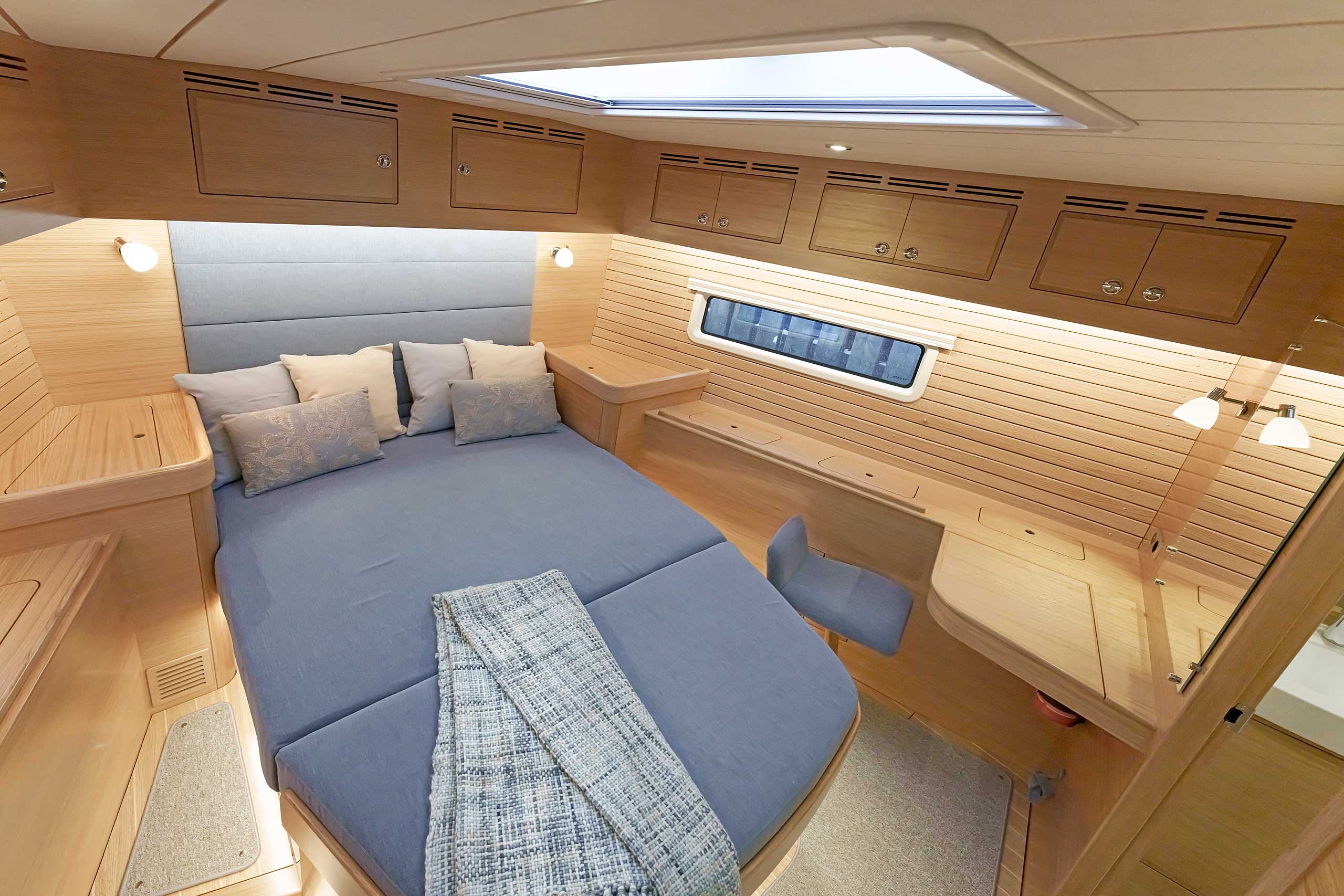

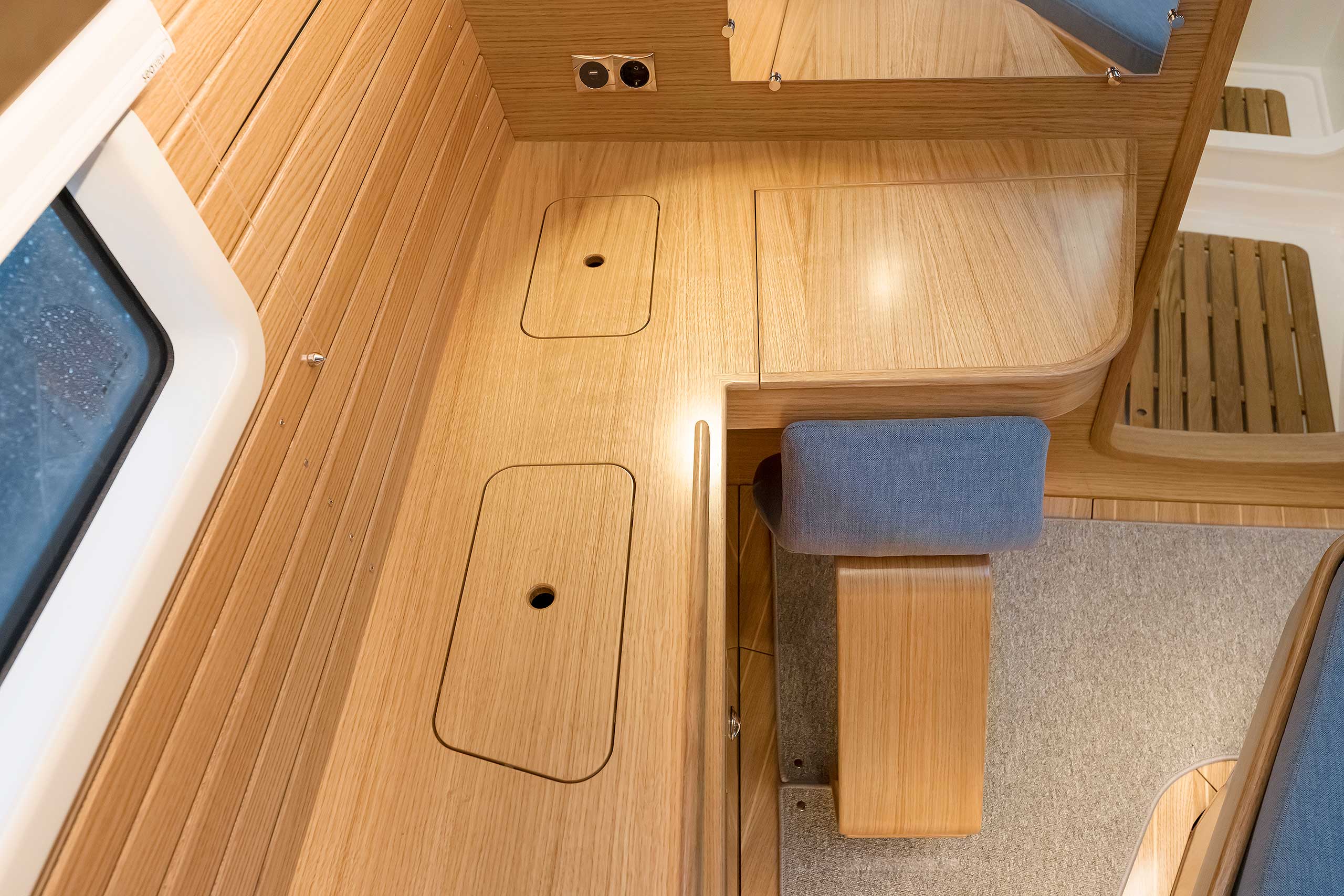

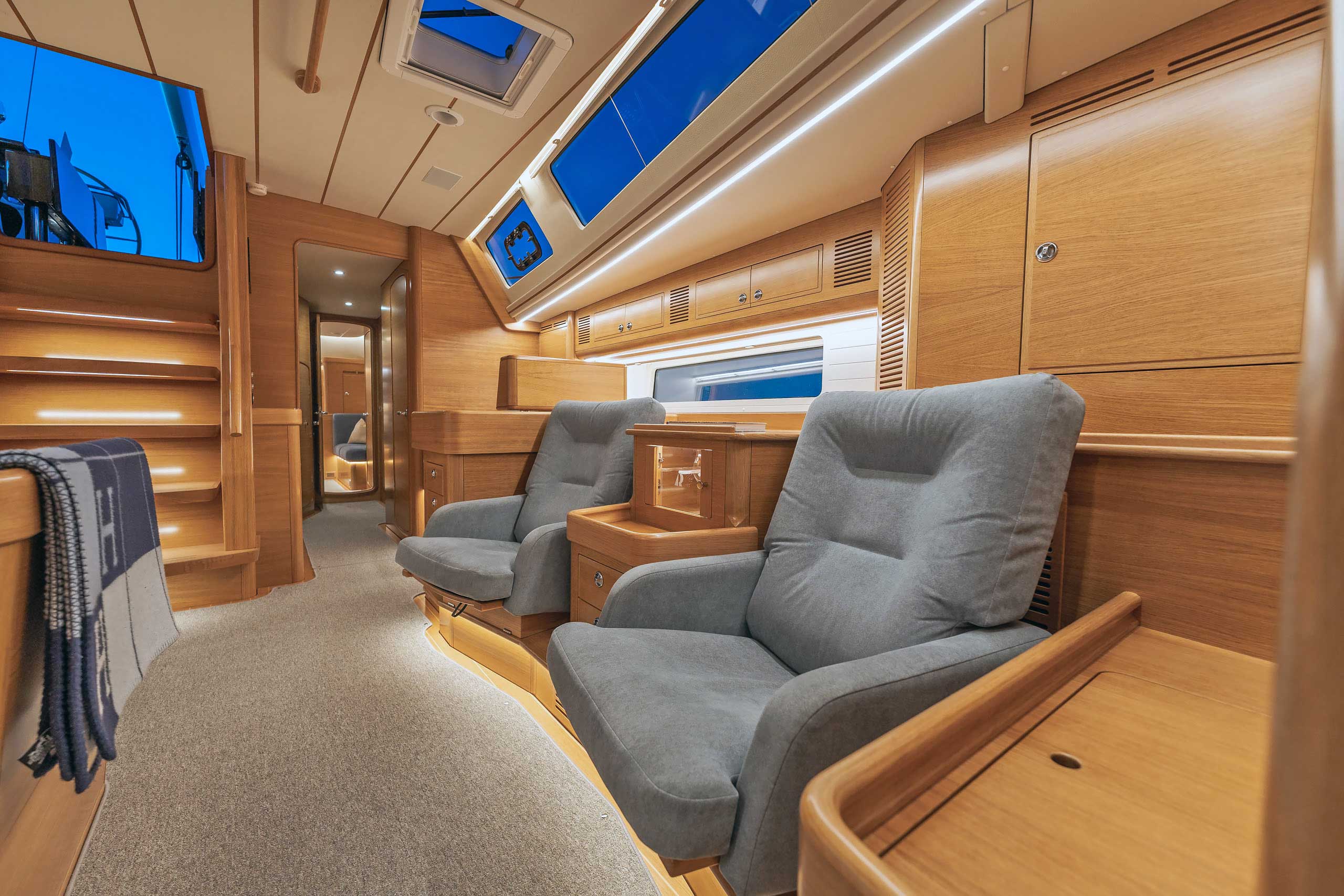

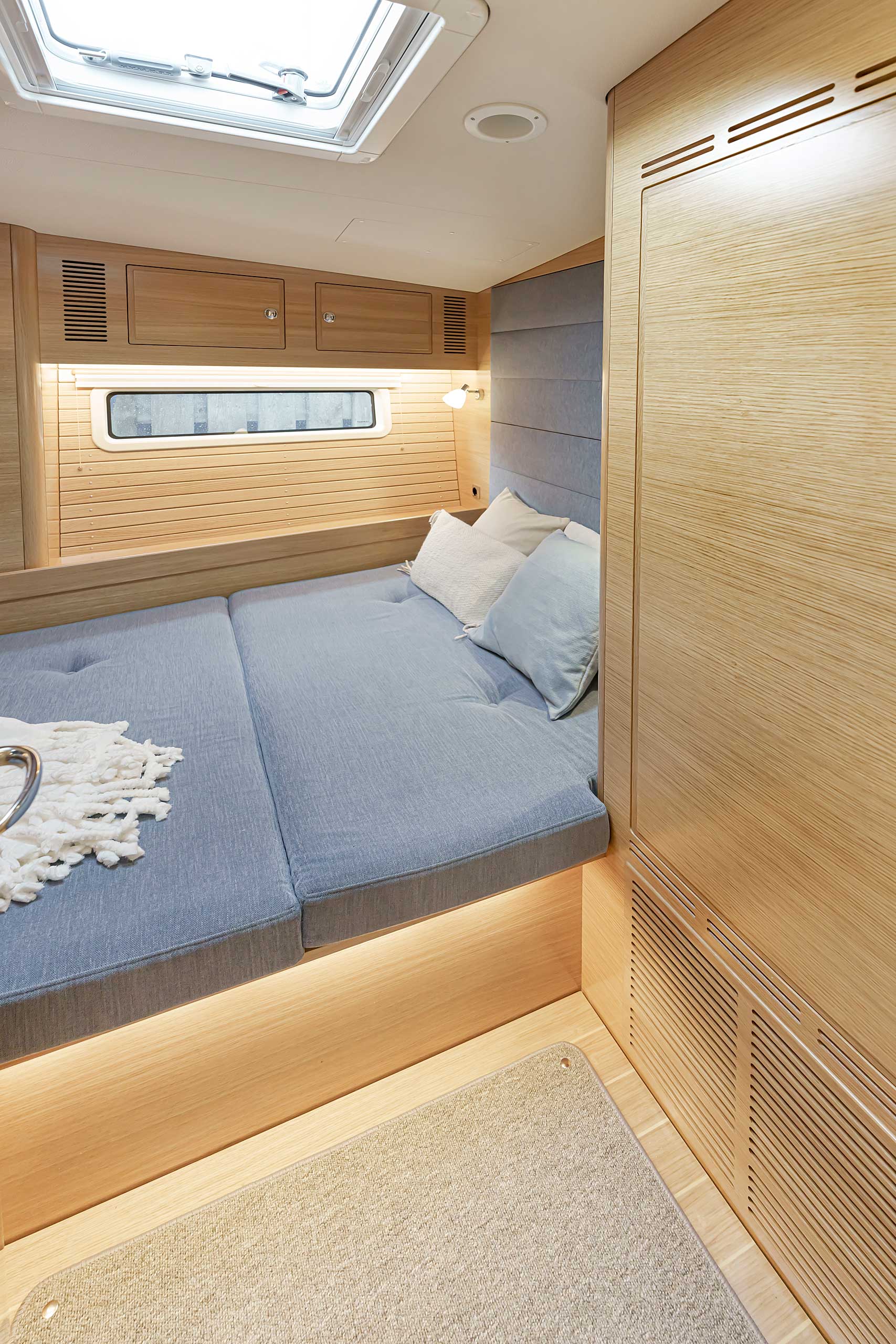

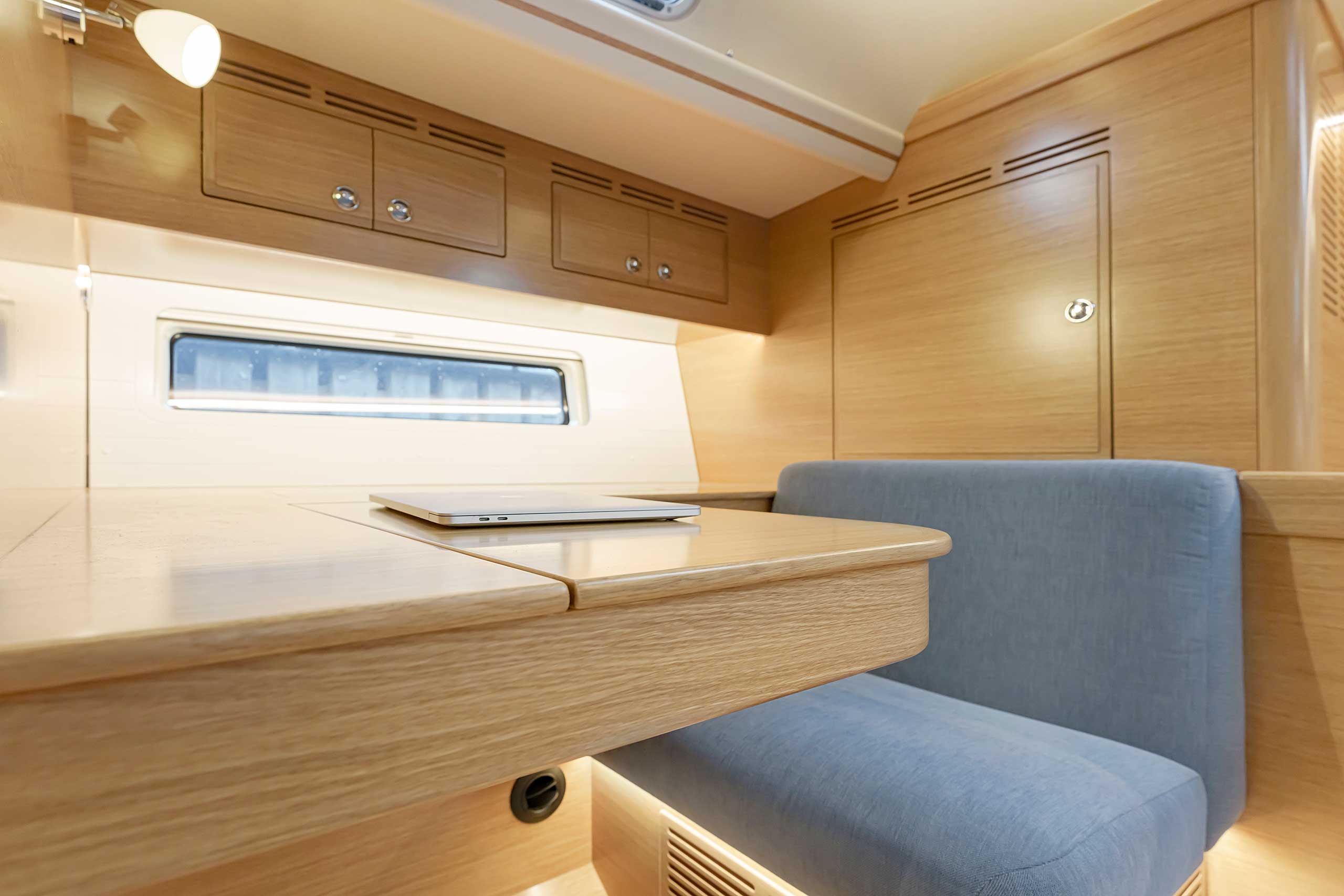

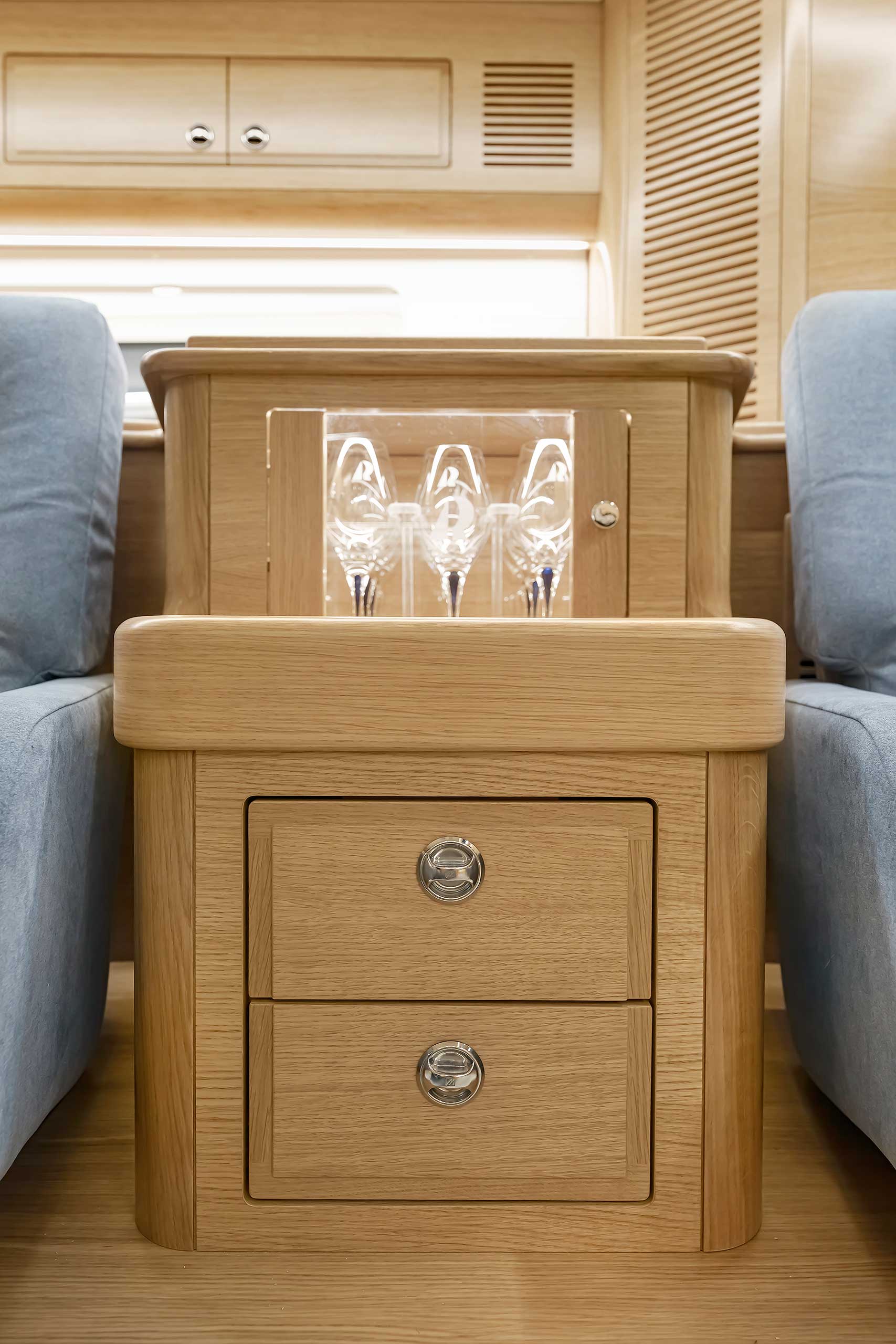

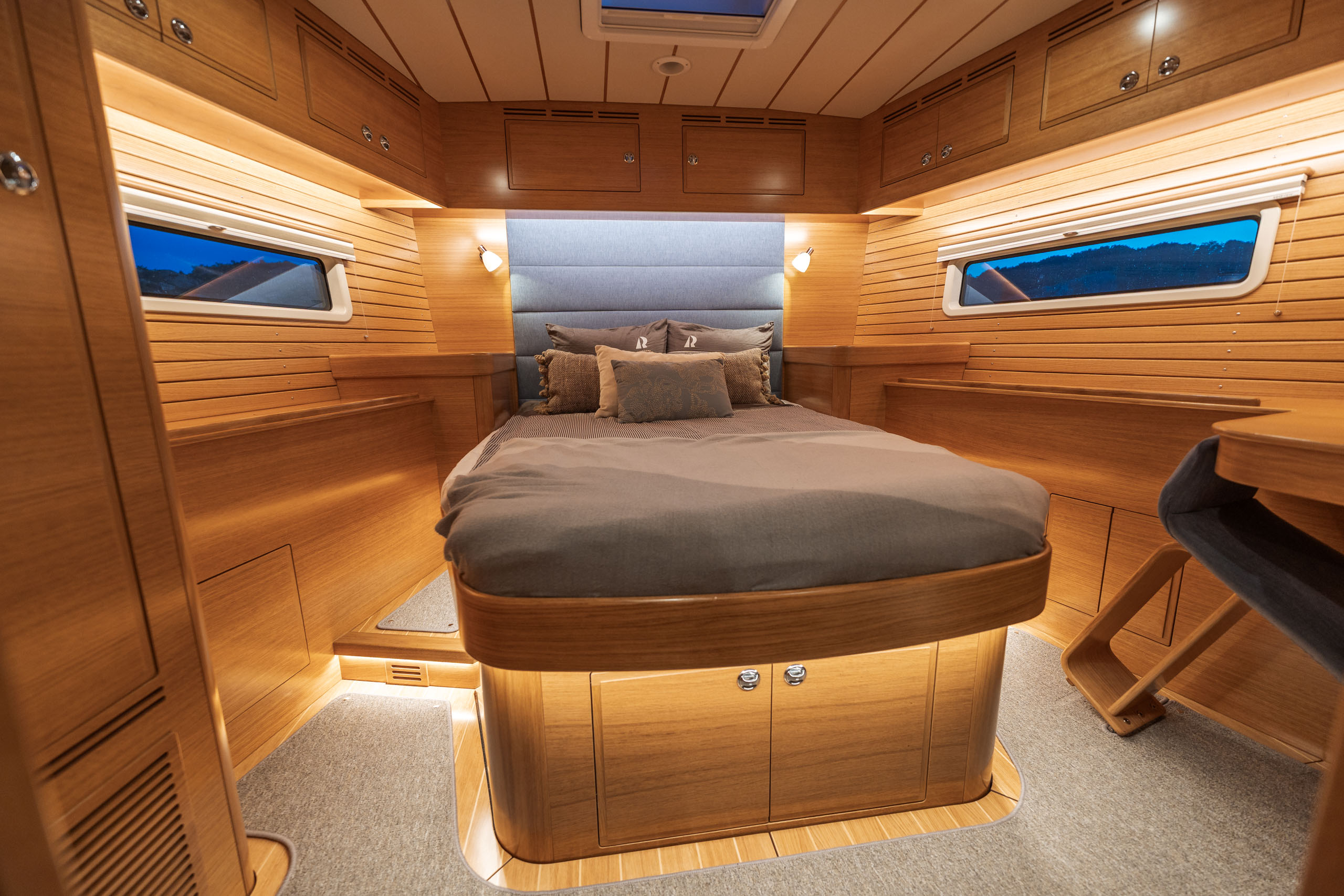

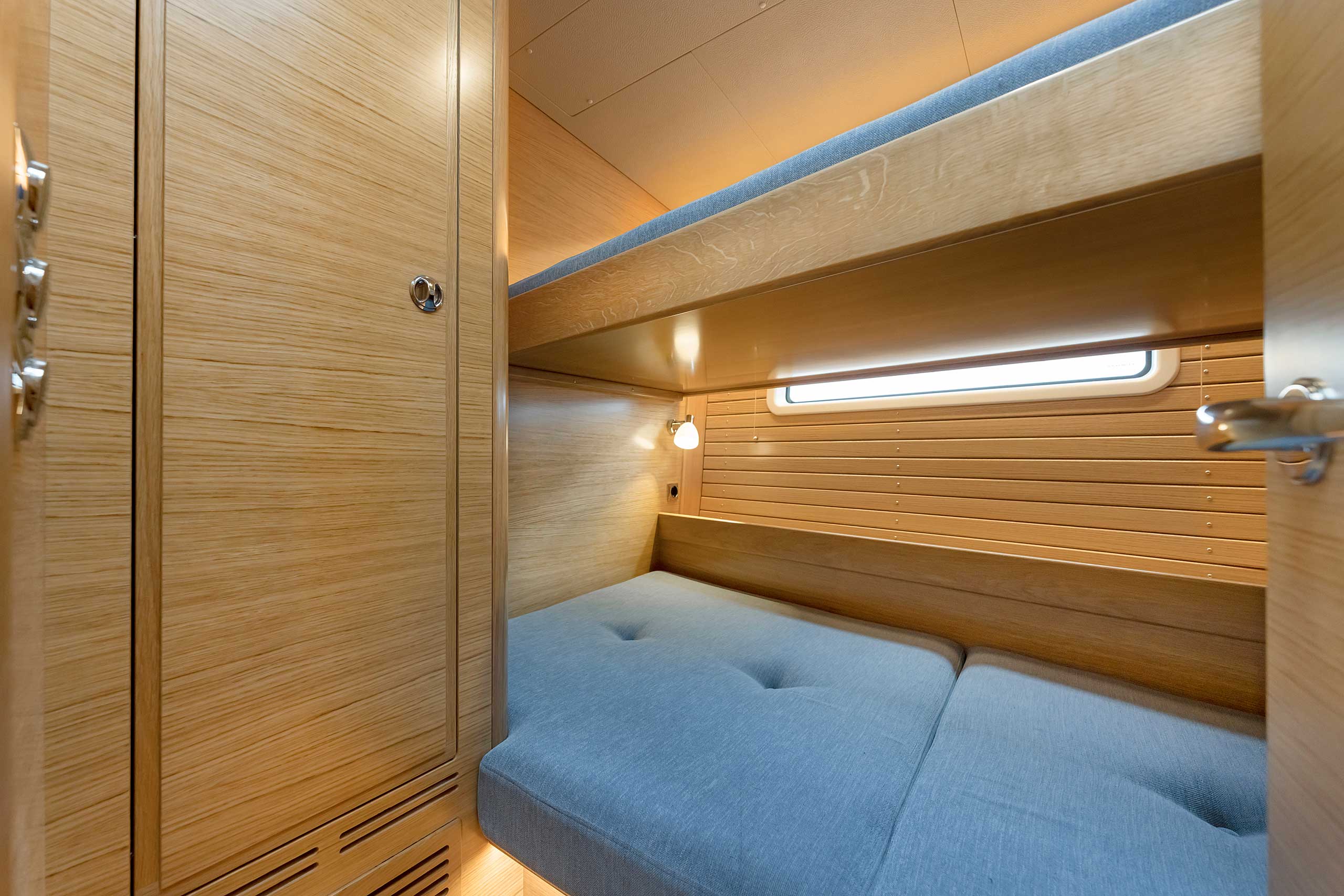

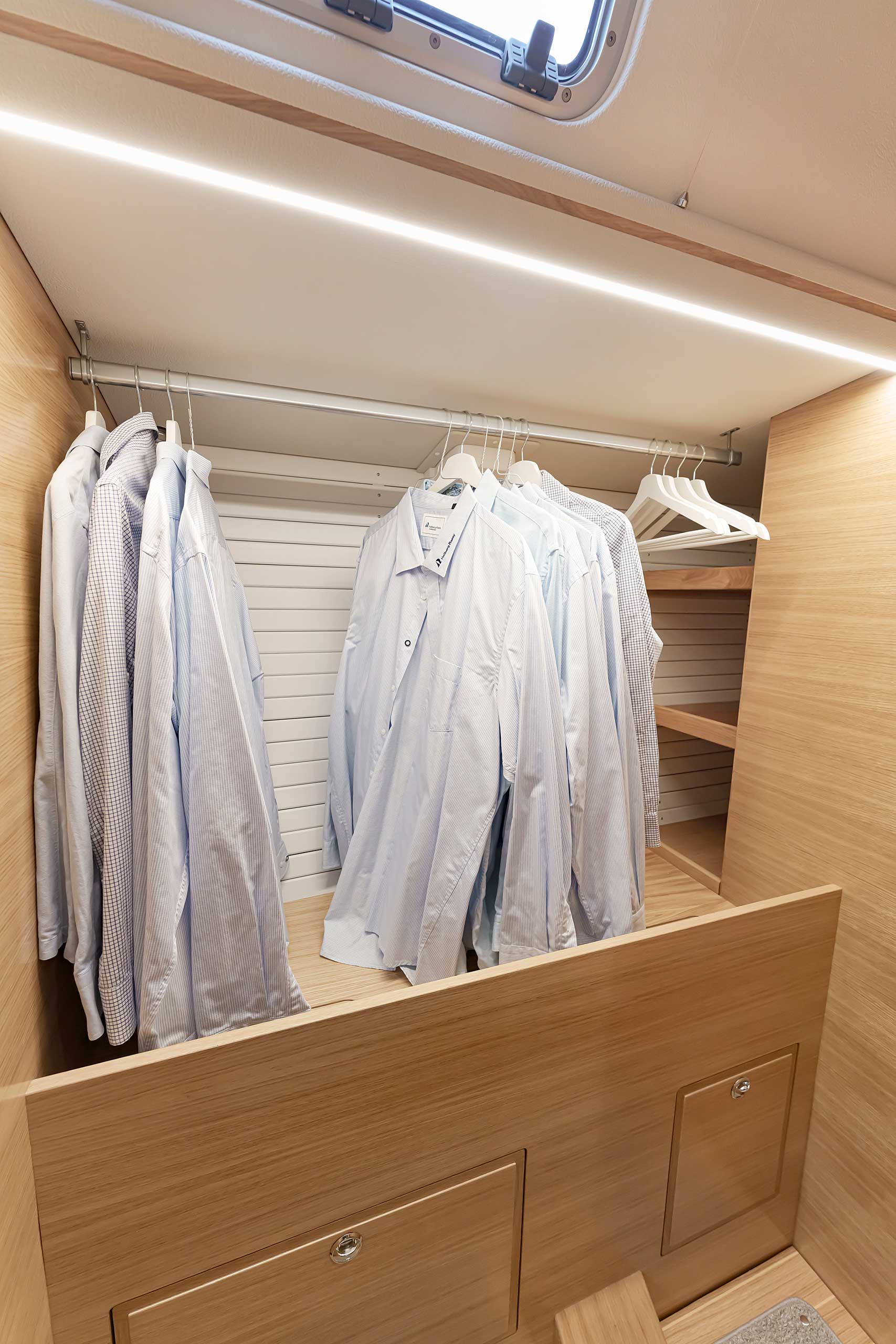

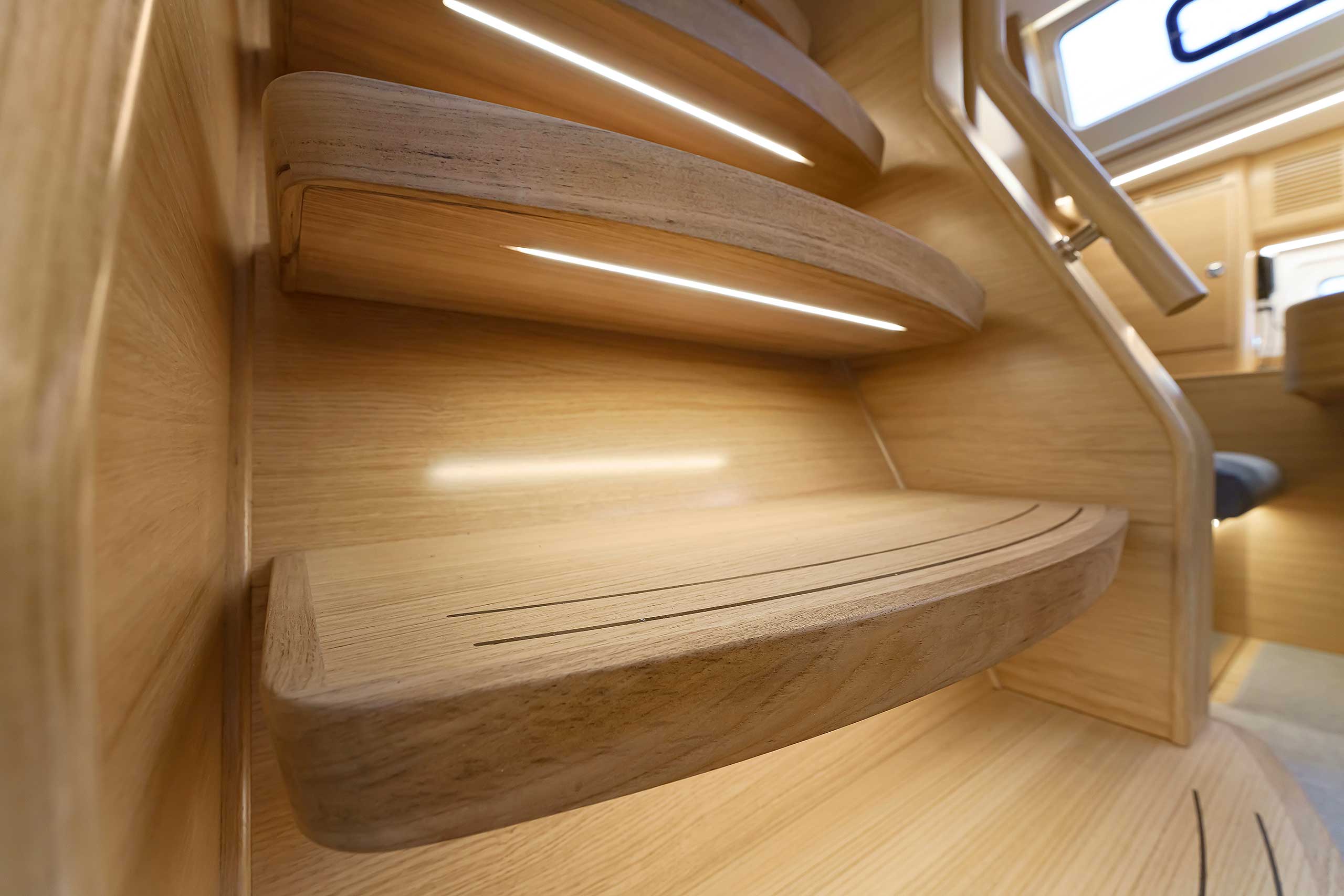

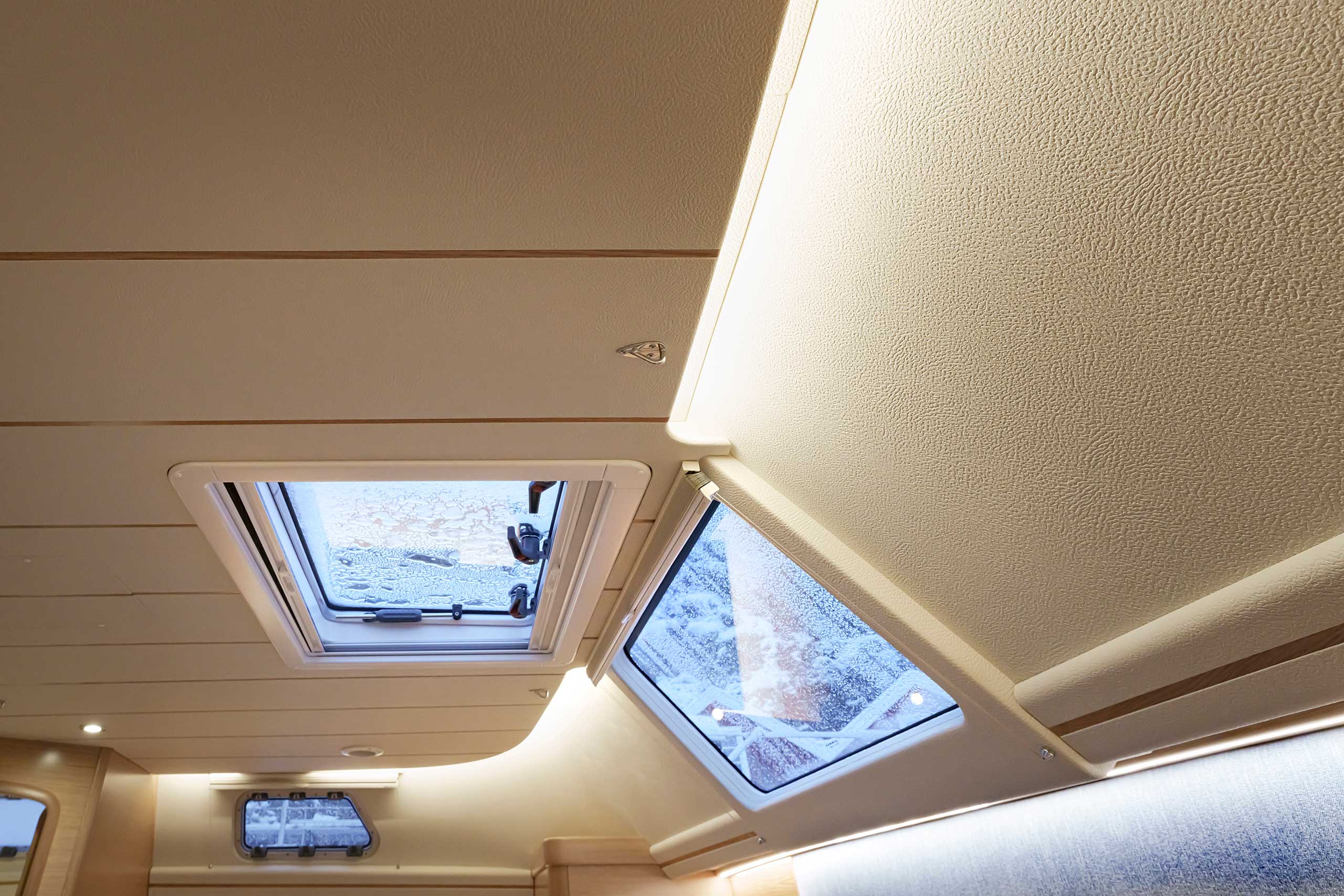

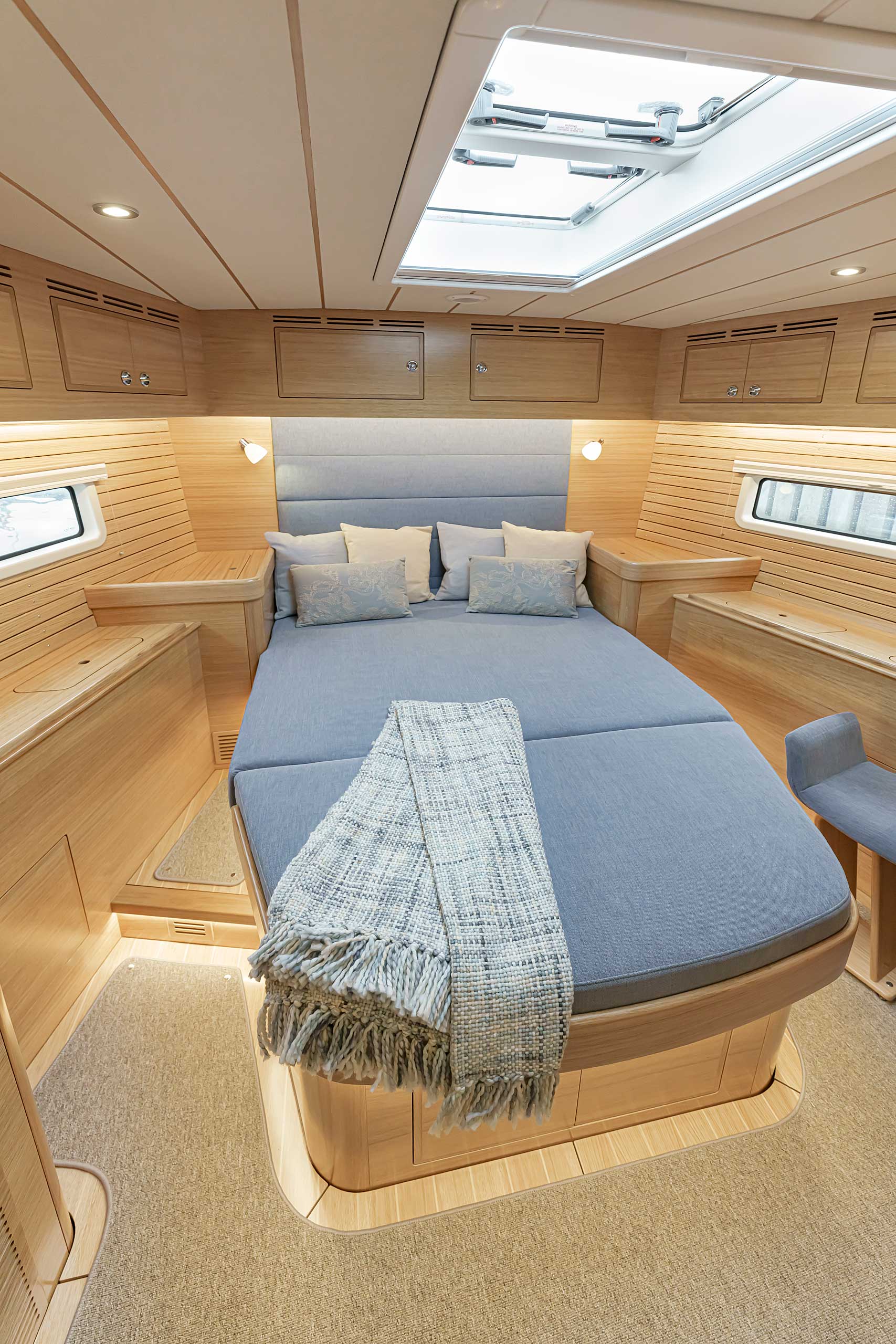

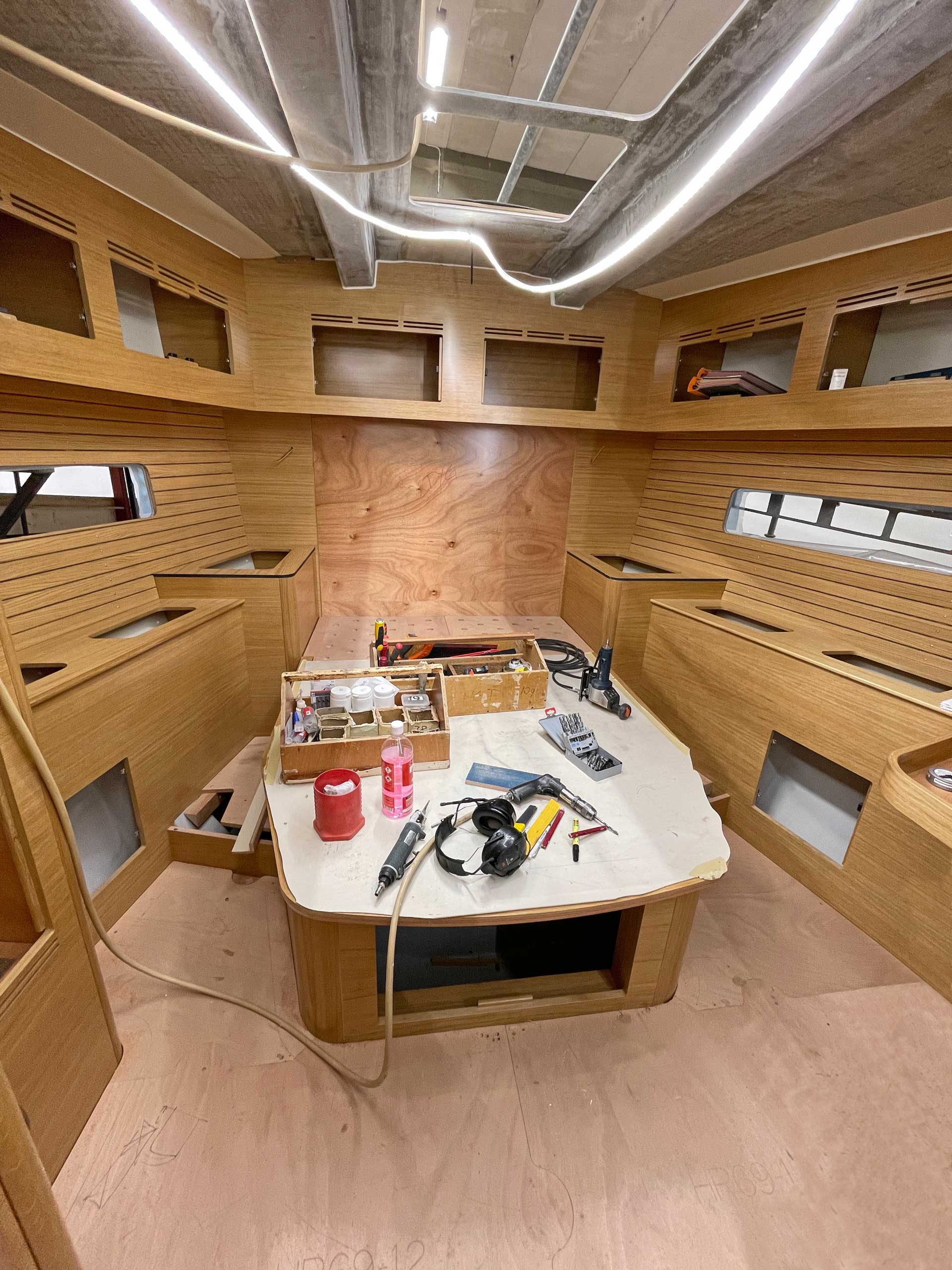

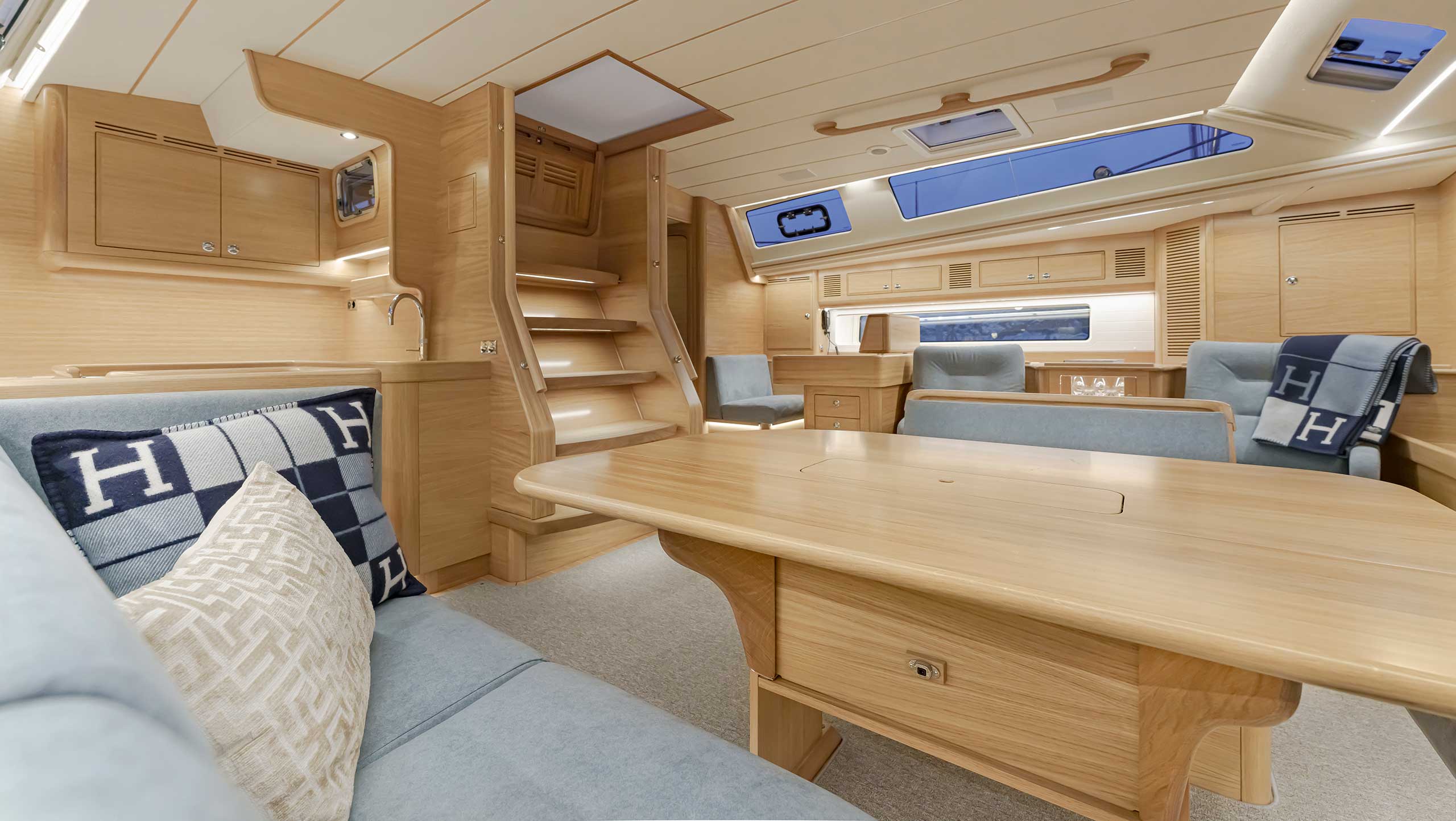

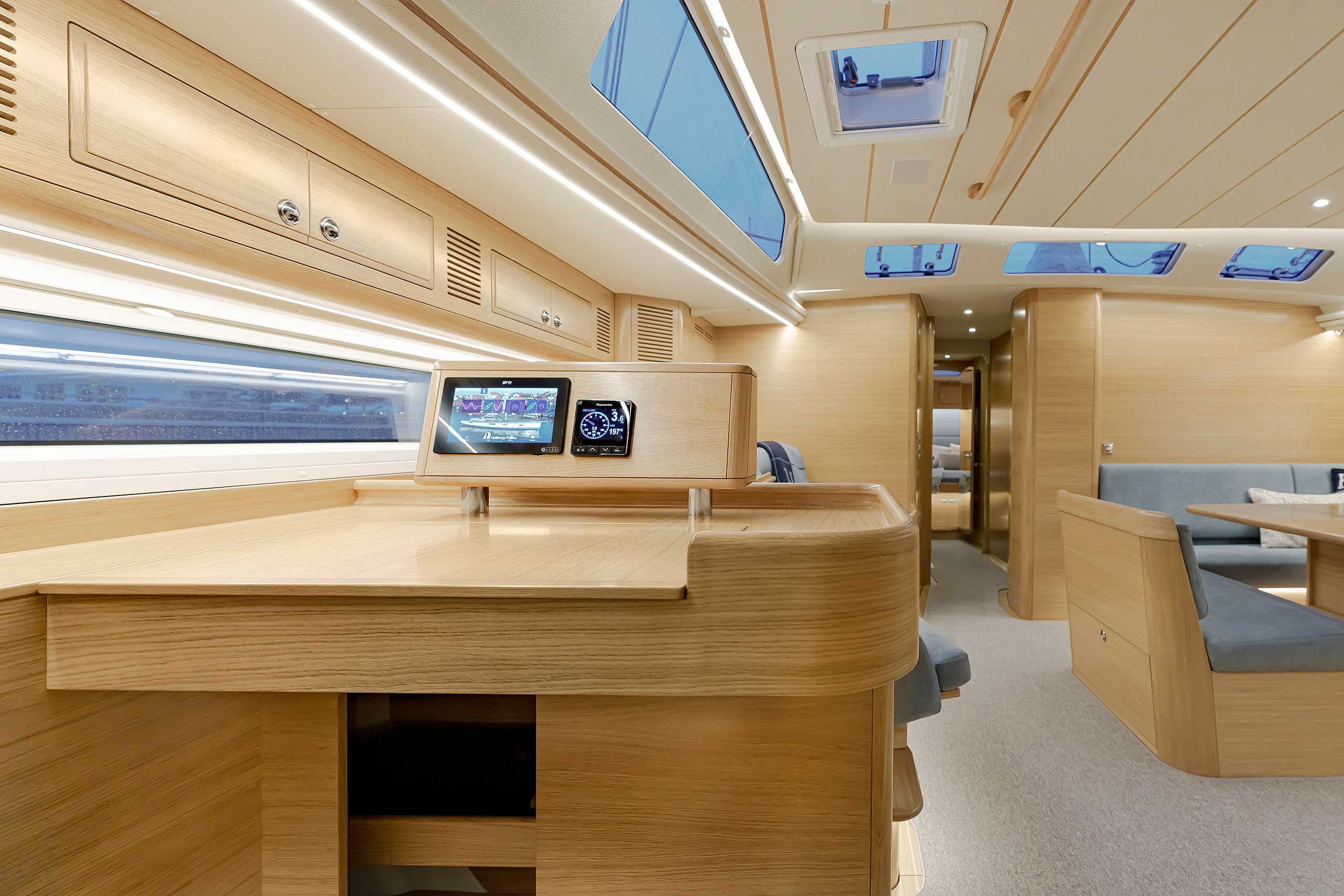

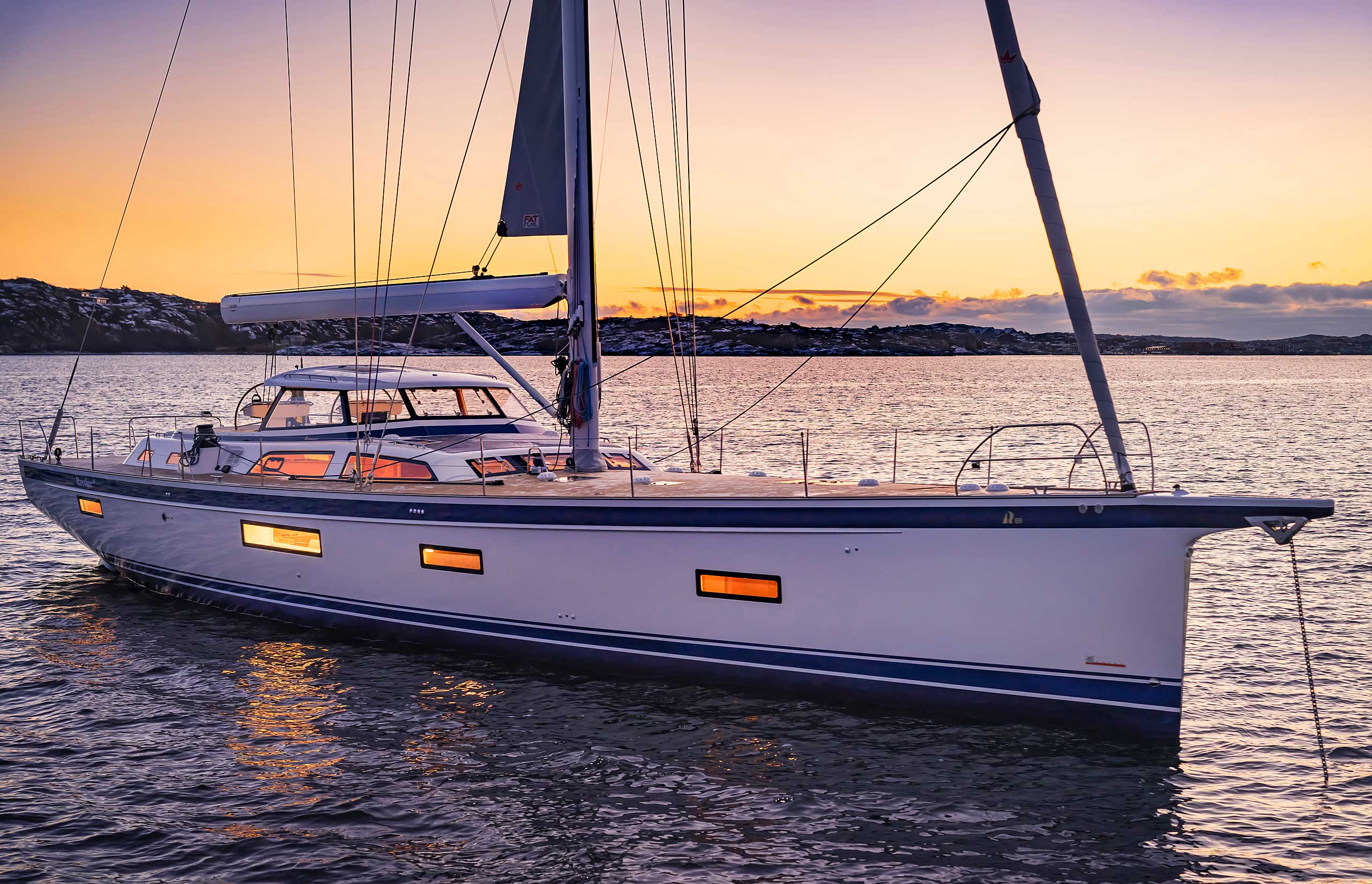

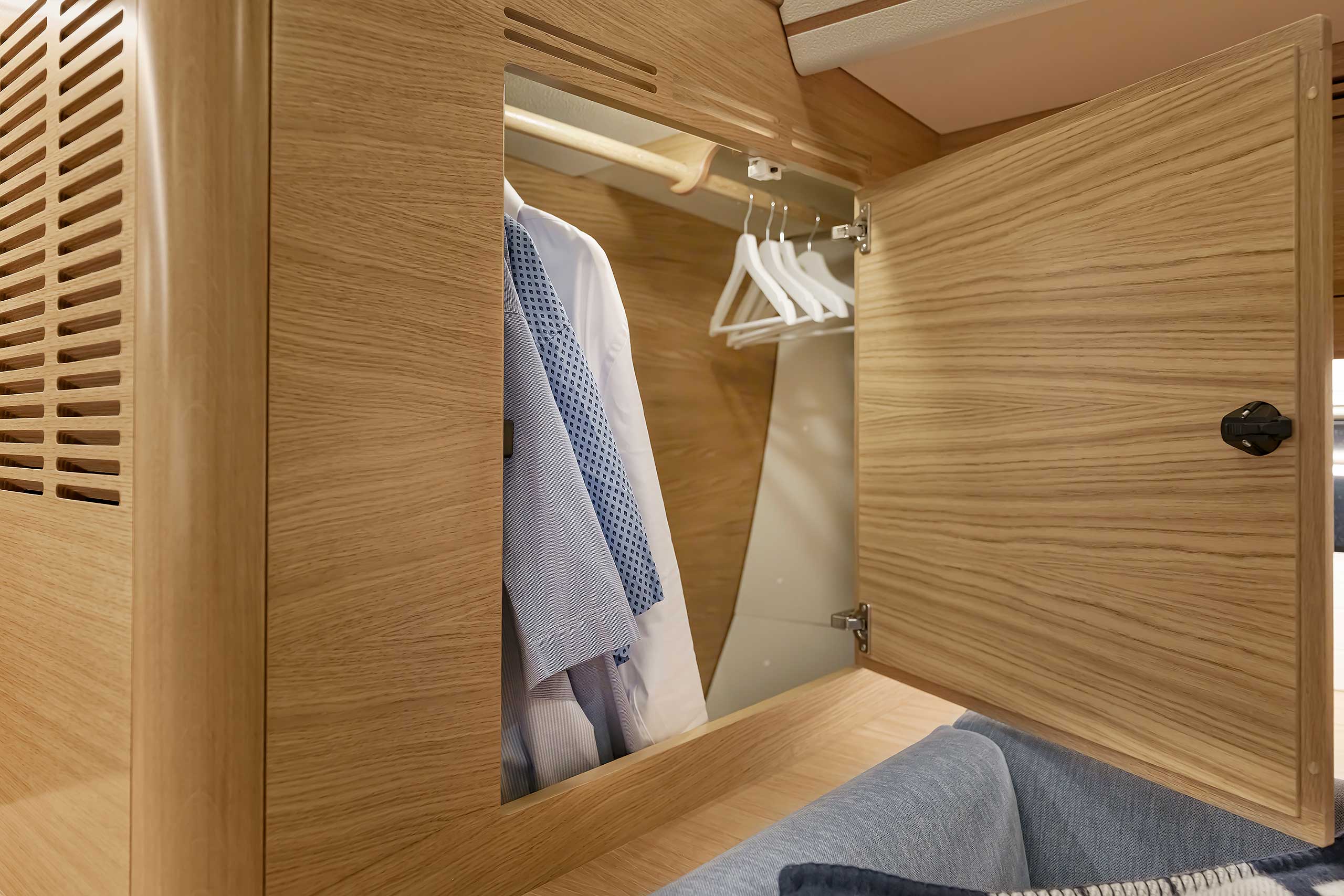

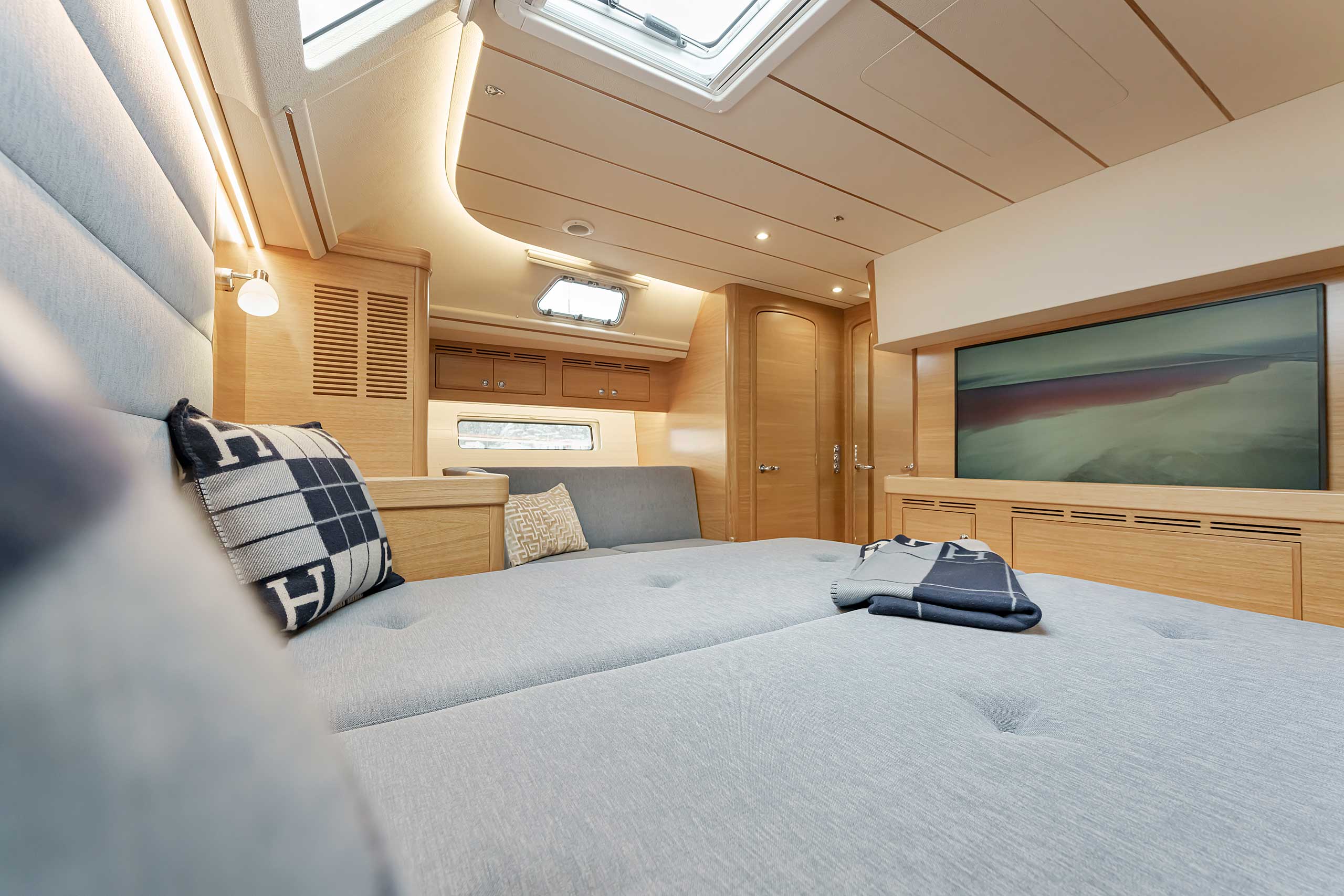

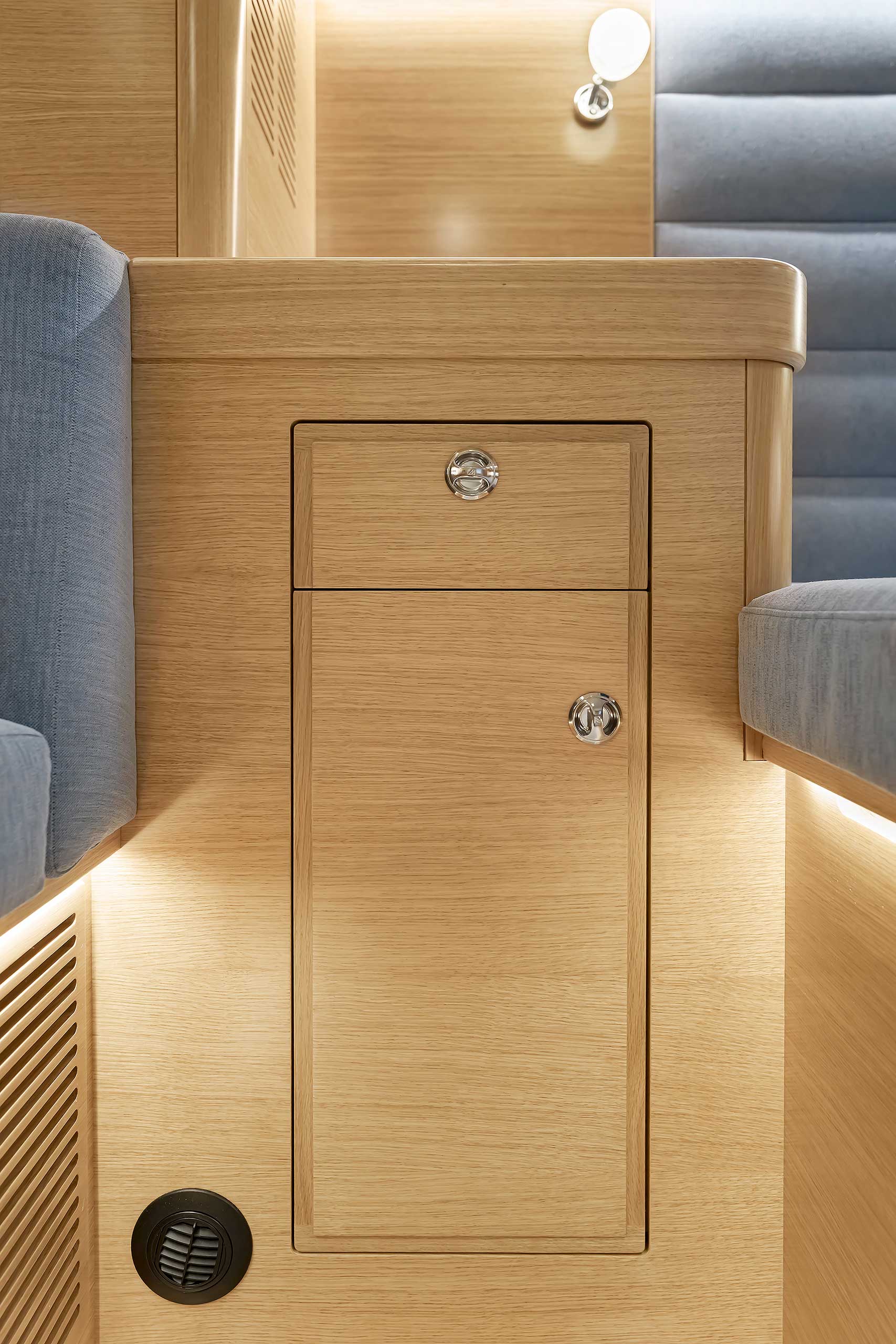

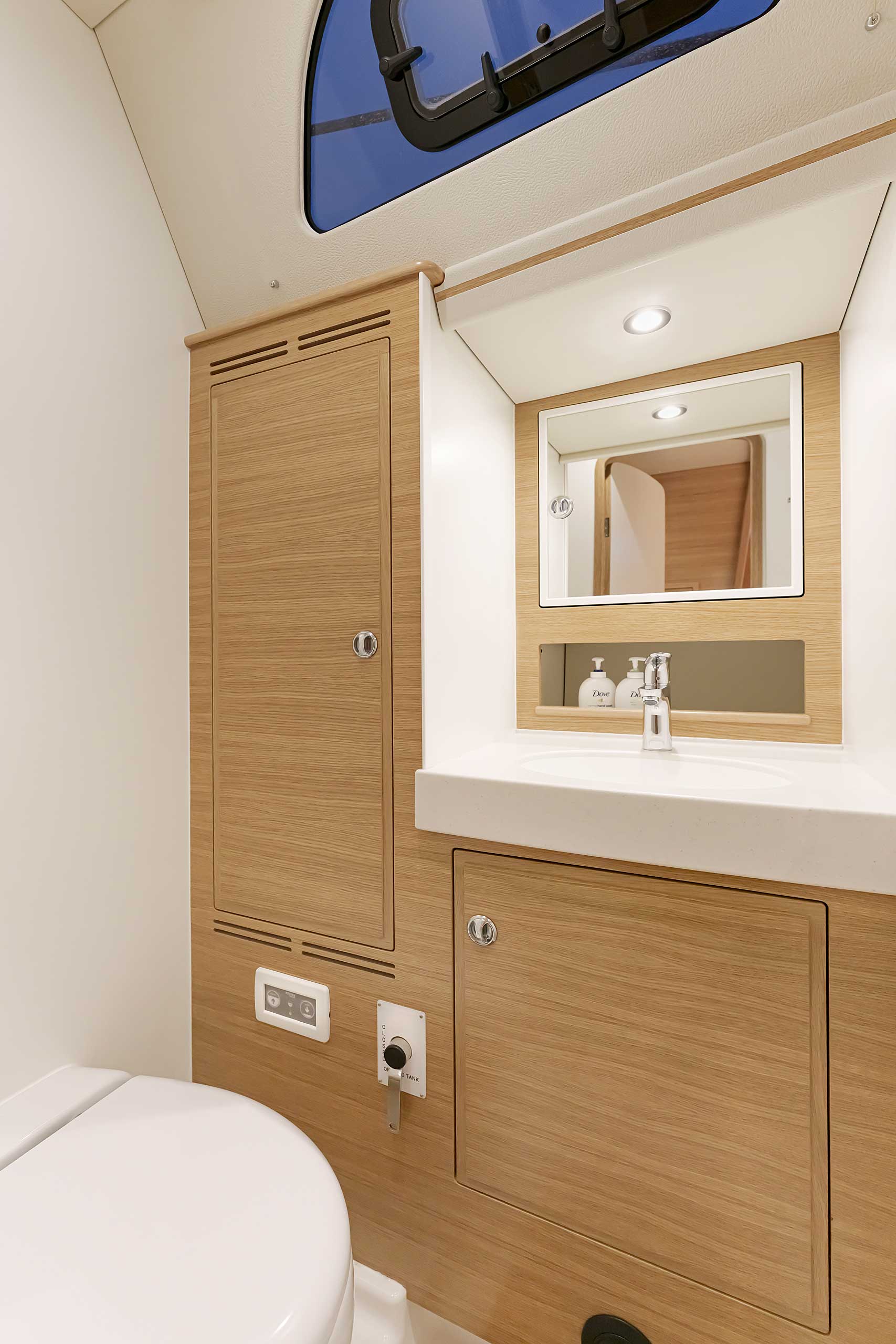

The interior is located on one level from bow to stern, important for moving freely, whether it is while sailing or at anchor or in port. There is an unusual amount of natural light, with eight hull portlights. You sit in the saloon and look out through the large hull portlights. They provide full contact with the outside world, while blinds can easily be pulled on if transparency or sunlight is not desired. A person of normal height looks upright through the large saloon portlights. The interior design options enables a walk-in closet, a cabin for a deckhand, and VIP guest cabins.
The engine is unusually well-dimensioned, even for a Hallberg-Rassy. It is a 6-cylinder Volvo Penta D6-300 of 300 hp with a high and flat torque with an increadible 790 Newton meters of torque at 2,100 rpm.

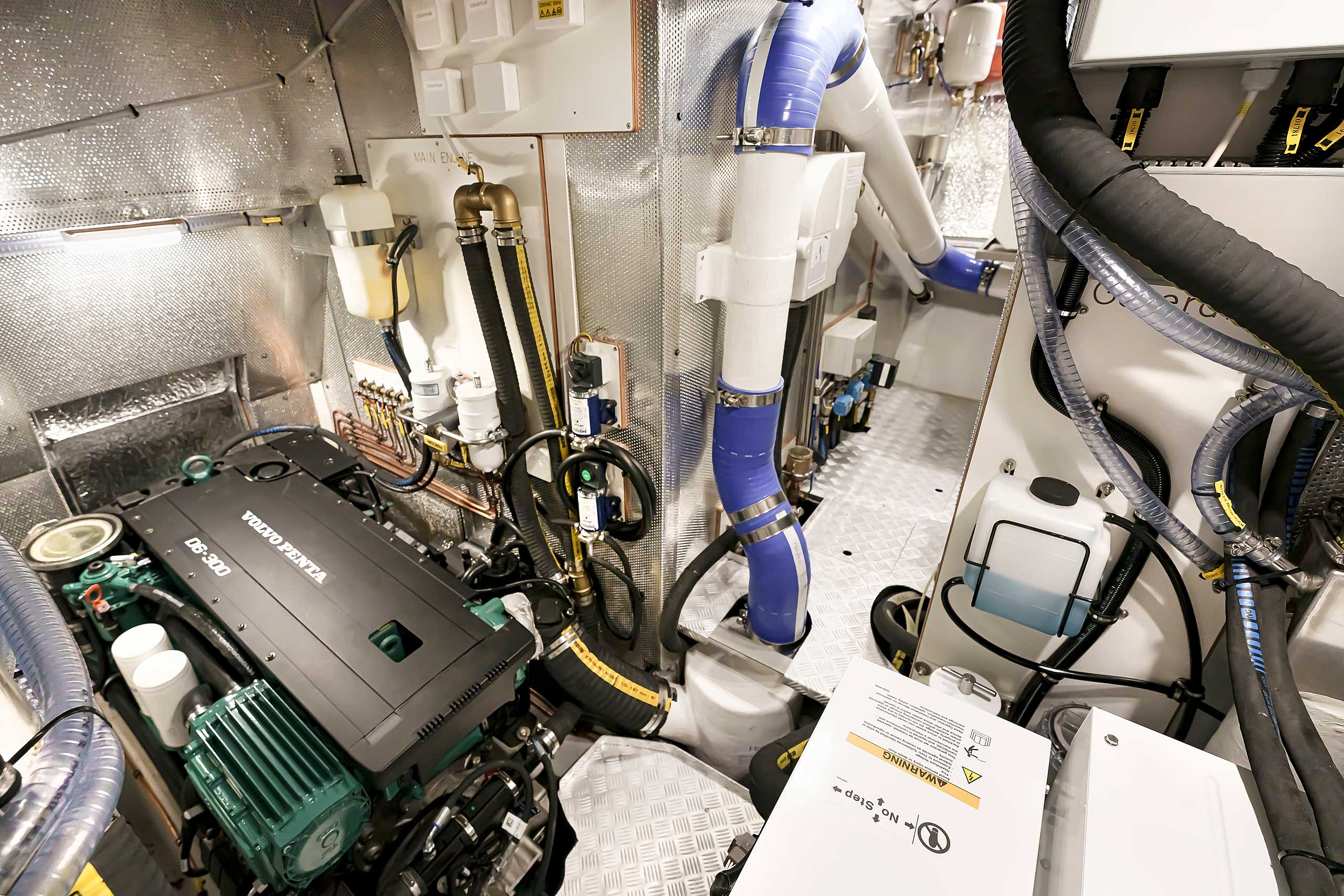

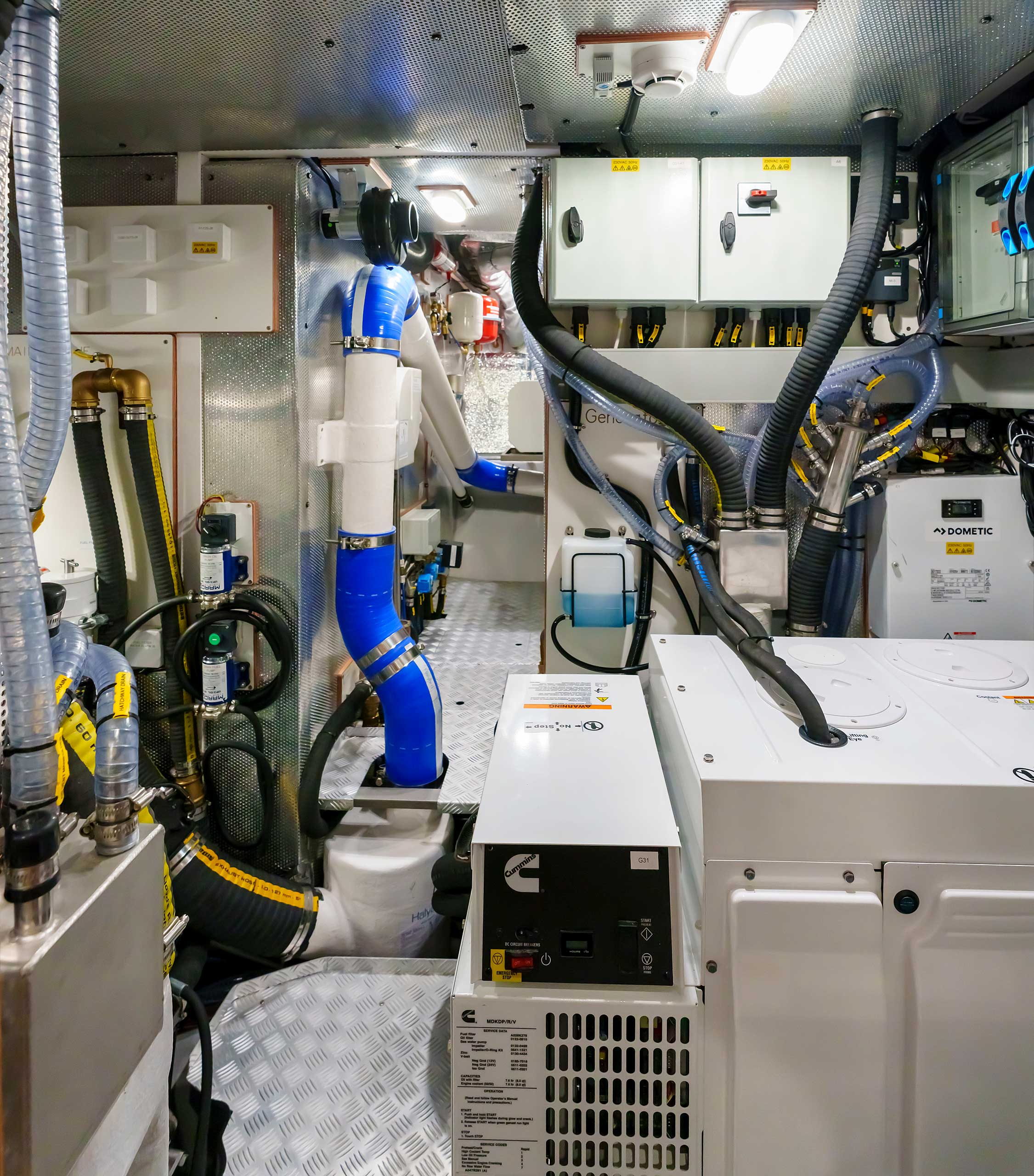

The engine room is large and has room for lots of technical equipment. It is also well sound insulated and easily accessible for service and maintenance.
The first Hallberg-Rassy 69 will sail in the winter of 2023/2024.
|Designer||Germán Frers Naval Architecture|
|CE category||A - Unlimited ocean voyages|
|Hull length||20.96 m / 68’ 9”|
|Maximum length||22.22 m / 72’ 11’’|
|Waterline at rest||19.70 m / 64’ 8’’|
|Beam without rubrail||5.89 m / 19’ 4”|
|Draught, empty standard boat||2.70 m* / 8’ 10” *|
|Displacement, empty standard boat||46.5 t / 102 500 lbs|
|Keel weight||17.3 t / 38 140 lbs|
|* Also available as a shallow draught version|
|Standard sail area with genoajib||224.4 m² / 2 415 ft²|
|Sail area, optimized main and genoajib||257.4 m² / 2 771 ft²|
|Air draft, ex Windex||31.3 m / 102’ 8’’|
|Engine||Volvo Penta D6-300|
|Power at crank shaft||221 kW / 300 HP|
|Transmission||Hydraulic with shaft|
|Number of cylinders||6|
|Engine displacement||5.5 liters|
|Diesel||2 200 l / 581 US gallon|
|Fresh water||1 700 l /449 US gallon|
